SKU: Wilton WL9-11695
UPC: 662755100185
Weight: 45

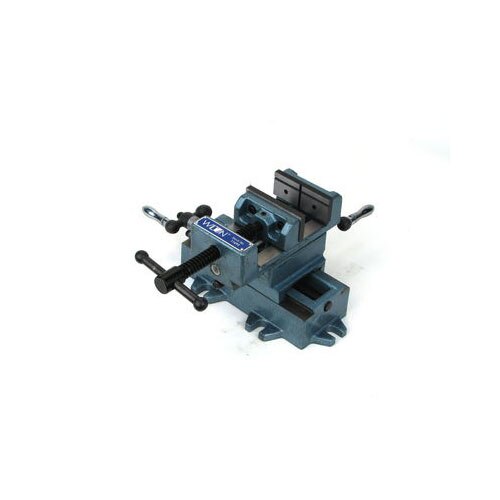

Wilton WL9-11695 5" Cross Slide Drill Press Vise
Details
Wilton 11695 Description
Wilton's cross slide drill press vises allow repeat drills or taps in a workpiece by sliding in 2 axes. All boast hardened v-grooved jaws for clamping round objects vertically and horizontally. Backed by Wilton's lifetime warranty.
Wilton 11695 Includes
- (1) 5" Cross Slide Drill Press Vise
Wilton 11695 Features
- Accurately moves your workpiece in horizontal and longitudinal for precise positioning
- Cast side knobs accurately dial in .1mm increments
- Hardened V Grooved Jaws hold round shaped objects both vertically and horizontally
- Durable construction with fine grain cast iron castings
- Black oxide coated screw provides consistent clamping pressure
- Durable base has 5 bolt lugs for easy mounting on a machine table
Wilton 11695 Specifications
| Height | 6" |
| Length | 8.5" |
| Gross Weight | 45 lbs |
| Net Weight | 45 lbs |
| Width | 11.5" |
| Smooth Jaw Inserts # | 11695-01 |
| Opening Capacity Max | 5" |
| Jaw Depth | 1-1/2" |
| Jaw Width | 5" |
| X-Travel | 5-9/10" |
| Y-Travel | 5-9/10" |
