SKU: Powermatic PM9-1791250
UPC: 662755296871
Weight: 1106

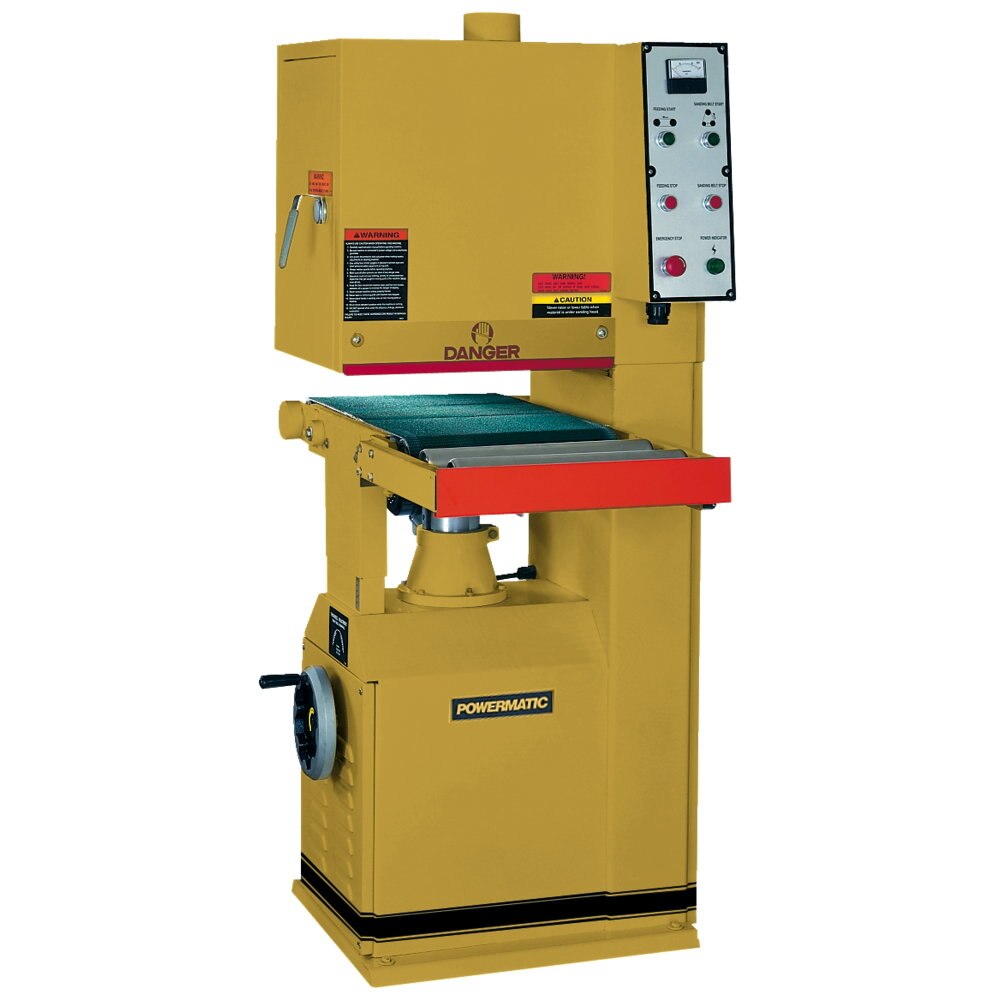

Powermatic PM9-1791250 1632 Open End Belt Sander, 5HP, 1Ph, 230V
Details
Powermatic 1791250 Description
The 16" Open-End Sander has front mounted controls and a load meter, which maintains a constant check during operation. Metal-tipped safety limiters inside the machine will stop the sander immediately should belt breakage occur. The combination head means a more consistent finish, and pneumatic conveyor belt tracking keeps belts automatically centered.
Powermatic 1791250 Features
- The combination head promotes a more consistent finish
- Pneumatic sanding belt tracking keeps belt centered
- Conveniently mounted load meter maintains constant check during operation
- Limiters will stop sander instantly if belt breakage occurs
- Side access door for easy belt changes
- Standard Equipment:
- 5HP motor
- Emergency rail stop
- Emergency stop button
- Dust collection port
Powermatic 1791250 Specifications
| Feed Motor Power (HP) | 1/4 |
| Sanding Belt Speed (FPM) | 2,200 |
| Style (Type) | Open End Belt |
| Motor Power (HP) | 5 |
| Motor Phase | 1 |
| Sanding Belt Size (In.) | 17 x 54 |
| Maximum Board Thickness (In.) | 5 |
| Maximum Board Width (In.) | 16 (32) |
| Dust Collection Minimum CFM Required (CFM) | 800 |
| Recommended Circuit Size (Amps.) | 40 |
| Dust Port Outside Diameter (In.) | 4 |
| Air Required | yes |
| Motor Voltage (V.) | 230 only |
| Minimum Board Length (In.) | 13-3/4 |
| Feed Rate (FPM) | 15/32.5 |
