SKU: Jet 717520
UPC: 731325424225
Weight: 235 lbs

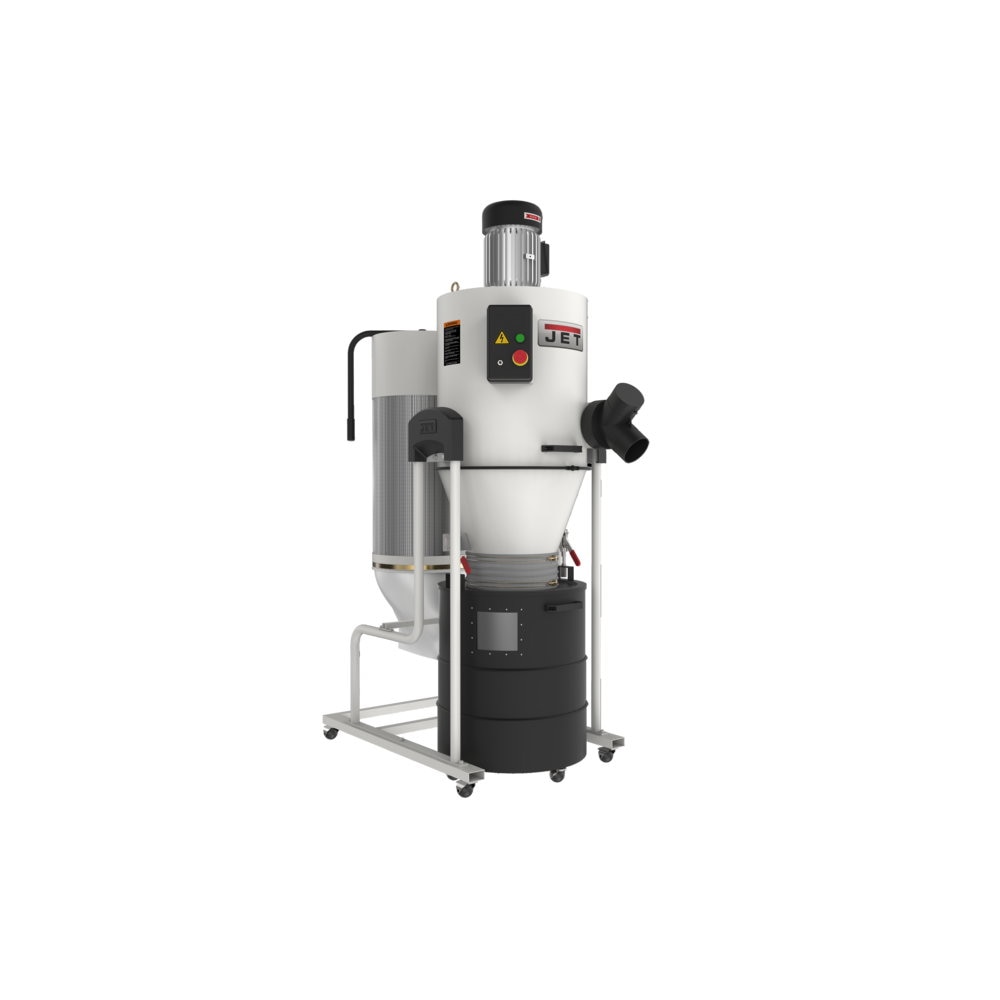

Jet 717520 JCDC-2 Cyclone Dust Collector, 2HP, 230V

List: $2,088.57 $1,699.99

You Save 19% ($388.58)

Manufacturer Shipped Estimated Shipping in 2 - 10 Days

Details

FEATURES:
• The cyclone's two stage separation provides more working CFM than comparable horsepower single stage units
• Heavy debris is pulled down to collection drum before debris stream reaches the filter, providing constant suction
• Direct mounted filter eliminates inefficiencies from ridged flex hosing and bends
• Fine dust particles are filtered through pleated material that captures even the smallest particles down to 1 micron and below
• Heavy debris is captured in a 30 gallon drum with quick release levers and independent casters for quick emptying
• Included radio frequency remote control works from up to 50 feet away
• Remote timer settings allows system to run for 2, 4, 6, or 8 hours before automatic shutoff
• Double paddle manual cleaning system quickly cleans the pleated filter
• Swivel casters make it easy to move the unit around the shop

SPECIFICATIONS:
• Prewired Voltage: 230 V
• Motor Power: 2 HP
• 1-Hose Connection Diameter: 6"
• Filter Efficiency (Micron): 1
• Impeller Diameter: 14-1/2"
• Motor Voltage: 230 V
• Air Flow @ 6": 1538 CFM
• Velocity @ 6": 7813 FPM
• Motor Phase (PH): 1
• Impeller Material: Steel
• Number of Air Inlets: 1 at 6", 2 at 4"
• Static Pressure (Wc.): 3.8
• Sound Rating: 76 Db
• 2-Hoses Connection Diameter: 4"
• Motor Amps: 9
• Collection Drum Capacity: 30 gal
• Max. Static Pressure (Wc.): 10.1
• Drum Collection Bag (Dia. x L/In.): 30-11/16 x 32-11/16
• Canister Collection Bag (Dia. x L/In.): 23-5/8 x 19-11/16
• Canister Filter Diameter: 14-9/16"
• Canister Filter Length: 22-5/8"
• Assembled Dimensions (L x W x H): 25-7/8" x 50-5/8" x 72-1/4"
• Footprint (L x W): 50-5/8" x 25-7/8"


Are you ready to get more from your dust collector? The Cyclone Dust Collector Collection from JET delivers the efficiency you’ve been waiting for. With a direct mount filter, a radio frequency remote control and a large collection bin these dust collectors take your shop’s capabilities to a new level. Upgrade to a JET Cyclone Dust Collector and experience The Power of Efficiency.
