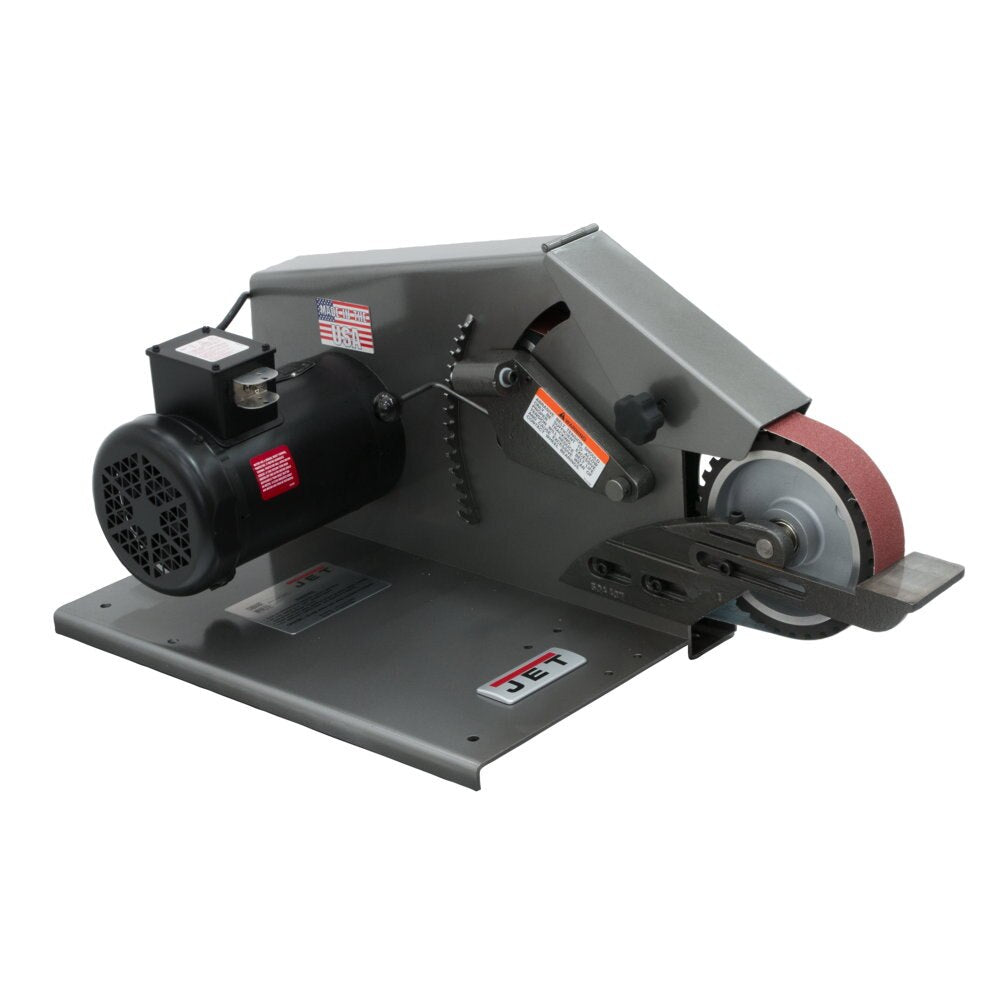

Jet JT9-577000 J-4103 2 x 72 Square Wheel Belt Grinder 115V 1PH

List: $2,549.00 $2499.00
+ Free Shipping!

Manufacturer Shipped Estimated Shipping in 2 - 14 Days

Details

Jet 577000 Description

The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Belt Grinder, Models J-4103 and J-4126AC, grind, deburr and chamfer with equal proficiency both internal/external on parts large and small parts. Accessories allow the user to convert the Square Wheel Belt Grinder for polishing or buffing finished parts

Jet 577000 Features

  • MADE IN THE U.S.A.
  • Puts a satin finish on steel, iron or aluminum
  • Grind difficult to reach areas with the 3" X 2" or 1-1/2" X 2" diameter contact wheels
  • Yoke surface conforms to shape of the surface to produce an even, smooth finish
  • For grinding, and refinishing cylindrical shapes.
  • Performs intricate contouring or internal finishing on uniquely shaped parts
  • Serrated contact wheel is used for removing heavy stock, cleaning up a weld or snagging a casting

Jet 577000 Specifications

Style (Type) Belt
Weight (Lbs.) 163
Belt Speed (SFPM) 4,600
Contact Wheel Size (W x L) (In.) 8 x 2, 3 x 2, 1-1/2 x 2
Belt Size (W x L) (In.) 2 x 72
Motor (HP) 1 HP, 115/230V, 1Ph
Overall Dimensions (L x W x H) (In.) 17 x 31 x 17
