Part Number: 287601 UPC: 731325473421 Weight: 73.91

Description

FEATURES:

• Safety

• Patented brake wear indicator provides visual indication when to replace worn friction disks

• Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security

• Industrial rated alloy steel hooks rotate 360 degrees for easy rigging

• Hooks slowly stretch to indicate an overload situation increasing jobsite safety

• Durability

• Cast steel safety latches are secured with Allen screws and lock nuts

• Grade 80 black oxide coated for added durability

• Needle bearing design increases efficiency and promotes smooth operation

• Impact resistant all steel construction for added durability and protection



SPECIFICATIONS:

• Number of Falls: 2

• Lift per Turn (In.): 1/3

• Load Capacity (Tons): 6

• Load Chain Dimensions (Mm.): 10 x 30

• Lever Pull Force (LBF): 77

• Weight (Lbs.): 72

• Ship Yard Hooks: SV_1375591258806

• Lift (Ft.): 10

• Headroom (In.): 24-2/5

• Handle Length (In.): 16-1/7

• Overload Protection: No

• Hook Throat Opening (In.): 3

• Overall Width (In.): 7-7/8

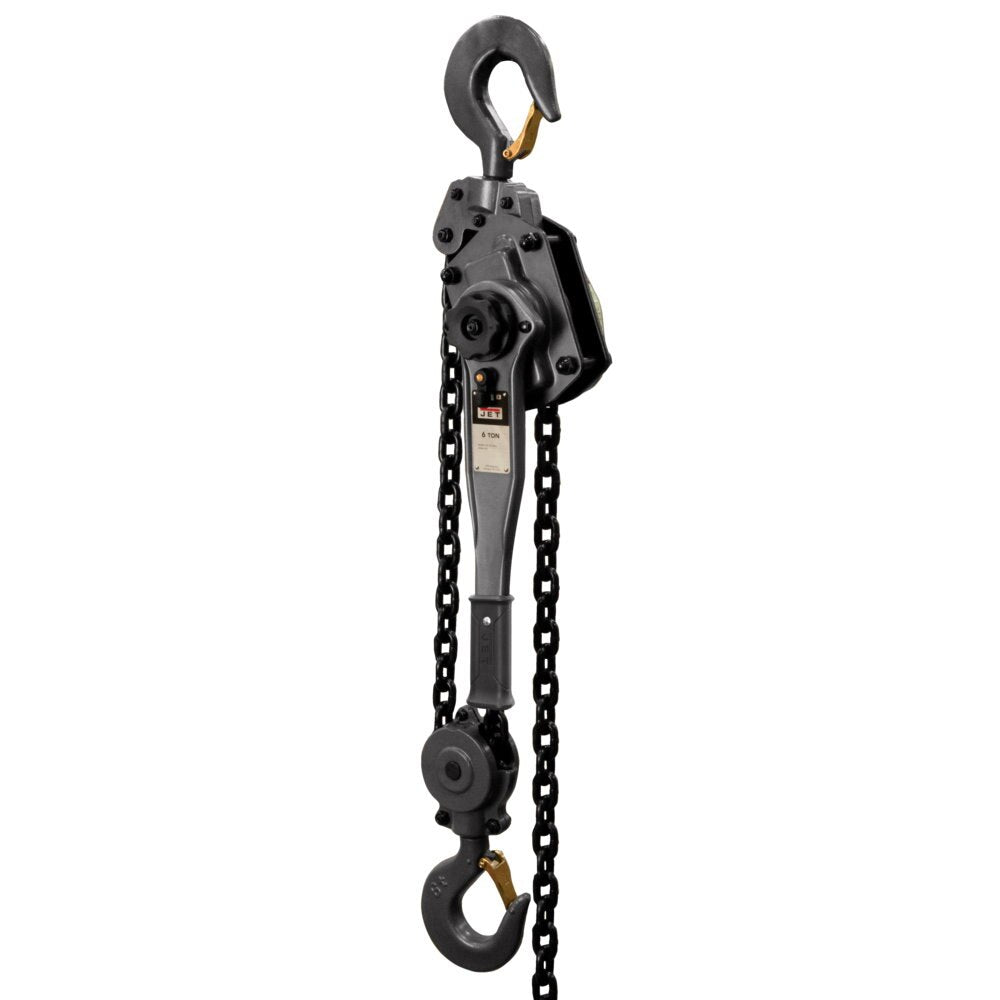

JET® JLP-A Series lever hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade lever hoist.
