SKU: Jet JT9-101930
UPC: 731325218916
Weight: 43

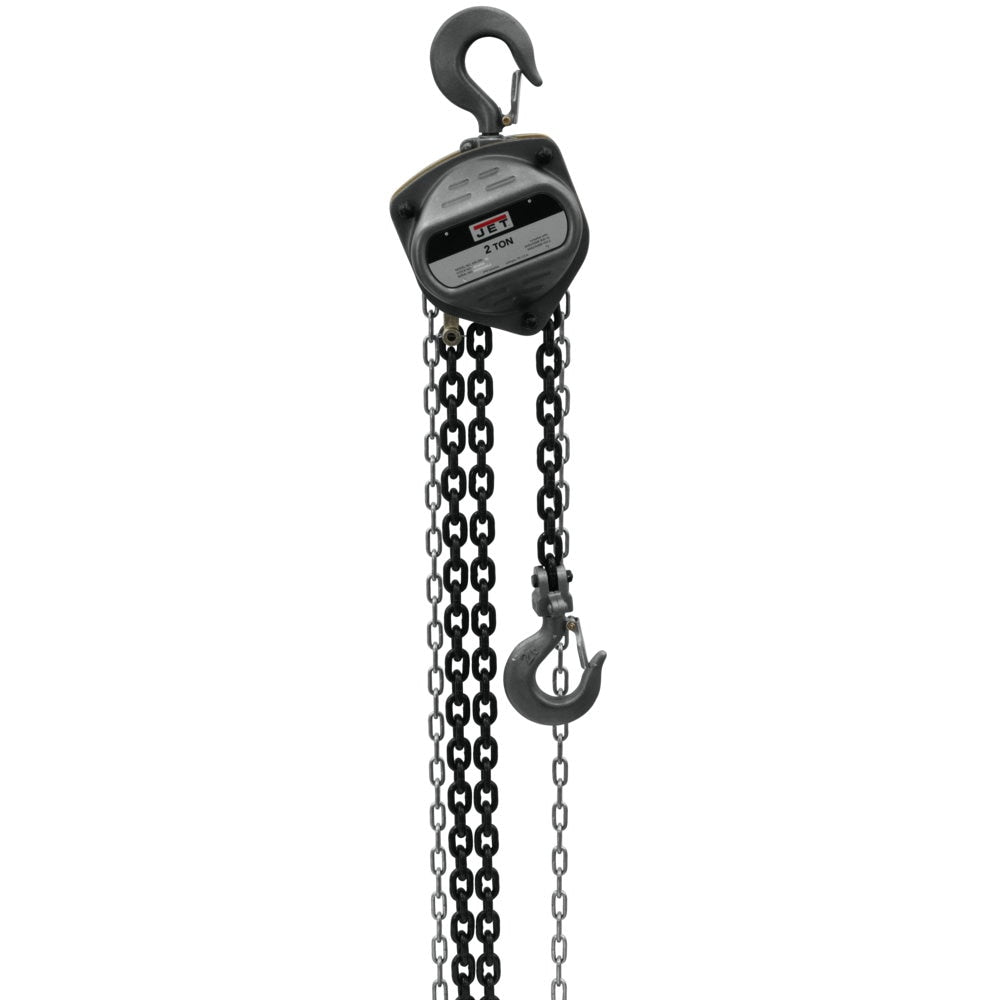

Jet JT9-101930 S90-200-10, 2-Ton Hand Chain Hoist With 10' Lift
Details
Jet 101930 Description
JET® S90 Series hand chain hoists were designed with reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.
Jet 101930 Features
- Safety
- Weston Style Dual Pawl Brake System- Double pawl design increases safety
- Alloy Steel Hooks- Industrial rated hooks rotate 360 degrees for easy rigging. Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Durability
- Needle Bearing Design- Promotes long hoist life with low wear reducing downtime
- Heat Treated Load Plates- Heat treated, case hardened and corrosive resistant coated internal parts extend the life of the hoist in the harshest of environments
- Grade 80 Load Chain- Grade 80 black oxide coated load chain for durability
- All Steel Construction- Impact resistant covers that provide durability and protection
- Compact Design- Smaller body and lightweight design for low headroom applications and use in confined areas
- Standards
Jet 101930 Specifications
| Hand Chain Overhaul (Ft.) to Lift Load 1Ft. | 71 |
| Overload Protection | No |
| Hand Chain Pull Force (LBF) to Move Load | 91 |
| Headroom (In.) | 17-1/2 |
| Lift (Ft.) | 10 |
| Number of Falls | 1 |
| Load Capacity (Tons) | 2 |
| Load Chain Dimensions (Mm.) | 8 x 24 |
| Weight (Lbs.) | 52 |
