SKU: Greenlee DM-860A
UPC: 783310129387
Weight: 2.375 lbs

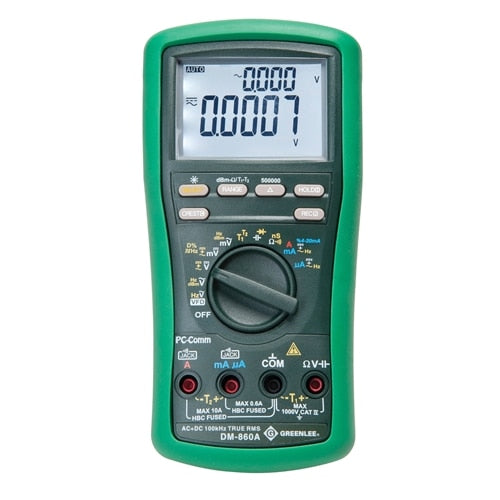

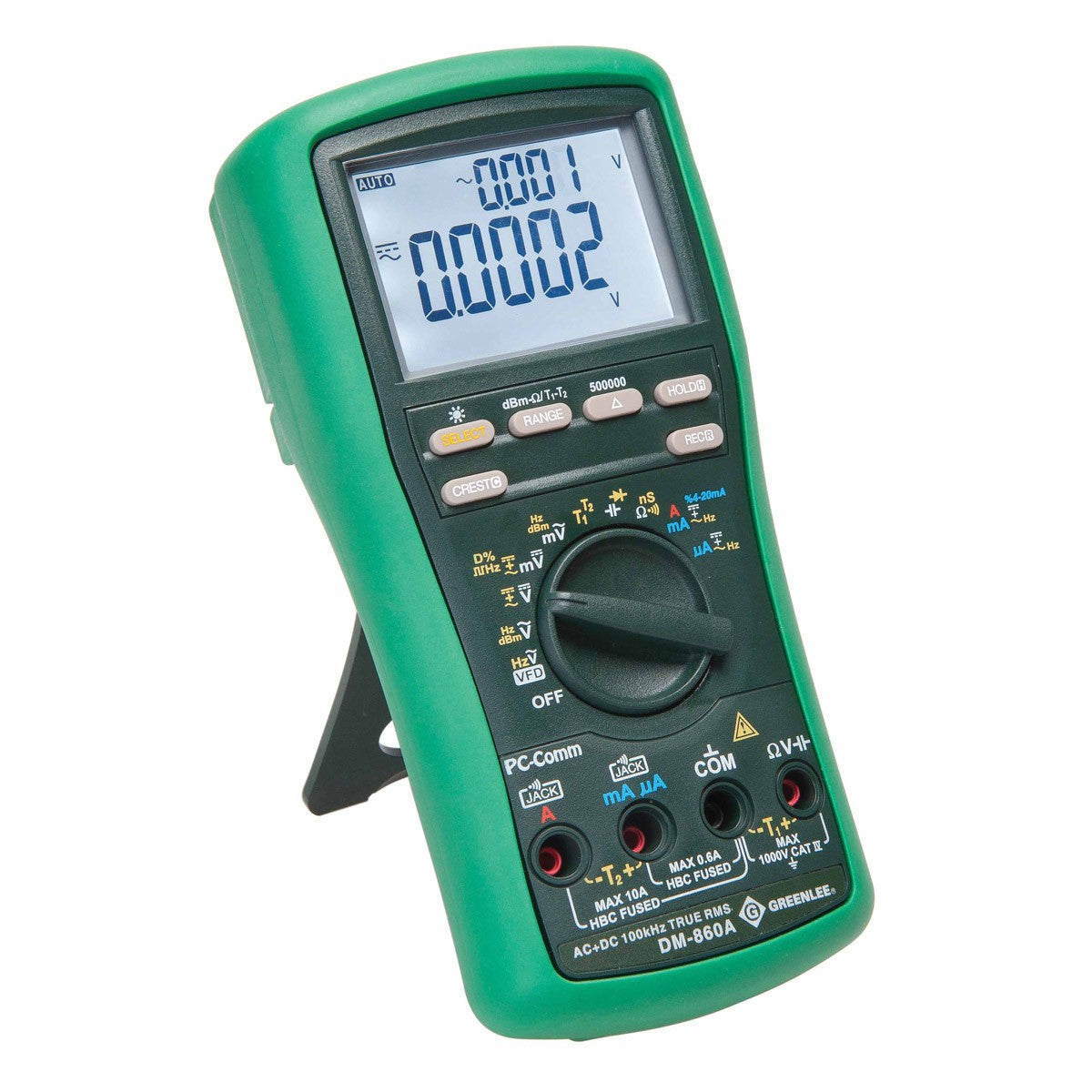

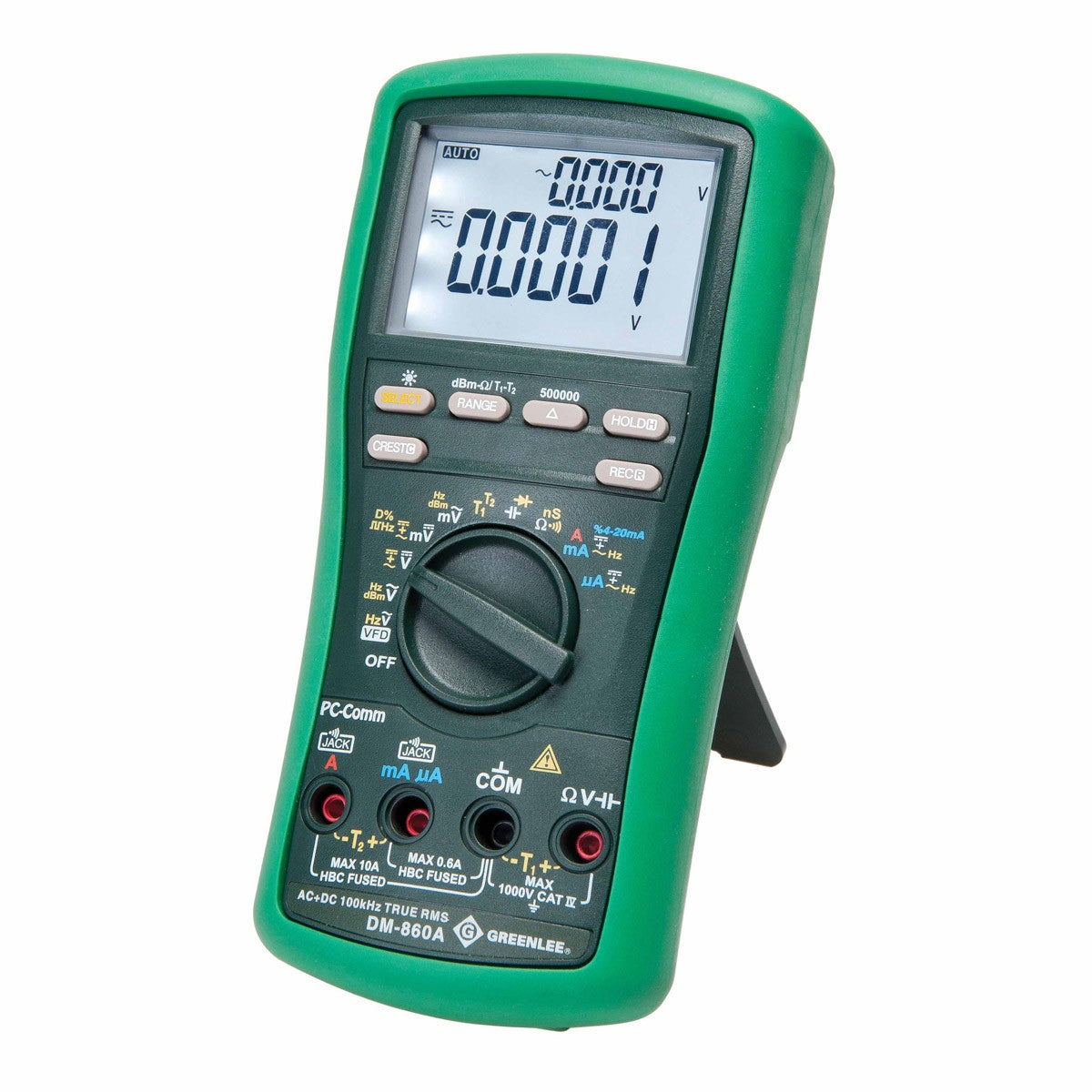

Greenlee DM-860A Industrial Digital Multimeter

List: $424.80 $346.44 + Free Shipping!

You Save 18% ($78.36)

Manufacturer Shipped Estimated Shipping in 2 - 10 Days

Special Order - Details

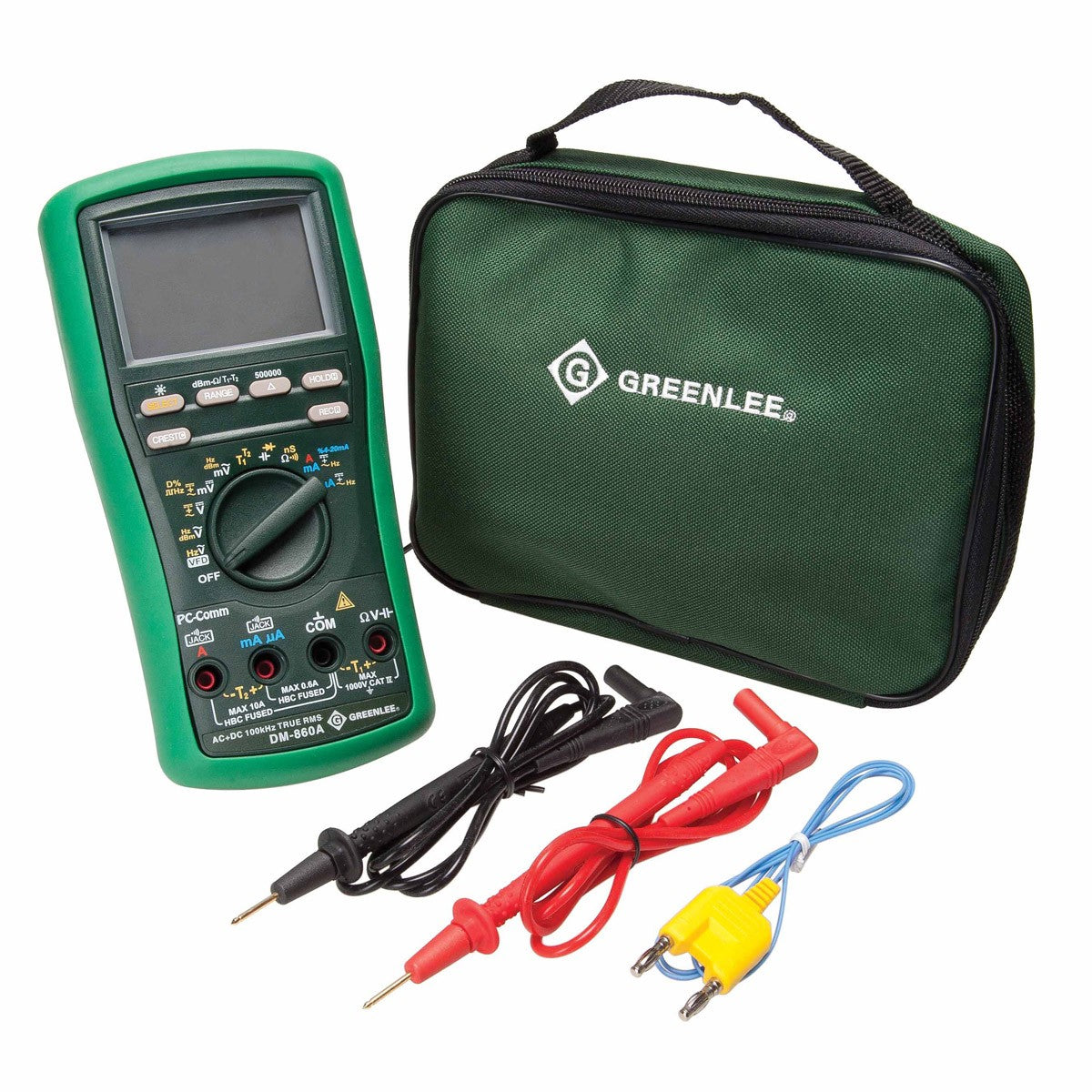

Greenlee DM-860A Includes

  • 9V Battery
  • Bead Temperature Probe
  • Test Leads
  • Protective Boot
  • Carrying Case

Greenlee DM-860A Features

  • AC+DC True RMS, 50,000-count dual display for greater accuracy.
  • VFD (variable frequency drive) voltage and frequency functions for accurate readings on noisy drive waveforms.
  • Beep-Jack™ audible and visual input alert helps avoid blown fuses or damage to meter.
  • 41-segment analog bar graph makes it easy to view quick changes.
  • Record max, min, avg, and max-min and data hold.
  • Crest capture (peak hold) max and min readings.
  • Relative offset display mode makes monitoring relative measurement changes simple.
  • Performs resistance, conductance, frequency, duty cycle, temperature and capacitance measurements, plus diode and continuity tests.
  • Dual temperature measurement up to 1832°F/1000°C using type K thermocouples.
  • Autoranging for convenient operation – and to save you time.
  • Bright, backlit display is easy to read under any light condition.
  • Intelligent Auto Power Off conserves battery life but will not turn meter off during measurements.
  • Wide AC bandwidth – to 100 kHz for voltage and 20 kHz for current.
  • USB interface using optional DMSC-9U cable and software, allows connection to a PC for extended measurement capability.
  • Lifetime Limited Warranty.

Greenlee DM-860A Specifications

5 Digit UPC 12938
Voltage Measurement 500.00mV; 5.0000, 50.000, 500.00, 1000.0V
DC Voltage Measurement 500,000 counts mode
Amperage Measurement 500.00, 5000.0µA; 50.000, 500.00mA; 5.0000, 10.000A
Resistance 500.00?; 5.0000, 50.000, 500.00k?; 5.0000, 50.000M?
Conductance 99.99 nS
Capacitance 50.00; 500.0nF; 5.000, 50.00, 500.0µF; 5.000, 25.00 mF
Frequency 5Hz-200kHz sine wave; 5Hz-2MHz logic level square wave
Temperature K type, -58°F to 1832°F (-50°C to 1000°C)
