In Stock
Part Number: FLUKE-117 UPC: 095969324205 Weight: 1.34

Description

INCLUDES:

• 4 mm silicone test lead set

• Holster

• User manual



FEATURES:

• VoltAlert™ technology for non-contact voltage detection

• AutoVolt automatic AC/DC voltage selection

• Low input impedance: helps prevent false readings due to ghost voltage

• Large white LED backlight to work in poorly lit areas

• True RMS for accurate measurements on non-linear loads

• Measures 10 A (20 A overload for 30-seconds)

• Resistance, continuity, frequency and capacitance

• Min/Max/Average with elapsed time to record signal fluctuations

• Compact ergonomic design for one-handed operation

• Compatible with optional magnetic hanger (ToolPak™) for hands free operation

• CAT III 600 V safety rated



SPECIFICATIONS:

• Maximum voltage between any terminal and earth ground: 600 V

• Surge protection: 6 kV peak per IEC 61010–1 600 VCAT III, Pollution Degree 2

• Fuse for A input: 11 A, 1000 V FAST Fuse (Fluke PN 803293)

• Display - Digital: 6,000 counts, updates 4 per second

• Bar graph: 33 segments, updates 32 per second

• Operating temperature: -10°C to +50°C

• Storage temperature: -40°C to +60°C

• Battery type: 9 volt Alkaline, NEDA 1604A / IEC 6LR61

• Battery life: 400 hours typical, without backlight

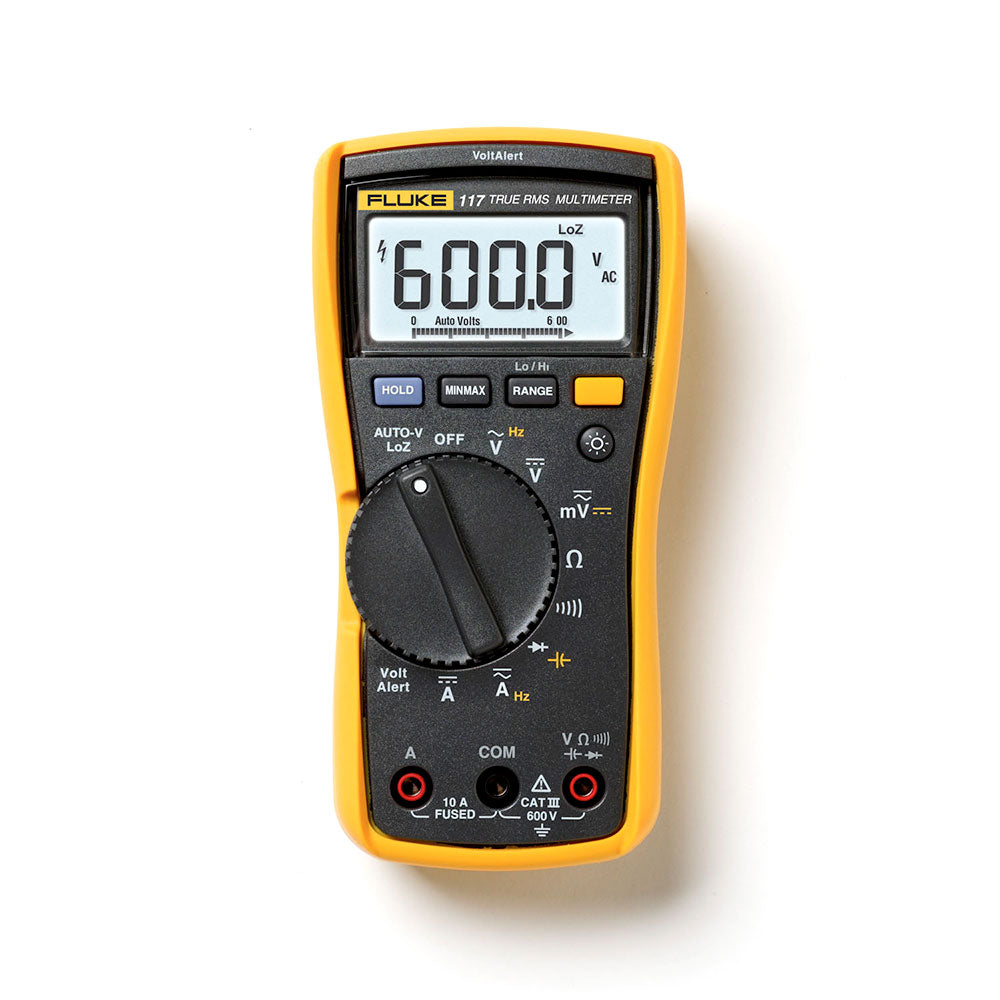

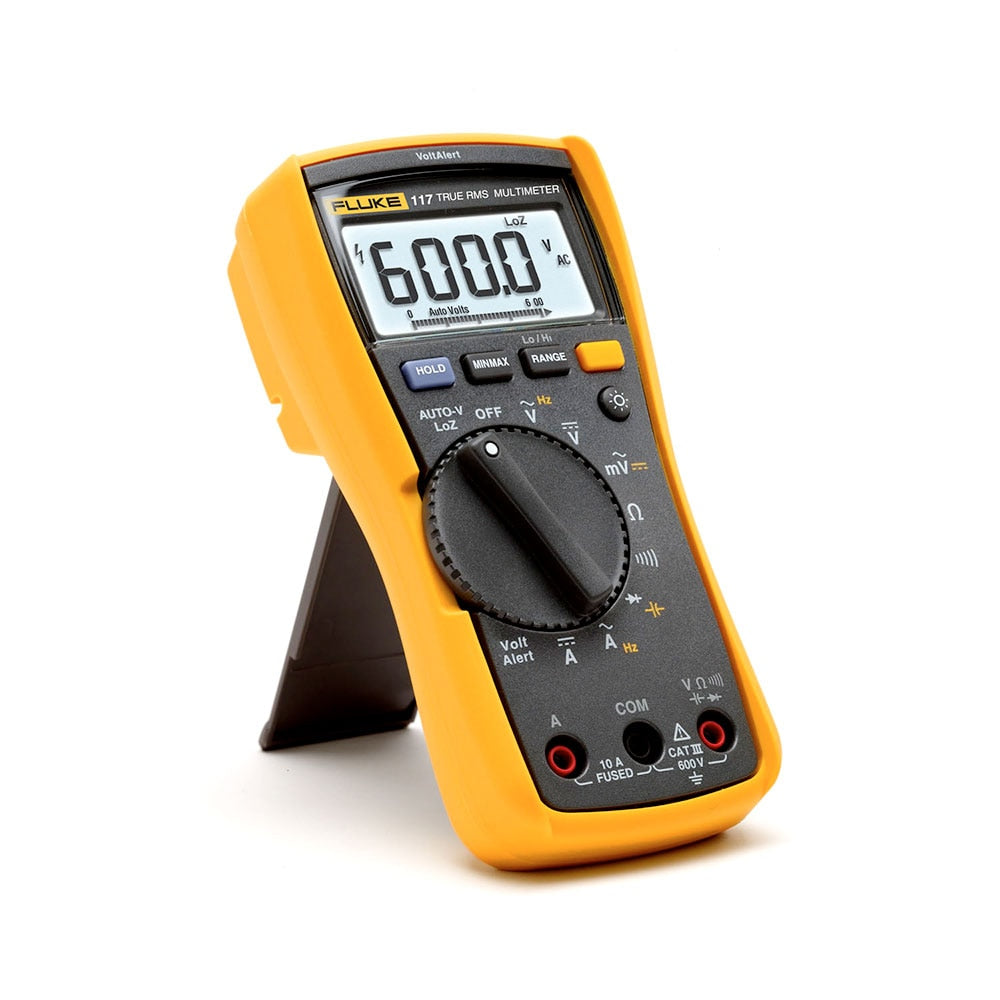

The Fluke 117 digital multimeter is accurate and rugged.
