In Stock
Part Number: 26092 UPC: 0095691260925 Weight: 509

Description

    Product Overview



  1. Threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.



    1/4"-2" Universal Die Head and 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.



    Fast Production: threads 1/4" – 2" pipe at 36 RPM and 2 1/2" – 4" at 12 RPM



  2. Quiet Operation: An induction motor insures sound levels well within the limits set by OSHA.



    Low Voltage Operation: special start/run capacitors allow operation in less than ideal conditions.



Popular Accessories For This Item

Ridgid 92467 200 Universal Wheel and Cabinet Stand for



17 gauge steel walls and welded construction. 2 internal and 1 external storage shelves. Oversized bi-fold door with steel clasp. Cut-outs for power cord and foot switch storage



Shop Now
Ridgid 92462 150A Universal Wheel and Tray Stand



Heavy duty steel frame for maximum stability and rigidity with large diameter wheels for easy job-site transport



Shop Now

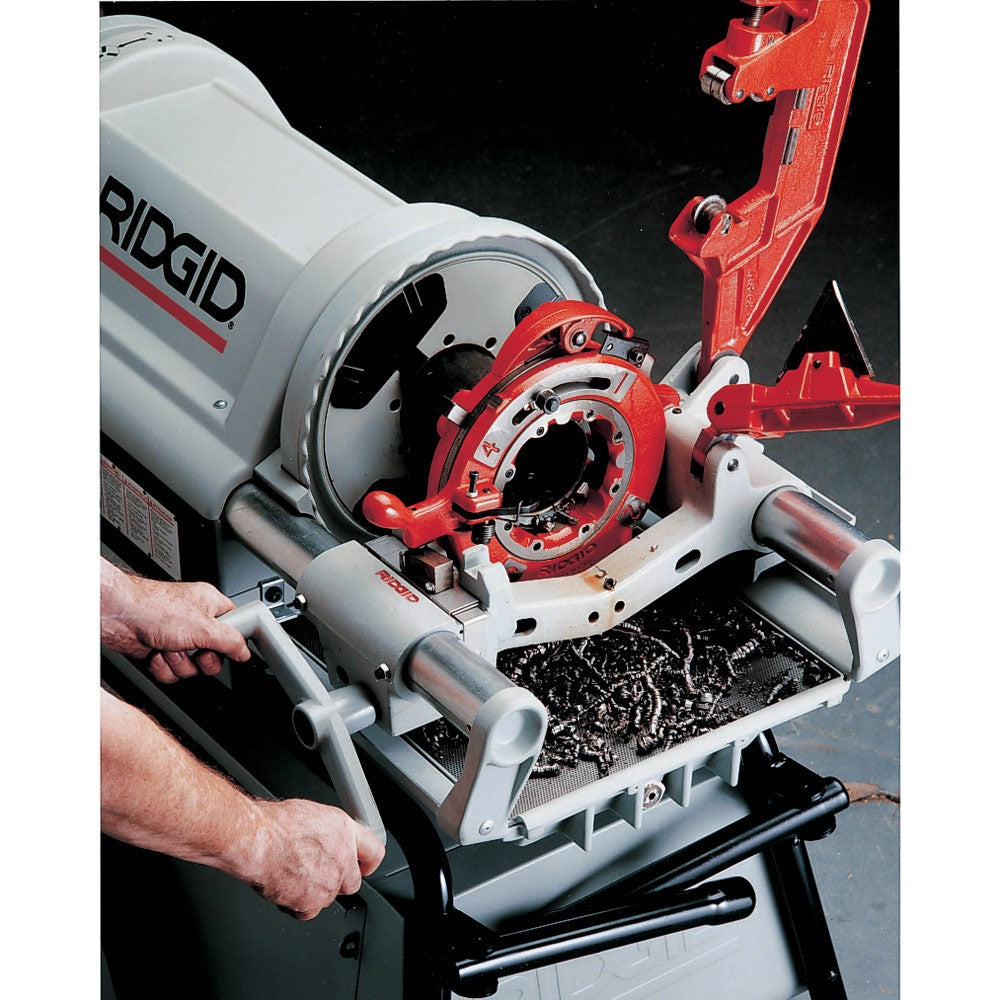

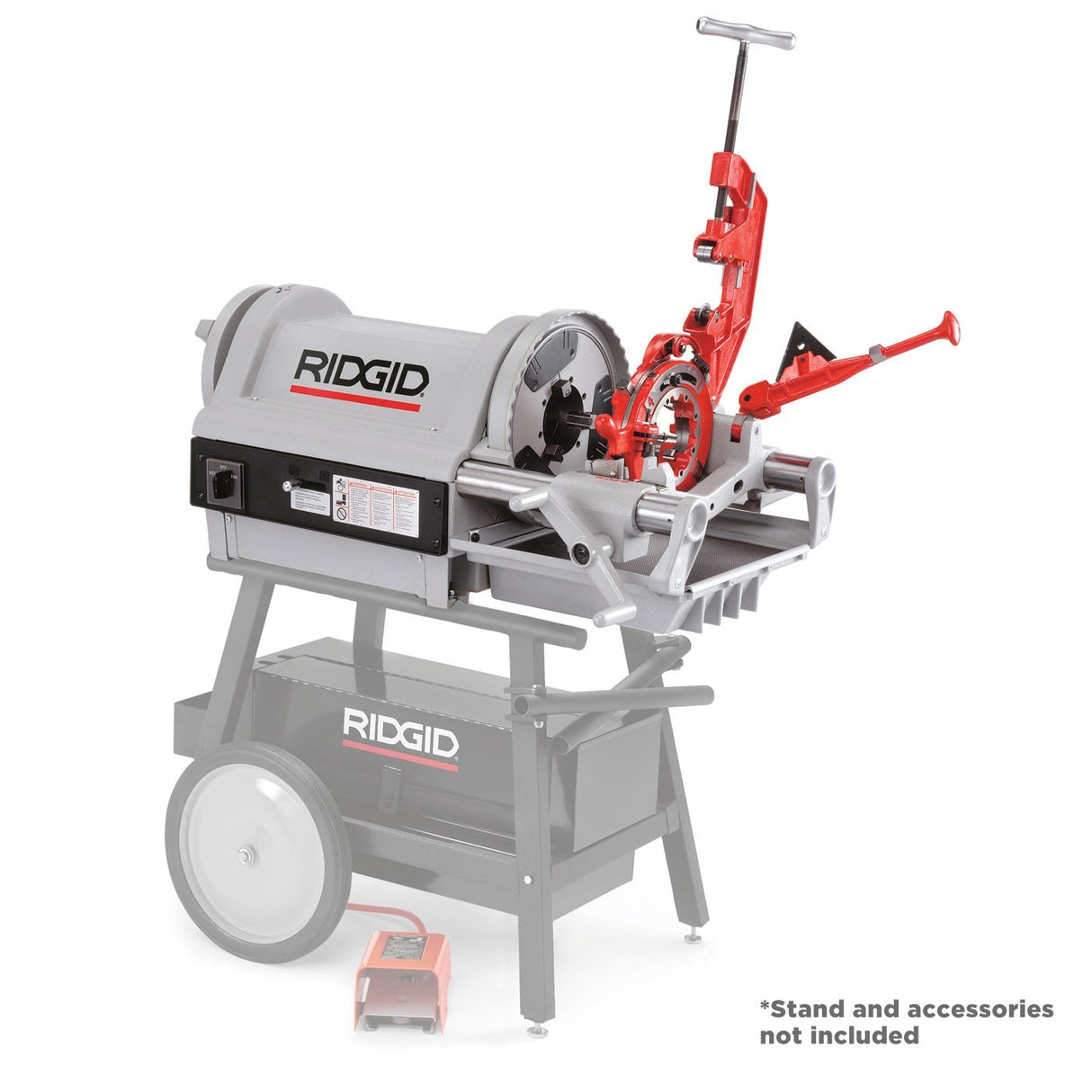

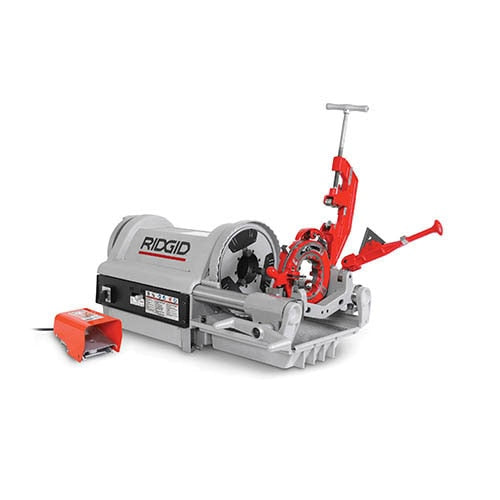

The RIDGID Model 1224 is the industry standard 4" Threading Machine. Thousands of satisfied customers around the world give testimony of its dependability.



Ridgid 26092 Features:

• The Model 1224 threads a wide range of pipe including black, galvanized and plastic-coated pipe, together with stainless steel, IMC and heavy-wall conduit, as well as rod up to 30 Rockwell C.

• An induction motor helps minimize noise and keep sound levels within limits set by OSHA.

• A special capacitor-start / capacitor-run motor allows the 1224 to thread a full range of material where voltage drop is experienced.

• 1/4"-2" Universal Die Head; 2 1/2"-4" receding die head allows cutting of tapered or straight NPT/NPSM or BSPT/BSPP threads.

• Constant and proper lubrication of dies and workpiece with through-head oiling.



Ridgid 26092 Specifications:

• Pipe Capacity: 1/4"-4" (6mm-100mm) 4"-6" (100mm-150mm) with 161 Geared Threader.

• Bolt Capacity: 1/4"-2" (6mm-50mm).

• Motor: 1 1/2 HP, single-phase, 60 Hz, induction type.

• Motor Control: Reverse/Off/Forward, heavy-duty rotary-type and integral foot switch.

• Spindle Speed: 36/12 RPM.

• Gear Box: Two-speed gear box 3:1 ratio.

• Chuck: Hammer-type with replaceable rocker-action jaw inserts.

• Rear Centering Device: Cam action.

• Cutter: Model 764 full-floating, self-centering 1/4"-4" with F-229 cutter wheel.

• Reamer: Model 744, 1/4"-4" blade-type.

• Pump: Self-priming, gerotor-type, automatic-reversing, constant-flow.



Ridgid 26092 Includes:

• (1) No. 714 (914) 2 1/2"- 4" receding self-opening die head.

• (1) No. 711 (911) 1/4"- 2" universal self-opening die head.

• (1) set 1/2"- 3/4" universal alloy dies.

• (1) set 1" - 2" universal alloy dies.

• (1) set 2 1/2"- 4" 1224 high-speed dies.

• (1) gallon Nu-Clear oil.

• (3) hex keys.

• (1) spare F-229 cutter wheel.

• (1) 3/4" combination wrench.

• (1) No. 744 reamer.

• (1) No. 764 cutter.

(Please note - tool stand and plastic box not included)



Downloads:



26092 Product Info Sheet





26092 User Manual
