In Stock

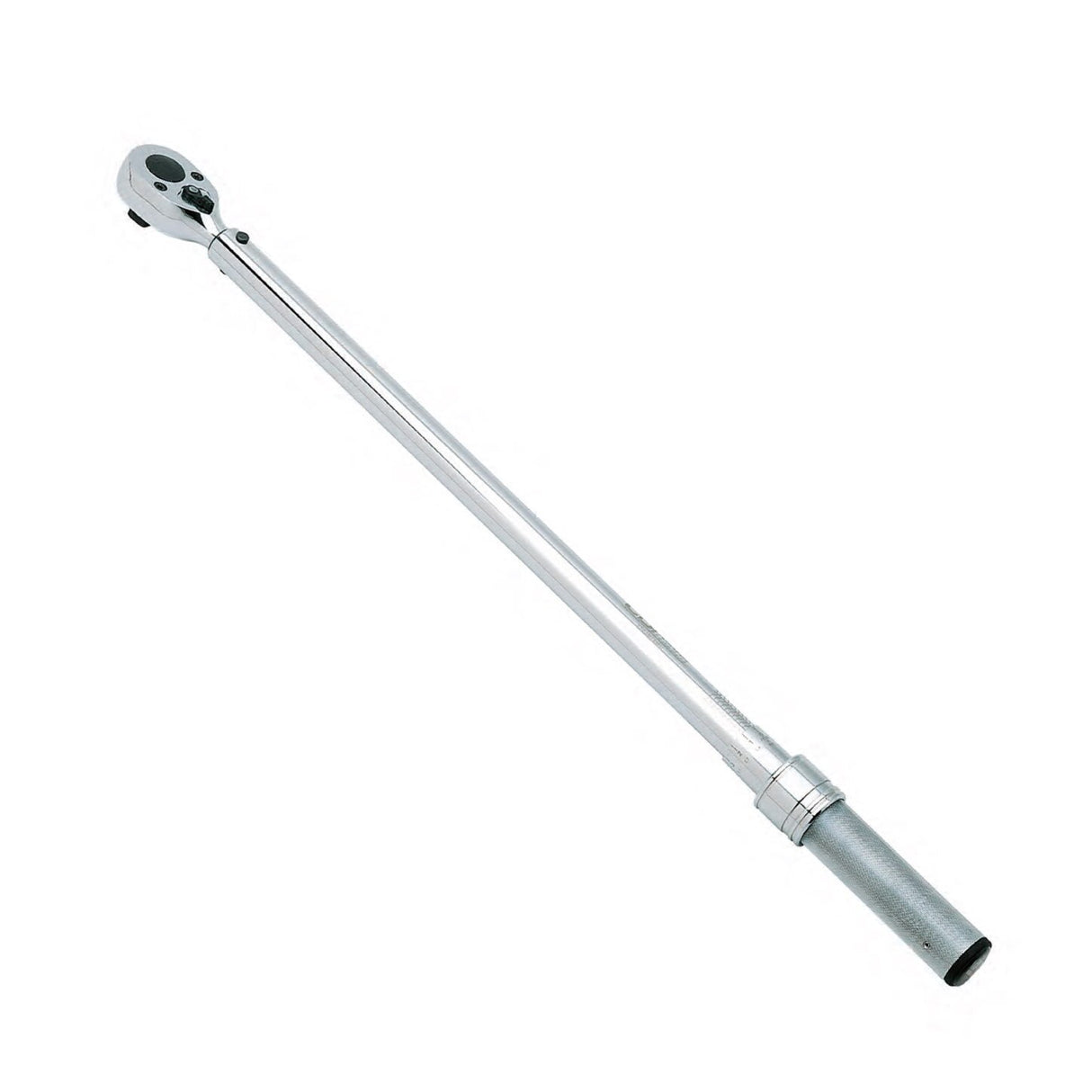

Part Number: 1002MFRMH UPC:Weight: 2.55

Description

Features:

• Dual scale, calibrated dual direction

• Positive lock with spring loaded pull down lock ring

• Fast, accurate and easy to set

• Easy-to-read laser marked scales

• Most feature quick release buttons which provide good socket retention as well as easy socket removal

• Accuracy is 3% CW +- 4% CCW of indicated value, CW, from 20% to 100% of full scale

• Individually serialized with matching certificate of calibration traceable to N.I.S.T



Specifications:

• Drive Size: 3/8"

• English Range: 10 - 100 ft. lb.

• Incriment: 0.5

• Nm Range: 16.9 - 132.2

• Incriment: 0.7

• Length: 16"

• Head Width: 1.43"

• Head Depth: 1.20"

• Handle Width: 1.40"

• Weight: 2.55 lbs
