Special Order Details Available for Backorder
Part Number: FC2002 UPC: 662865416510 Weight: 64

Description





FEATURES:

• Comes standard with 100% Duty-Cycle Motor, Pressure Switch with On/Off Lever, Regulator w/Air Line Pressure Gauge, 12 oz. Crankcase Pre-filled with Oil, 95/125 PSI Operating Pressure, Factory Tested, Safety Relief Valve

• High-Output 4.1 CFM pump capable of running 1-2 framing guns, 1-2 roofing guns or 3-5 trim/finish guns.

• Equipped with Cold-Start Valve for easy starting all year long.

• Low-Profile, Stack-Tank Design allows for easy storage and portability.

• Splash-Lubricated Pump with Cast-Iron Cylinder ensure longer life. (12 oz. Reservoir - Initial Oil Fill Included.)



SPECIFICATIONS:

• Amperage: 13.8

• Max Pressure: 125

• Horse Power: 2HP

• CFM Displaced @ 90 PSI: 8.7 CFM

• Pump/Motor RPM: 3400 RPM

• Overload Protection: Yes (Manual Reset Standard)

• Lubrication Type: Splash Lubrication

• Reed Valve System: Yes (Standard)

• Number of Cylinders: 1

• Tank Capacity: 4.3 Gallons

• Decibel Rating: 80 dBA

• Dimensions: 20"L x 15"W x 17"H

• Pump Oil Capacity: 12 Ounces

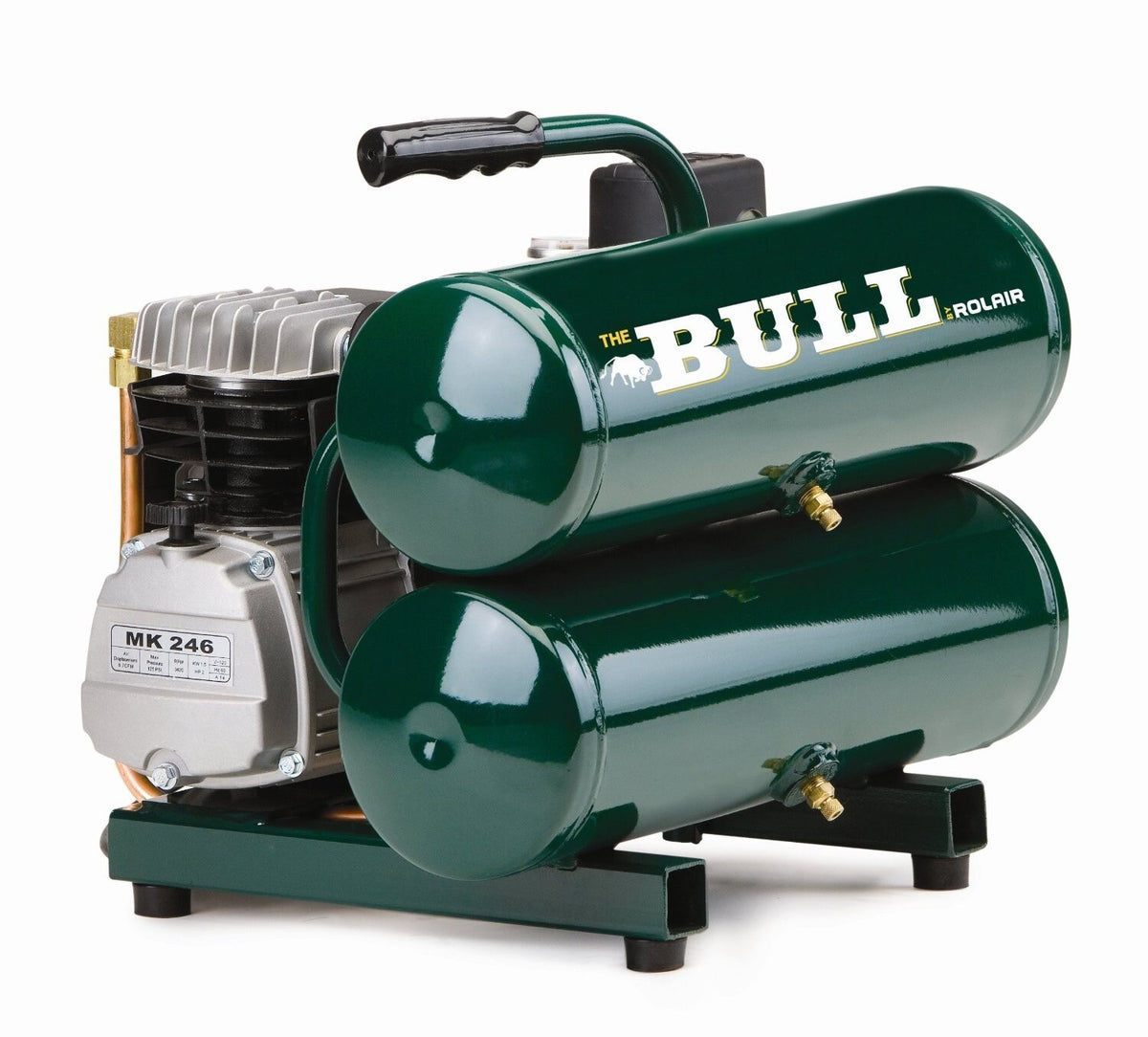

A classic stack-tank design combines with a low-amp draw, 2 HP motor for high output and consistent production. 4.1 CFM @ 90 PSI. Motor features also include manual-overload protection for longer life and ball bearings for great durability. Oversized crankcase helps hold oil viscosity longer and protects pump on unlevel surfaces.
