Special Order Details Available for Backorder
Part Number: 5715K17-0001 UPC: 662865268256 Weight: 177

Description





FEATURES:

• Comes standard with Pressure Gauge, 0-200 in 5 lb. Graduations, Square D Pressure Switch w/Unloader, Accessory Support Clip, Intake Filter w/Silencer & Replaceable Element, Air-Cooled Aftercooler, Totally Enclosed Steel Belt Guard, Safety Relief Valve and Regulator

• Capable of running 3-4 framing guns, 3-5 roofing guns, or 7-9 trim/finish guns.

• Two-Cylinder High-Efficiency Single-Stage Pump includes: Cast-Iron Cylinders, Stainless-Steel Reed Valves, Oil Sight Gauge, Oil Drain Extension, Finned Aftercooler and Automotive-Style Bearing Inserts.

• Heavy-Duty Two-Piece 16 Gauge Bolted Belt Guard.

• Low-Speed Pump and Motor for quiet operation.



SPECIFICATIONS:

• Amperage: 17

• Max Pressure: 135

• Horse Power: 1.5HP

• CFM Displaced @ 90 PSI: 10.1 CFM

• CFM Delivered @ 90 PSI: 7.3 CFM

• Motor RPM: 1755 RPM

• Pump RPM: 780 RPM

• Pump Oil Capacity: 34 Ounces

• Reed Valve System: Yes (Standard)

• Automotive Style Inserts: Yes (Standard)

• Wheels: 1 Flat Free Tire

• Tank Capacity: 9 Gallons

• Dimensions: 49"L x 19"W x 28"H

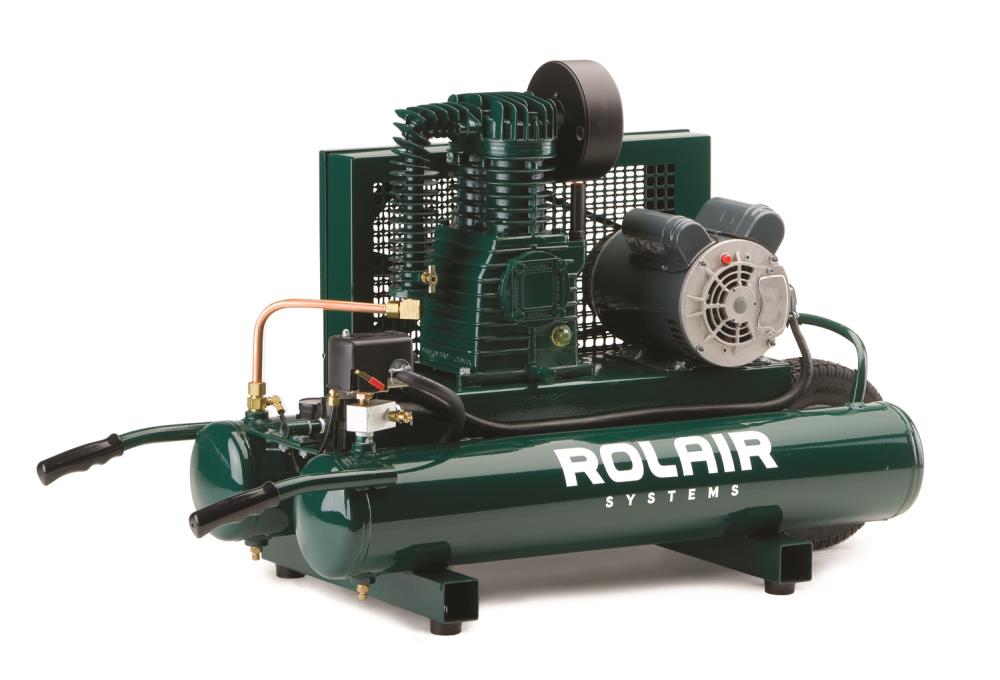

When your electric hand-carry unit isn't giving you enough air, the 5715K17 is your choice. Capable of running on a 20 Amp breaker, this model will deliver 7.3 CFM, doubling the output of many direct-drive units. Additionally, the low-RPM pump and motor combine for quiet operation.
