SKU: Proto J5340H
UPC: 662679182540
Weight: 1.06

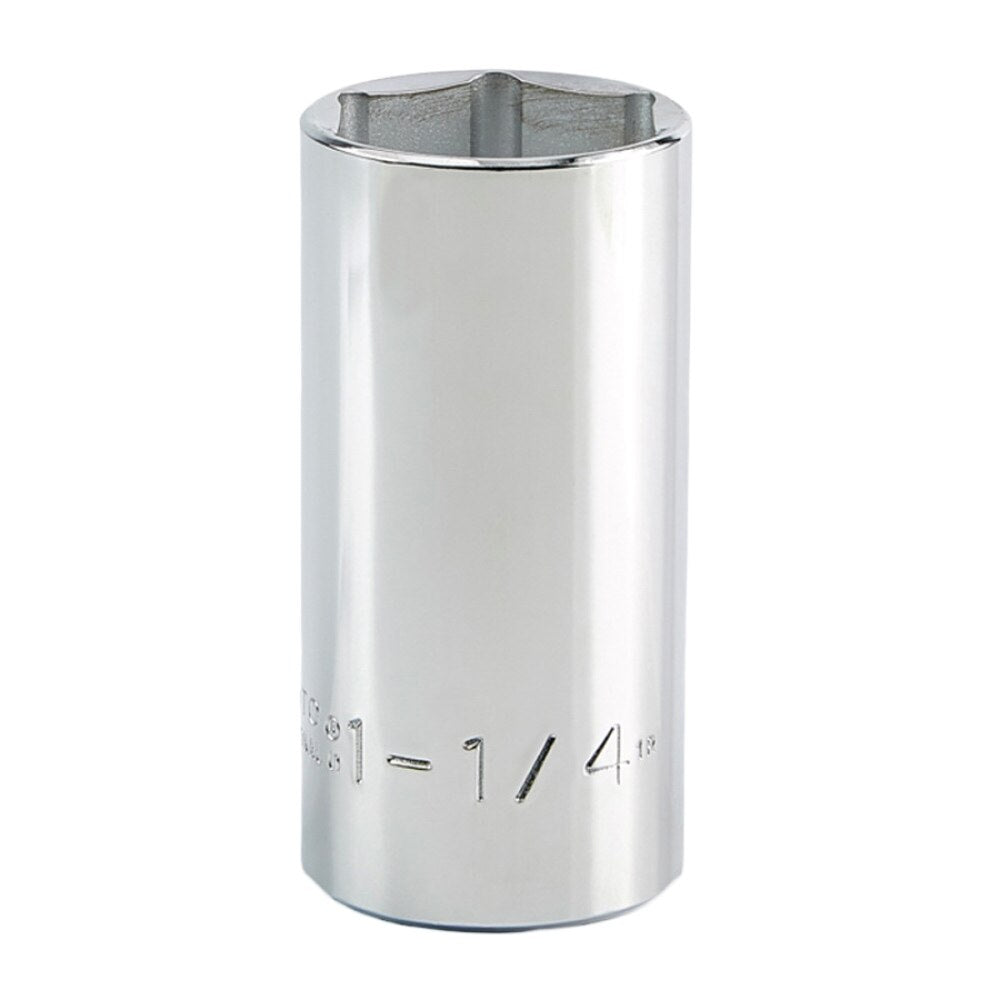

Proto J5340H 1/2" Drive Deep Socket 1-1/4" - 6 Point

List: $42.77 $30.22
Only 1 left in stock, 0 will be special ordered.

Only 1 left in stock

In Stock

Details

Proto J5340H Includes

  • (1) 1/2" DRIVE DEEP SOCKET 1-1/4" - 6 POINT

Proto J5340H Features

  • Proto® 6 Point Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J5340H Specifications

SIZE 1-1/4''
NUT END OUTSIDE DIAMETER 1-37/64"
DRIVE END OUTSIDE DIAMETER 1-37/64"
NUT DEPTH 1-3/16"
BOLT CLEARANCE DEPTH 2-1/8"
OVERALL LENGTH 3-1/4"
WEIGHT 0.79 lbs
DRIVE SIZE 1/2"
POINT SIZE 12
FINISH Full Polish
LENGTH TYPE Deep
UNIT OF MEASURE Fractional
SPECIFICATION ASME ASME B107.110-2012
SPECIFICATION AS SAE AS4984A
