SKU: Proto J10026L
UPC: 662679370510
Weight: 3.01

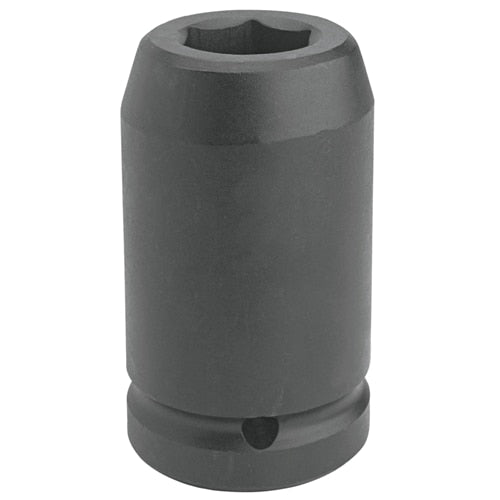

Proto J10026L 1" DRIVE DEEP IMPACT SOCKET 1-5/8" - 6 POINT

List: $89.86 $47.19
Only 1 left in stock, 0 will be special ordered.

Only 1 left in stock

In Stock

Details

Proto J10026L Includes

  • (1) 1" DRIVE DEEP IMPACT SOCKET 1-5/8" - 6 POINT

Proto J10026L Features

  • Proto® 6 Point Impact Sockets are ideal for use on stubborn or damaged fasteners, and also on fasteners made from soft materials.
  • The TorquePlus™ design is a high performance drive configuration which allows for quick and easy socket engagement to the fastener flats, not the corners.
  • The TorquePlus™ configuration employs a radius-corner design, shifting contact area and stress away from the fastener corners and distributing contact stresses over a large area of the socket, minimizing slippage.
  • The TorquePlus™ internal design minimizes fastener rounding, helps to extend fastener life, and allows the user to more easily turn worn, rounded, or rusted fasteners.

Proto J10026L Specifications

SIZE 1-5/8''
NUT END OUTSIDE DIAMETER 2-3/8"
DRIVE END OUTSIDE DIAMETER 2-3/8"
NUT DEPTH 1"
BOLT CLEARANCE DEPTH 2-53/64"
OVERALL LENGTH 4"
WEIGHT 2.73 lbs
CRUSH RETAINING RING JRR10032
O-RING J10000R2
RETAINING PIN J10000P2
DRIVE SIZE 1"
POINT SIZE 6
FINISH Black Oxide
LENGTH TYPE Deep
UNIT OF MEASURE Fractional
