SKU: Proto J07513SS
UPC: 662679360283
Weight: 0.82

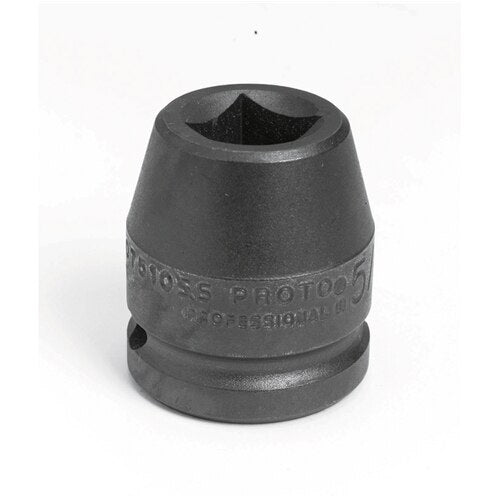

Proto J07513SS 3/4" DRIVE IMPACT SOCKET 13/16" - 4 POINT
Details
Proto J07513SS Includes
- (1) 3/4" DRIVE IMPACT SOCKET 13/16" - 4 POINT
Proto J07513SS Features
- Drive end chamfer and four detents help provide quick positive engagement with drive tool on any of the socket drive walls.
- Tight tolerances for snug fit on fastener.
- Large clearance holes, concentric opening and nut end chamfer make it easy to position socket on fasteners.
- Made from high-strength steel to help minimize wall thickness and provide access to fasteners in recesses and where nuts and bolts protrude.
- Impact sockets are used where ever powered drive tools are used to install or remove fasteners.
- Impact sockets are designed to withstand the high torque and force associated with impact tools in repetitive application.
- Features two through holes and a groove to accept a Proto® Retaining Ring or pin and o-ring to help secure the socket to the drive tool anvil.
- Stamped size for easy reference.
- Side locking hole.
Proto J07513SS Specifications
SIZE | 13/16" |
NUT END OUTSIDE DIAMETER | 1-5/8" |
DRIVE END OUTSIDE DIAMETER | 1-5/8" |
NUT DEPTH | 33/64" |
BOLT CLEARANCE DEPTH | 1-1/16" |
OVERALL LENGTH | 2" |
WEIGHT | 0.82 lbs |
DRIVE SIZE | 3/4" |
POINT SIZE | 4 |
FINISH | Black Oxide |
LENGTH TYPE | Standard |
UNIT OF MEASURE | Fractional |
SPECIFICATION ASME | ASME B107.110-2012 |
