Part Number: KN1500PEX UPC: 092644614255 Weight: 14.15

Description

FEATURES:

• Large, non-conductive dial (drum knob) allows web slack to be adjusted with ease.

• 360° handle rotation.

• 3/4 ton single line and 1-1/2 ton double line load rating.

• Tight ratcheting mechanism allows precise tensioning

• Meets ANSI/ASME B30.21-2005 and B30.10-2009 standards.

• Read, understand, and follow all warnings, cautions, safety information, and instructions in the manual before operating or servicing this hoist.



SPECIFICATIONS:

• Single Line Load Rating: 1500 lbs. (680 kg)

• Double Line Pulling Distance: 26" to 79" (660 to 2006 mm)

• Double Line Load Rating: 3000 lbs. (1361 kg)

• Single Line Pulling Distance: 20" to 138" (505 to 3505 mm)

• Weight: 12.50lbs. (5.67 kg)

• Pull Type: Single/Double

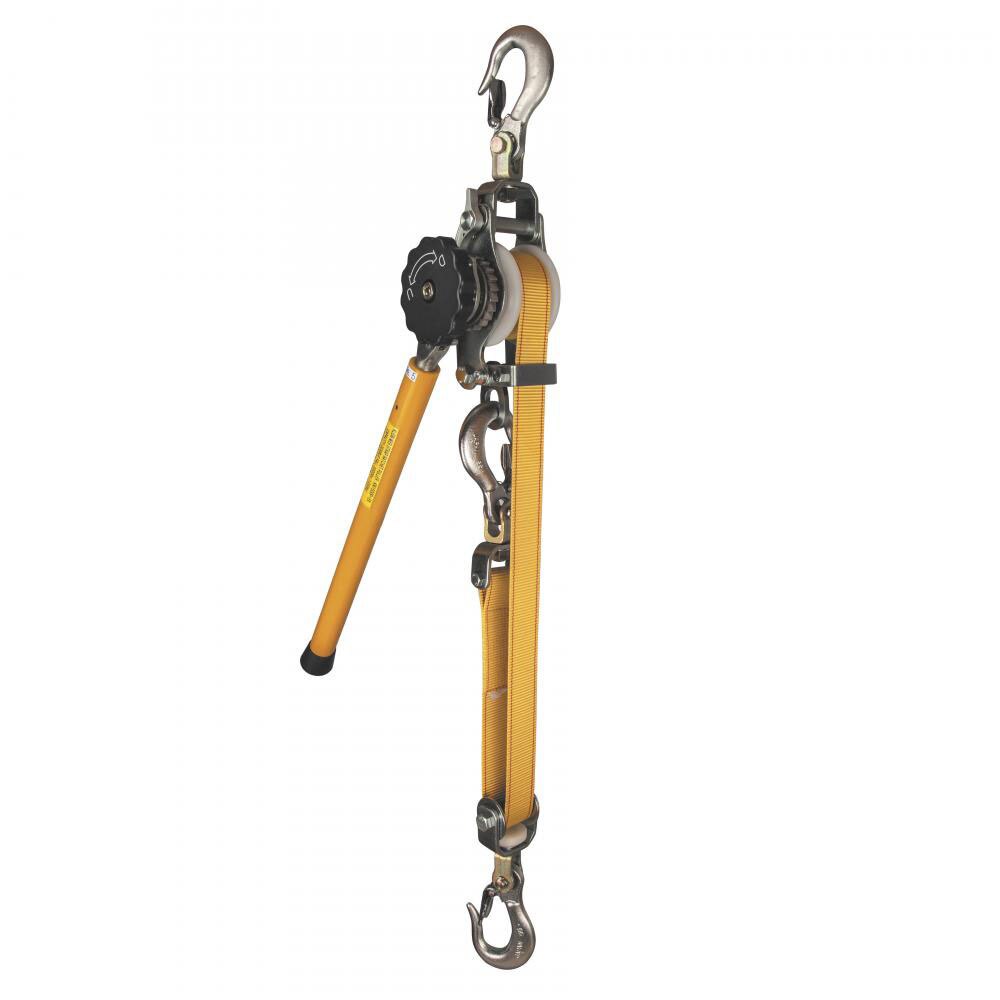

Klein Tools' Web-Strap Ratchet Hoist features a tighter ratchet to reduce work and fatigue. The handle and drum knob allow you to safely control the tension release to avoid free wheeling. The hoist can be used in both a single line and double line configuration. The handle provides a 360 degree range of motion for easier adjustment from any angle.
