Part Number: 414458 UPC: 662755247286 Weight: 121

Description

FEATURES:

• For added safety, the HVBS-56M follows strict guidelines and electrical requirements to be certified by CSA Group

• UL Listed Motor

• Heavy-Duty 14-gauge steel stand

• Blade drive is a sealed, steel, heat treated worm driving a bronze worm gear in an oil bath

• Handle and wheels for easy movement

• Ball bearing supported blade wheel

• Fully adjustable ball bearing blade guides

• Auto shut off after cut

• Vertical work table

• Adjustable material stop



SPECIFICATIONS:

• Round at 90 Degrees (In.): 5

• Blade Size (In.): 1/2 x 0.025 x 64-1/2

• Drive: Belt Drive

• Blade Speeds (SFPM): 80, 120, 200

• Round at 45 Degrees (In.): 3

• Rectangle at 90 Degrees (In.): 5 x 5-3/4 and 2 x 6

• Blade Wheel Diameter (In.): 7-3/8

• Bed Height (In.): 26

• Cutting Capacity (W x D) (In.): 5 x 6

• Rectangle at 45 Degrees (In.): 4-1/2 x 3

• Weight (Lbs.): 115

• Vise Swivels (Deg.): 45°

• Blade Length (In.): 64-1/2

• Motor (HP): 1/2 HP, 115/230V, 1Ph

• Overall Dimensions (L x W x H) (In.): 36 x 20 x 39-1/2

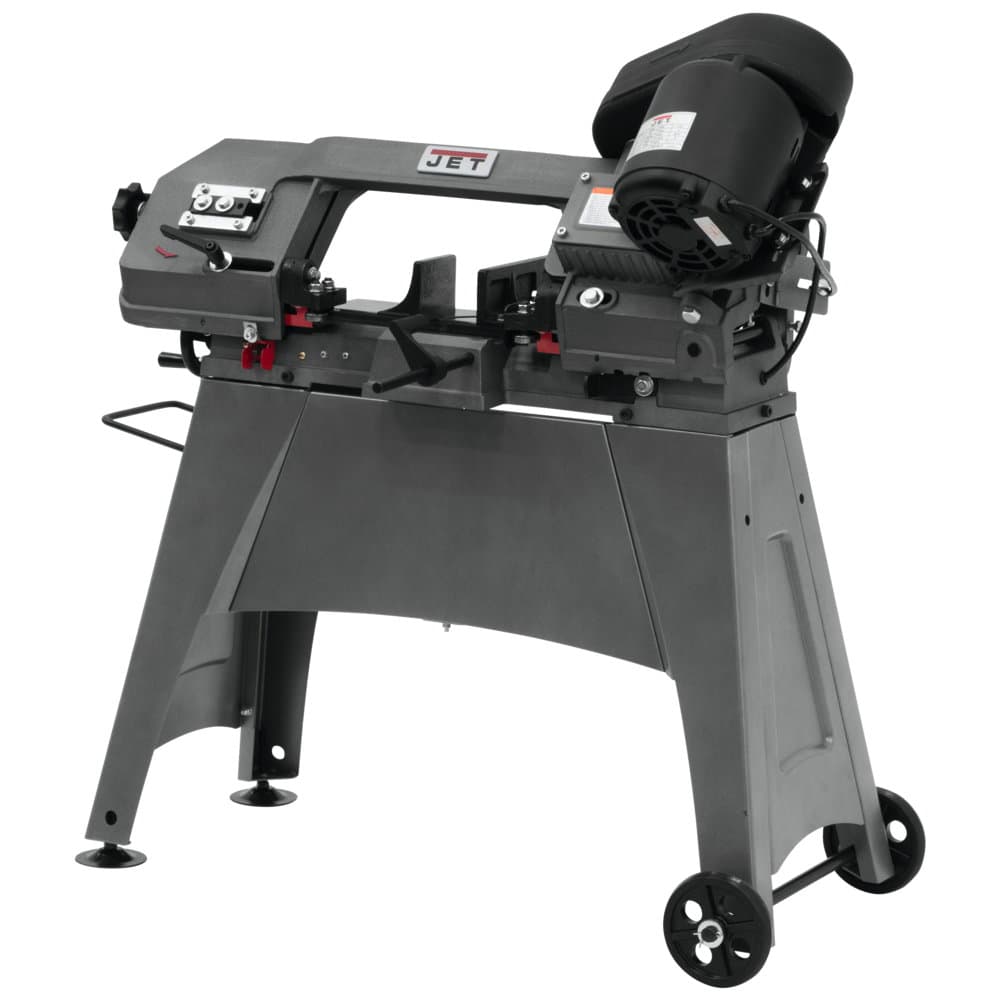

Smaller shops and job sites alike benefit from the power and precision of JET when the HVBS-56M is put into action. Its 1/2HP, UL motor offers great versatility and power when cutting in either a horizontal or vertical position. Long list of features and JET backed Two Year Warranty make this saw a must have for your operation.
