Ships in 1 - 2 days!
Part Number: 354401 UPC: 662756092656 Weight: 257

Description

FEATURES:

• Constructed to provide a solid base for drilling

• The enclosed spidle assembly is supported by four permanently lubricated ball bearings for greater precision and accuracy

• Cast Iron head

• Large ground steel column for maximum head and table support

• Large quill allows greater accuracy

• 3-1/8" stroke for deep hole applications

• Accurate depth stop for precice hole depths

• Table tilts 45°

• 5/8" drill chuck and arbor

• Telescoping safety spindle guard



SPECIFICATIONS:

• Table Travel (In.): 15-1/2

• Table Size (L x W) (In.): 11-1/2 x 11-1/2

• Column Diameter (In.): 2-7/8

• Spindle Distance to Table (Max.) (In.): 15

• Base Dimensions (In.): 18 x 10-1/2

• Drilling Capacity Mild Steel (In.): 1/2

• Spindle Travel (In.): 3-3/8

• Base Work Table (In.): 8 x 8

• Weight (Lbs.): 157

• Distance Column to Spindle (In.): 7-1/2

• Drills to Center of Circle (in): 15

• Work Table Weight Capacity (Lbs.): 44

• Range of Spindle Speeds (RPM): 200, 290 ,350, 430, 500, 580, 640, 720, 800, 870, 1,440, 1,630, 1,820, 2,380, 2,540, 3,630

• Spindle Distance to Base (In.): 24

• T-Slot Centers (In.): -

• Motor (HP): 3/4 HP, 115V, 1Ph

• Base Slots Number & Size (In.): -

• Drilling Capacity Cast Iron (In.): 5/8

• Number of Spindle Speeds: 16

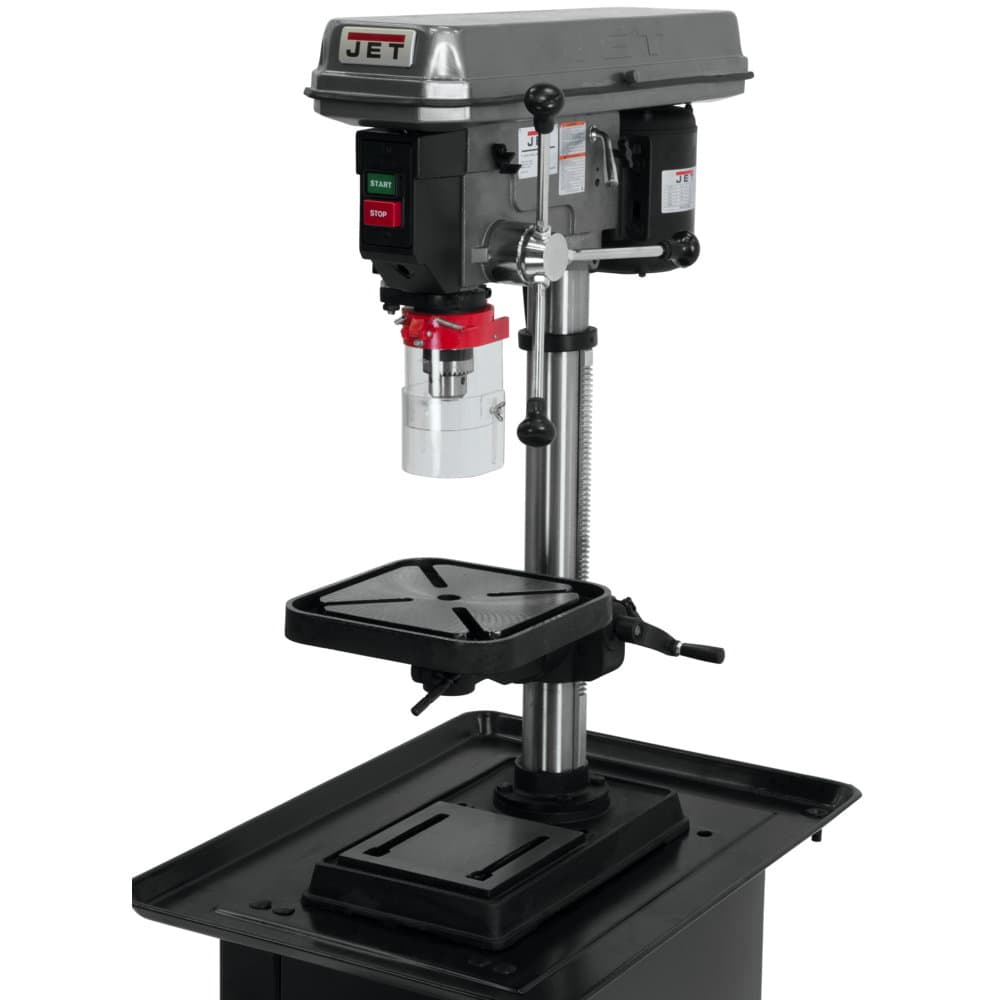

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
