SKU: Jet JT9-354170
UPC: 662755104121
Weight: 325

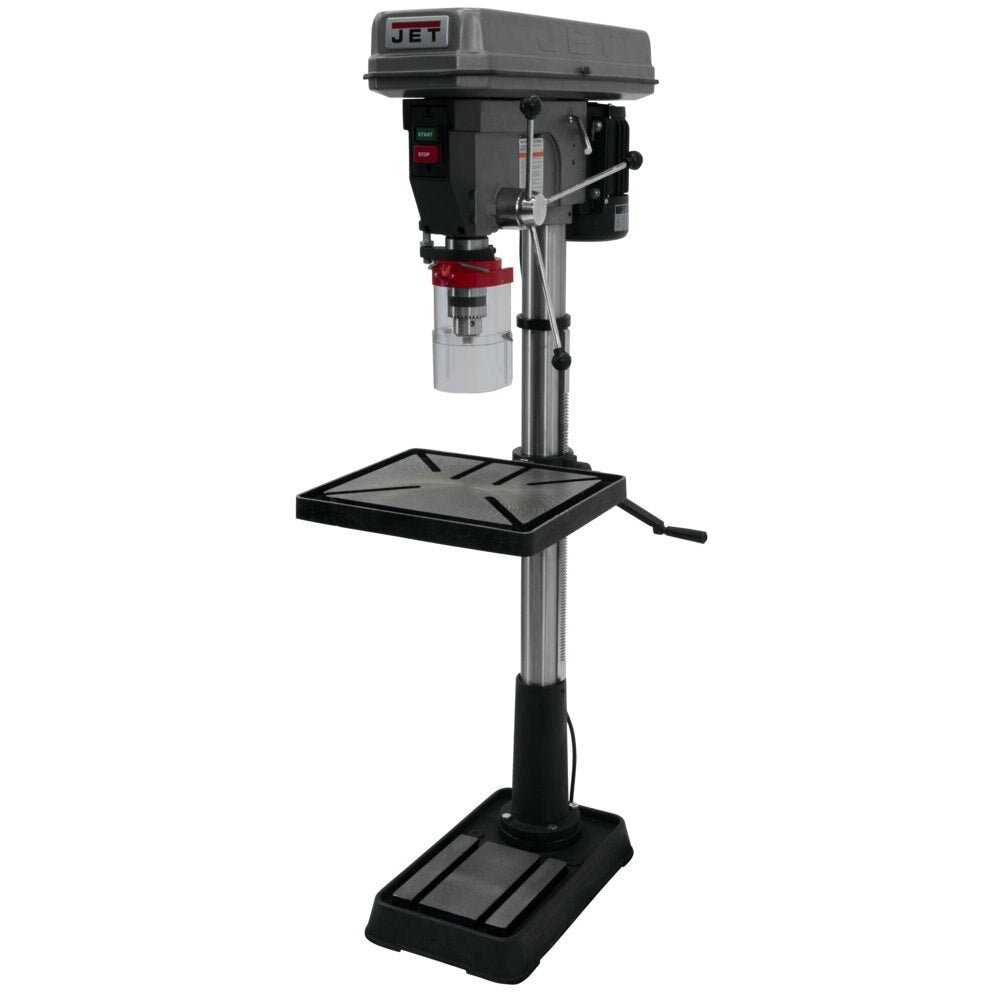

Jet JT9-354170 JDP-20MF, 20" Floor Drill Press 115/230V 1PH
Details
Jet 354170 Description
Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.
Jet 354170 Features
- Hinged metal belt and pulley cover
- Quick adjustment motor mount for rapid changing of spindle speeds
- Rotating, 45° tilting, crank operated worktable with release clamp
- On/off switch located on front of drill press head
- 1/2" diameter external depth stop with three nut locking feature for quick adjustment
- Adjustable tension spindle return spring
- Spindle is supported by high quality bearings
- Drill chuck and key included
- Telescoping safety spindle guard
Jet 354170 Specifications
| Table Travel (In.) | 21-1/2 |
| Table Size (L x W) (In.) | 18-1/2 x 16 |
| Column Diameter (In.) | 3-3/8 |
| Spindle Distance to Table (Max.) (In.) | 29-1/8 |
| Base Dimensions (In.) | 13-3/4 x 22-3/4 |
| Drilling Capacity Mild Steel (In.) | 3/4 |
| Spindle Travel (In.) | 4-5/8 |
| Base Work Table (In.) | 13 x 8-1/2 |
| Weight (Lbs.) | 282 |
| Distance Column to Spindle (In.) | 10 |
| Drills to Center of Circle (in) | 20 |
| Work Table Weight Capacity (Lbs.) | 80 |
| Range of Spindle Speeds (RPM) | 150 - 4,200 |
| Spindle Distance to Base (In.) | 46-3/4 |
| T-Slot Centers (In.) | 3-1/2 |
| Motor (HP) | 1-1/2 HP, 115/230V, 1 Ph |
| Base Slots Number & Size (In.) | 2 & 5/8 |
| Drilling Capacity Cast Iron (In.) | 1 |
| Number of Spindle Speeds | 12 |
