Part Number: 708404 UPC: 662755211492 Weight: 80

Description

FEATURES:

• 1" oscillating action reduces friction heat to protect wood and prolong sleeve life

• Main spindle support runs on precision ball bearings and is oscillated by a heavy-duty worm and gear mechanism for consistent performance

• Oscillation gears run in a sealed lubricated box to prolong their life and durability

• Table tilts to 45° to accommodate bevel sanding projects

• Removable on/off safety switch prevents accidental start-up

• Powerful 1/2HP induction motor easily handles the toughest sanding projects

• Built-in 2" dust port keeps dust and debris out of the air

• Spindles have threaded ends for quick, easy changes

• Four table inserts are provided (3/4" and 1" Oblong, 3/4" and 1" Round), to prevent dust and debris from falling into the motor, and help protect operator.

• Built-in storage racks keep spindles and table inserts handy



SPECIFICATIONS:

• Table Size (L x W) (In.): 14-1/2 x 14-1/2

• Style (Type): SV_1375591258774

• Spindle Speed (RPM): 1,725

• Motor Phase: 1

• Motor Power (HP): 1/2

• Table Tilt (Deg.): 0 - 45

• Oscillations Per Minute: 30

• Oscillation Stroke (In.): 1

• Motor Amps: 3

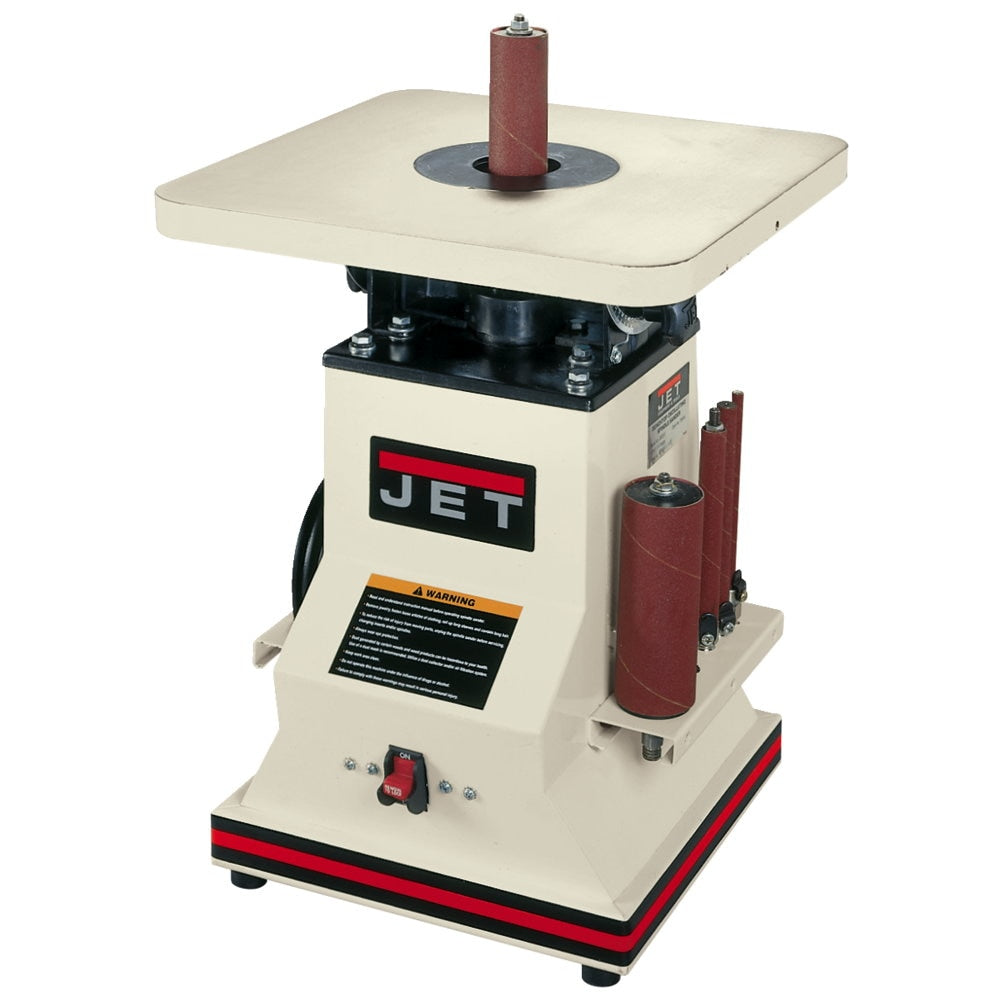

The JBOS-5 Benchtop Spindle Sander has a 1/2HP motor, and a large 14-1/2” tilting table. A heavy-duty worm gear system provides one-inch oscillating action, which prolongs sleeve life and helps prevent burnishing of the workpiece. Four inserts are provided, and 5 spindles with sanding sleeves.
