At a Glance
Anchor Type
Concrete Anchor
Material
Galvanized Steel
Sold As
Individual
For Use On
Steel
Mount Type
Clamp-On
Color
Silver
Safety Rating
OSHA 1910.140, OSHA 1926.502, ANSI Z359.18
Description
Description
Guardian 15192 Description

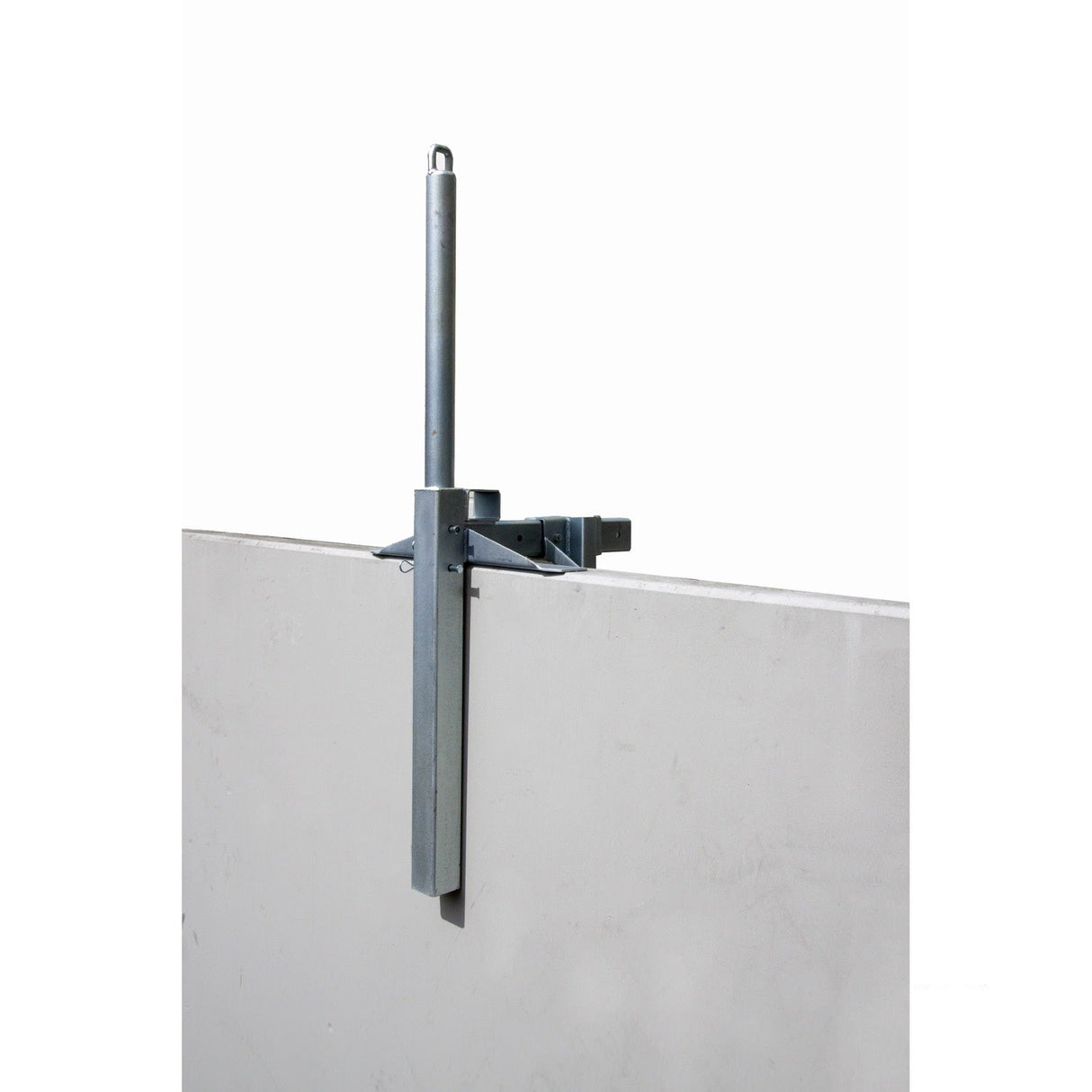

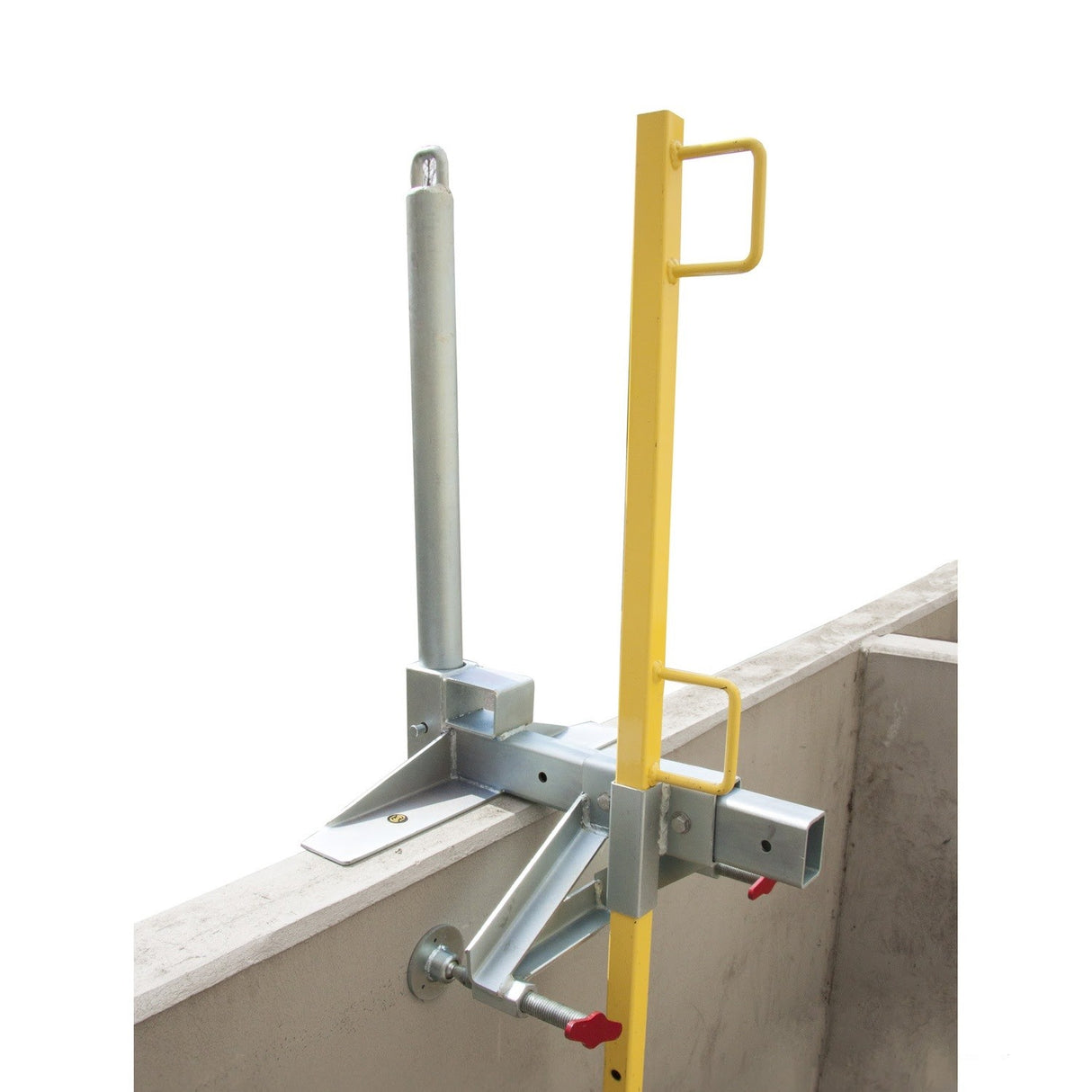

The Guardian Trench Box Anchor is a galvanized steel anchorage connector designed to provide a durable tie-off point on trench boxes for fall arrest or guardrail applications. It installs without tools, can be relocated as work progresses, and fits walls up to 10 in. thick.
Guardian 15192 Includes
- (1) Trench Box Anchor
Guardian 15192 Features
- Fits walls up to 10 in.
- Galvanized steel construction
- Durable tie-off point for trench boxes
- Supports fall arrest or guardrail applications
- Installs easily without tools
- Can be relocated as work progresses
- Rated for 5,000 lbs. tensile strength
- Worker capacity range of 130-420 lbs.
- Meets OSHA and ANSI compliance requirements
Guardian 15192 Specifications
| Product Type | Trench Box Anchor |
| Material | Galvanized Steel |
| Anchorage Connector Type | Specialty |
| Application | Fall arrest or guardrail applications, not simultaneously |
| Maximum Wall Thickness | Up to 10 in. |
| Weight Capacity | 130-420 lbs. |
| Tensile Strength | 5,000 lbs. |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Country of Origin | China |
Toolup Part # :
17750
