Guardian 00656 Description

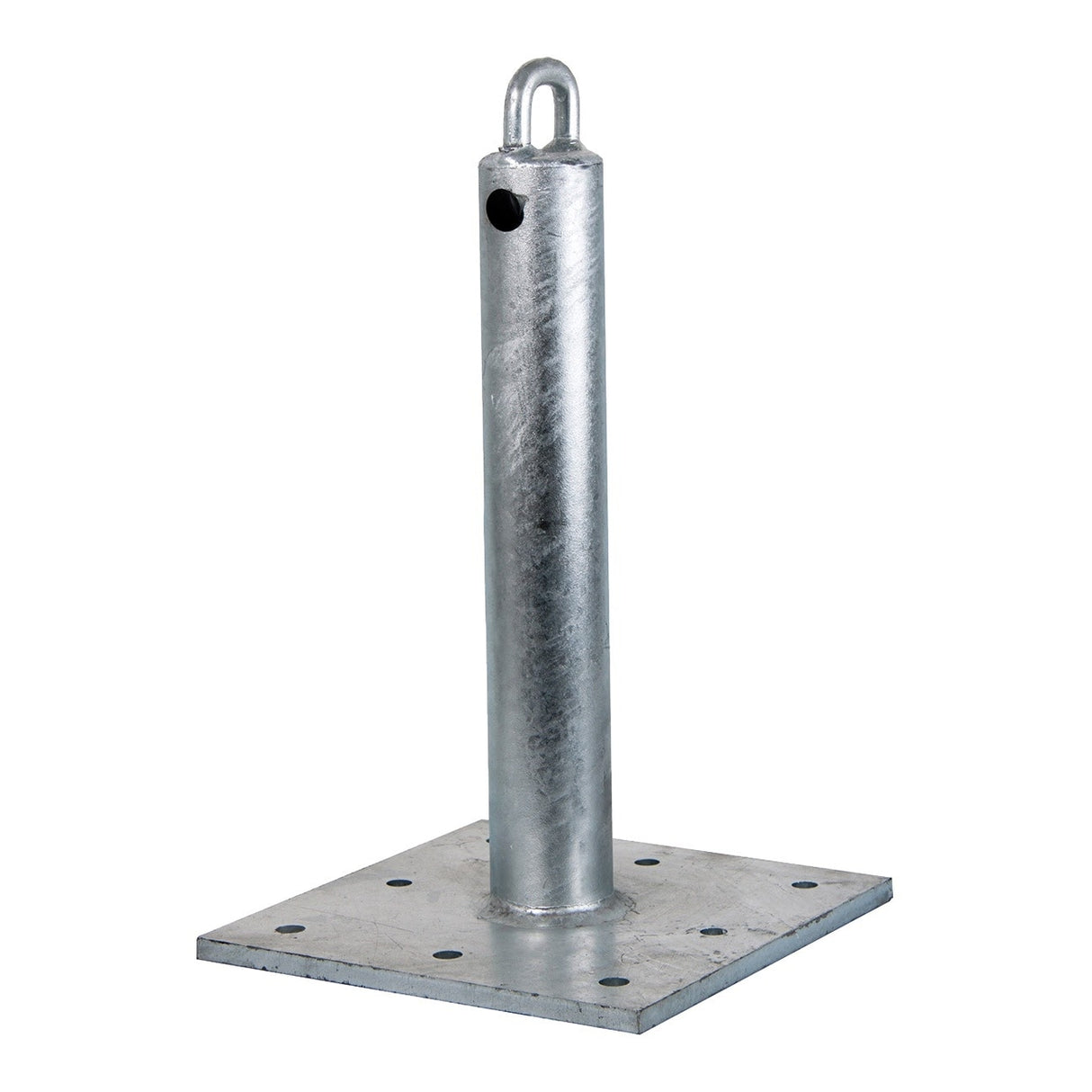

The Guardian CB-18 Anchor Post is a galvanized steel roof anchor designed for fall arrest applications on concrete, wood, steel decking, and I-beams. Its 18 in. post extends through finished roofing for a secure tie-off point and can also be used with compatible horizontal lifeline systems.
Guardian 00656 Includes
- (1) CB-18 Anchor Post
Guardian 00656 Features
- Installs on concrete, wood, steel decking, or I-beams for versatile rooftop anchorage
- Galvanized steel construction helps resist corrosion in demanding environments
- 18 in. post extends through finished roofing for easy connection to fall protection equipment

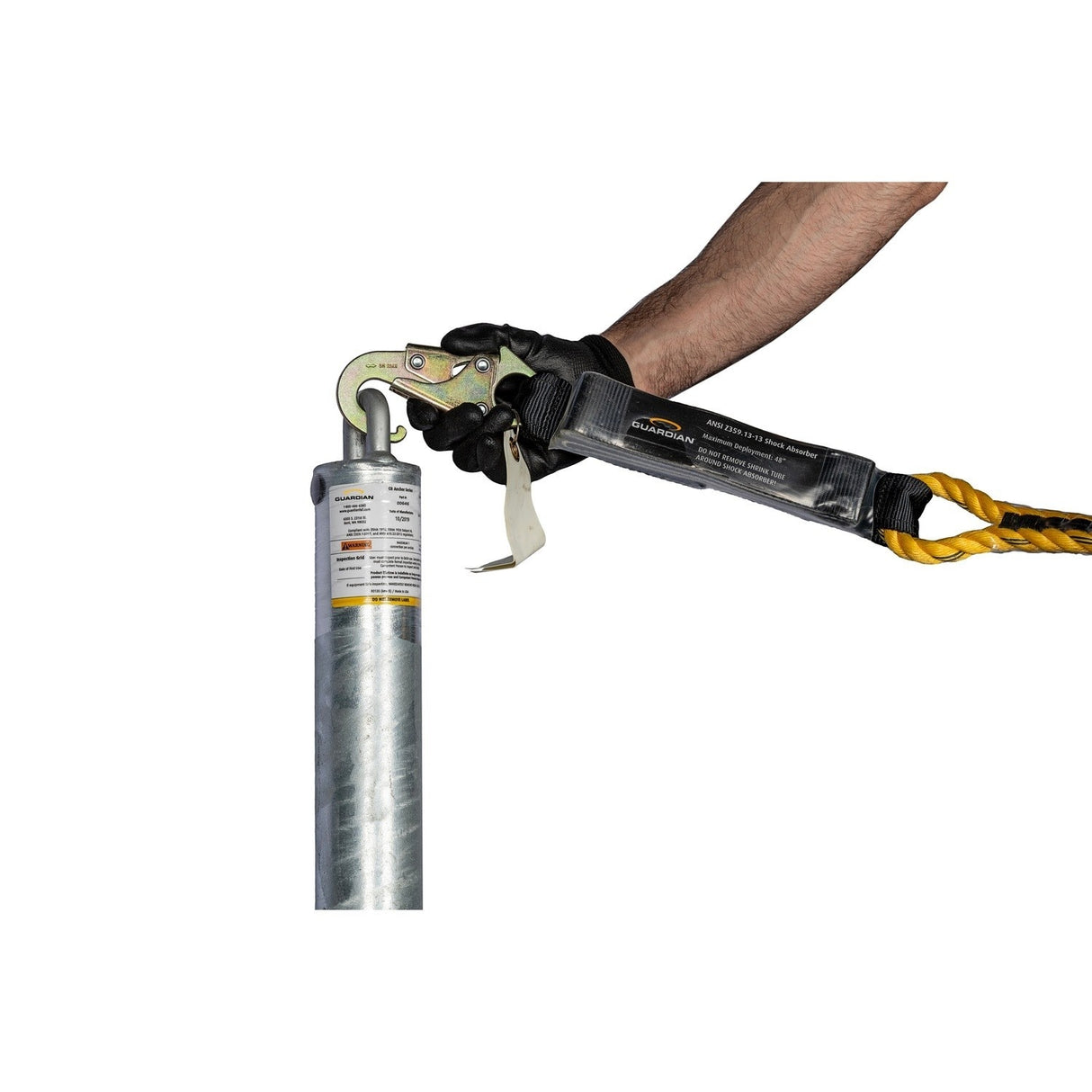

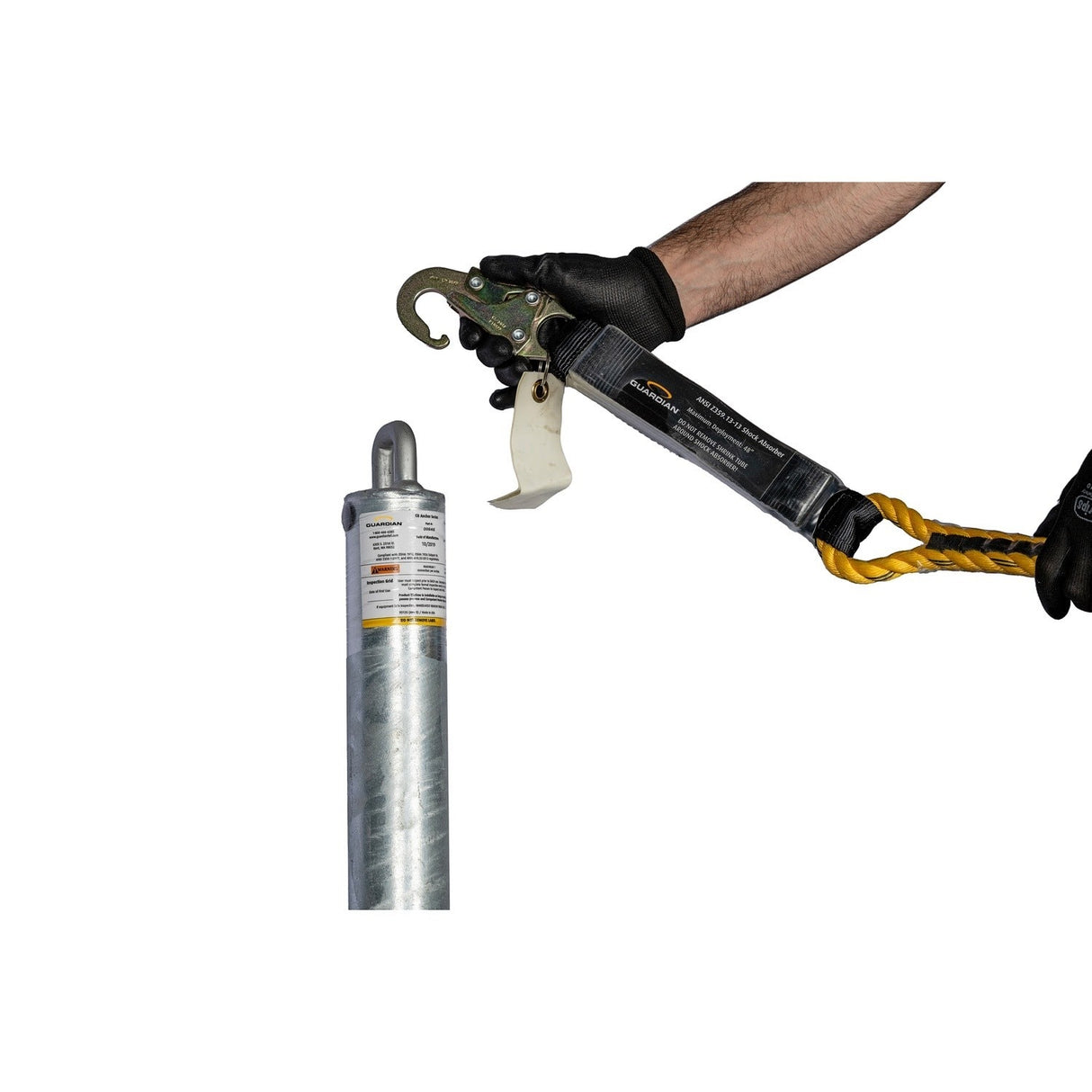

- Can be used as a single-point tie-off anchor or with a compatible horizontal lifeline system
- Backer plate compatible for additional installation flexibility
- Meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017 requirements
Guardian 00656 Specifications
| Product Type | Roof Anchor Post |
| Model | CB-18 |
| Material | Steel |
| Finish | Galvanized |
| Anchor Type | Fall Arrest |
| Anchorage Connector Type | Roofing |
| Mounting Location | Finished Roof |
| Post Height | 18 in. |
| Product Length (in) | 12 |
| Product Width (in) | 12 |
| Product Height (in) | 20 |
| Product Weight (lb) | 31.27 |
| Compatible Surfaces | Concrete, wood, steel decking, I-beams |
| Backer Plate Compatible | Yes |
| Concrete Thickness | 6 in. |
| Concrete PSI | 2500, 3000, 3500, 4000, 4500, 5000 |
| Wood Thickness | 3/4 in., 1 in., 2 in., 3 in., 4 in., 5 in., 6 in. |
| Metal Thickness | 16 ga, 18 ga, 20 ga |
| Weight Capacity | 130-420 lb |
| Tensile Strength | 5,000 lb |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
