At a Glance
Anchor Type
Concrete Anchor
Weight Capacity
420 lb
Connection Type
Welded
Material
Steel
Sold As
Individual
For Use On
Steel
Mount Type
Eye
Safety Rating
OSHA 1926.500, ANSI Z359.1
Description
Description
Guardian 00610 Description

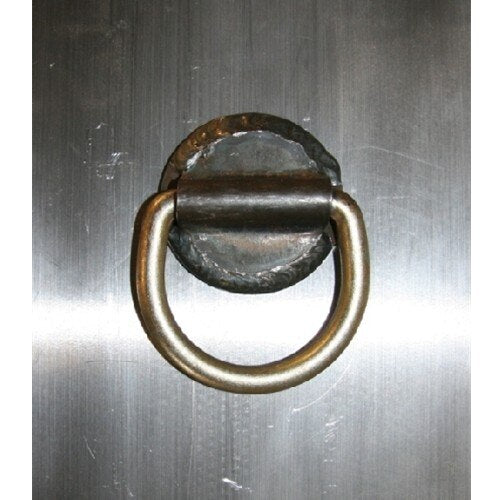

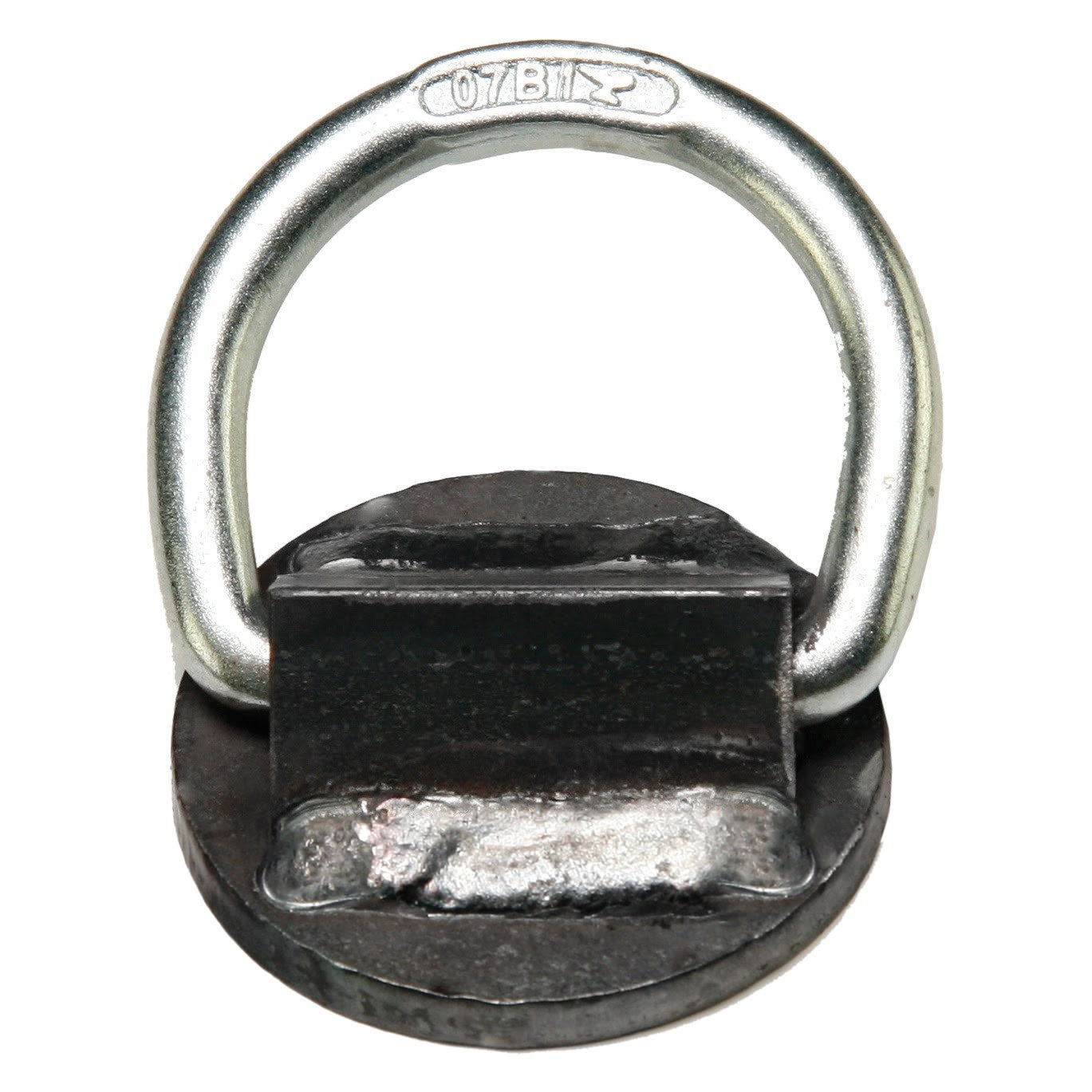

The Guardian CB-1-W Weld-On Anchor is a low-profile anchorage connector for fall protection applications. Designed to weld directly to compatible I-beams, columns, and other structural members, it features a forged D-ring, a compact 2.75 in. footprint, and compatibility with single-point tie-off or horizontal lifeline systems.
Guardian 00610 Includes
- (1) CB-1-W Weld-On Anchor
Guardian 00610 Features
- Low-profile 2.75 in. footprint
- Forged D-ring connection point
- Welds directly to compatible I-beams, columns, and other structural members
- Suitable for single-point tie-off or use with horizontal lifeline systems
- Designed for fall arrest applications
- Must be spray galvanized after installation
Guardian 00610 Specifications
| Anchor Type | Fall Arrest |
| Mounting Location | Direct to Structure |
| Anchorage Connector Type | Steel |
| Material | Powder-coated steel |
| Anchor Post Top Style | U-Bar |
| Metal Thickness | 1/4 in. or 1/2 in. |
| Tensile Strength | 5,000 lbs |
| Weight Capacity | 130 to 420 lbs. |
| Backer Plate Compatible | No |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Country of Origin | United States |
Toolup Part # :
17893
