At a Glance
Anchor Type
Concrete Anchor
Weight Capacity
5000 lb
Material
Steel
Sold As
Individual
For Use On
Concrete
Color
Yellow
Safety Rating
OSHA Compliant
Description
Description

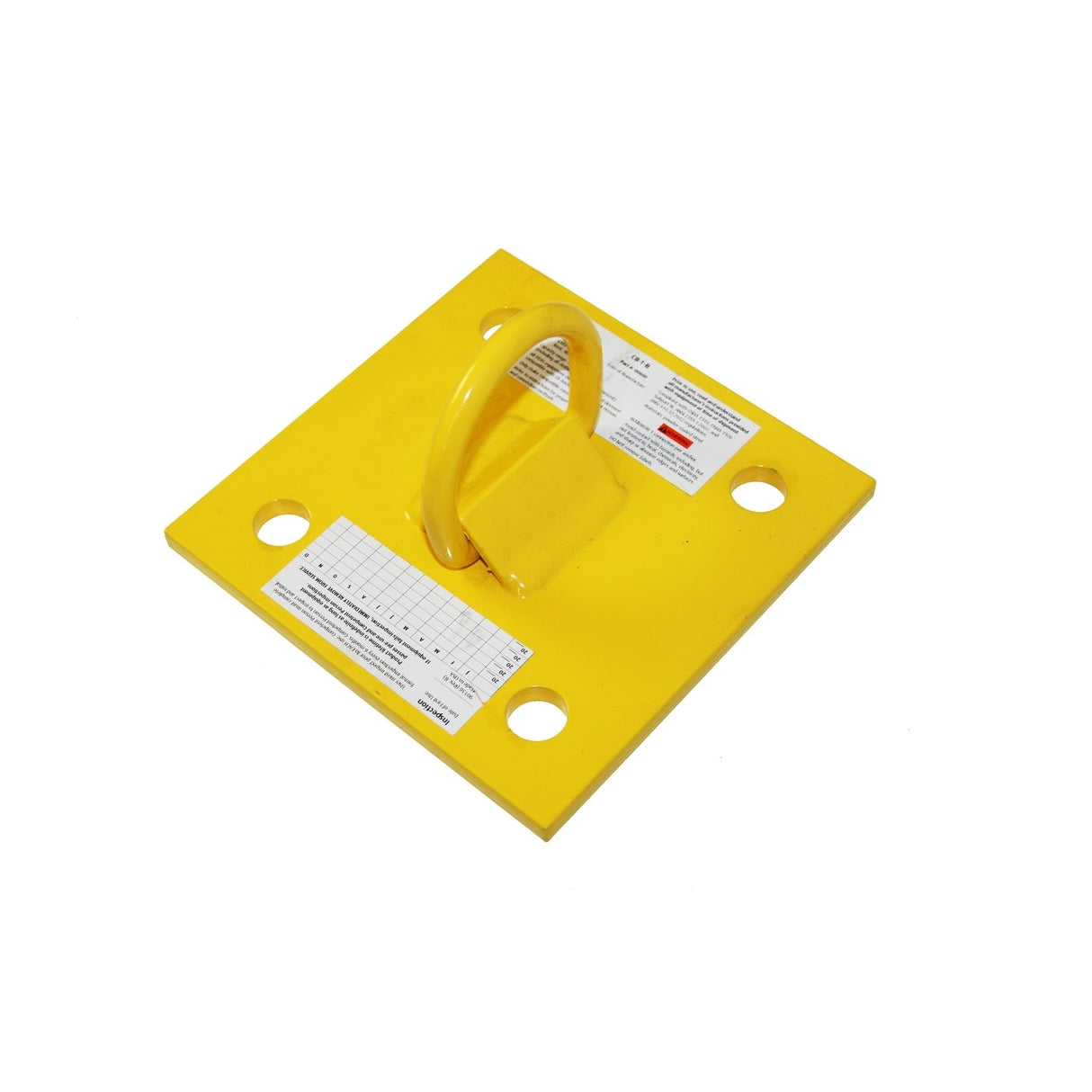

Guardian 00600 Description
The Guardian Bolt-On Wall Anchor is a low-profile fall protection anchor point designed for wood, metal, or concrete substrates and suitable for temporary or permanent installation. It can be used as a single-point tie-off or paired with a horizontal lifeline to increase worker access.
Guardian 00600 Includes
- (1) 6 in. x 6 in. Bolt-On Wall Anchor
Guardian 00600 Features
- Durable powder-coated steel construction
- Low-profile design for versatile fall protection applications
- 360-degree loading allows greater access
- Suitable for temporary or permanent installation
- Can be used as a single-point tie-off or with a horizontal lifeline
- Small 6 in. x 6 in. footprint
- Backer plate compatible
- Meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18 requirements
Guardian 00600 Specifications
| Material | Powder coated steel |
| Footprint | 6 in. x 6 in. |
| Product Weight | 3.4 lb |
| Anchor Type | Fall Arrest |
| Mounting Location | Direct to Structure; Wall |
| Compatible Substrates | Wood; Metal; Concrete |
| Wood Thickness | 6 in. |
| Metal Thickness | 1/4 in.; 1/2 in. |
| Concrete Thickness | 6 in. |
| Concrete PSI | 2500; 3000; 3500; 4000; 4500; 5000 |
| Weight Capacity | 130 to 420 lbs |
| Tensile Strength | 5,000 lbs |
| Anchor Post Top Style | U-Bar |
| Backer Plate Compatible | Yes |
| Standards Compliance | OSHA 1910.140; OSHA 1926.502; ANSI Z359.18 |
Toolup Part # :
17297
