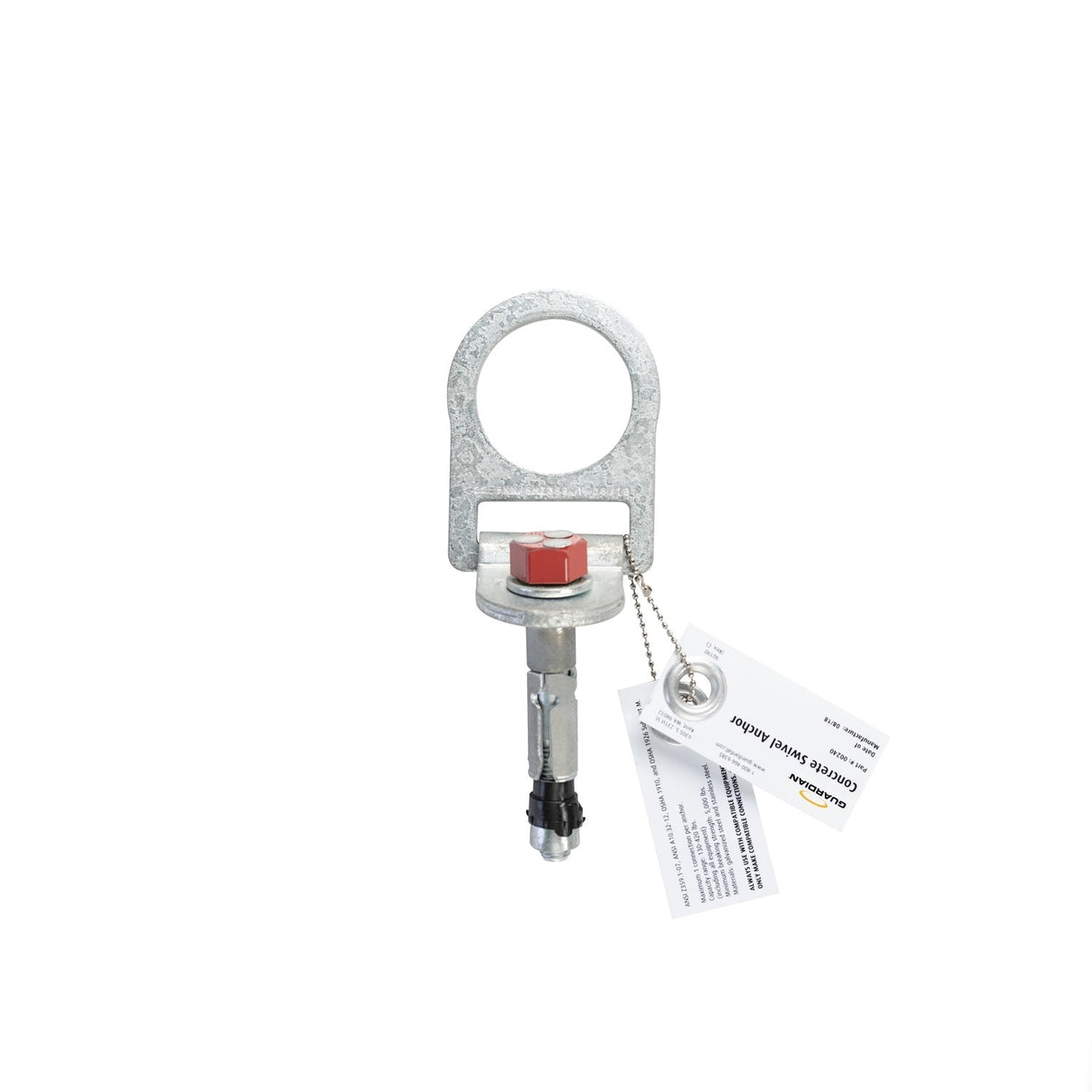

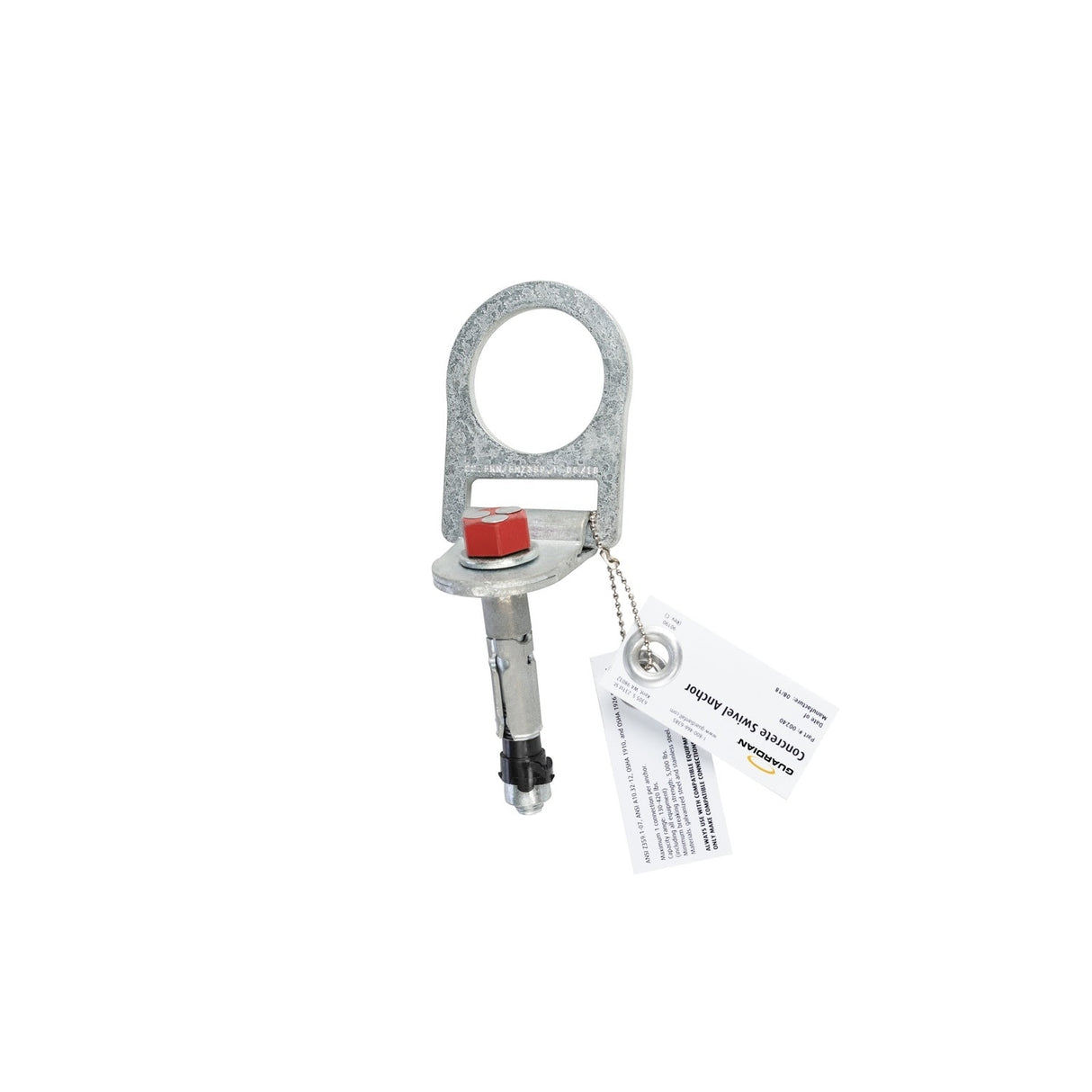

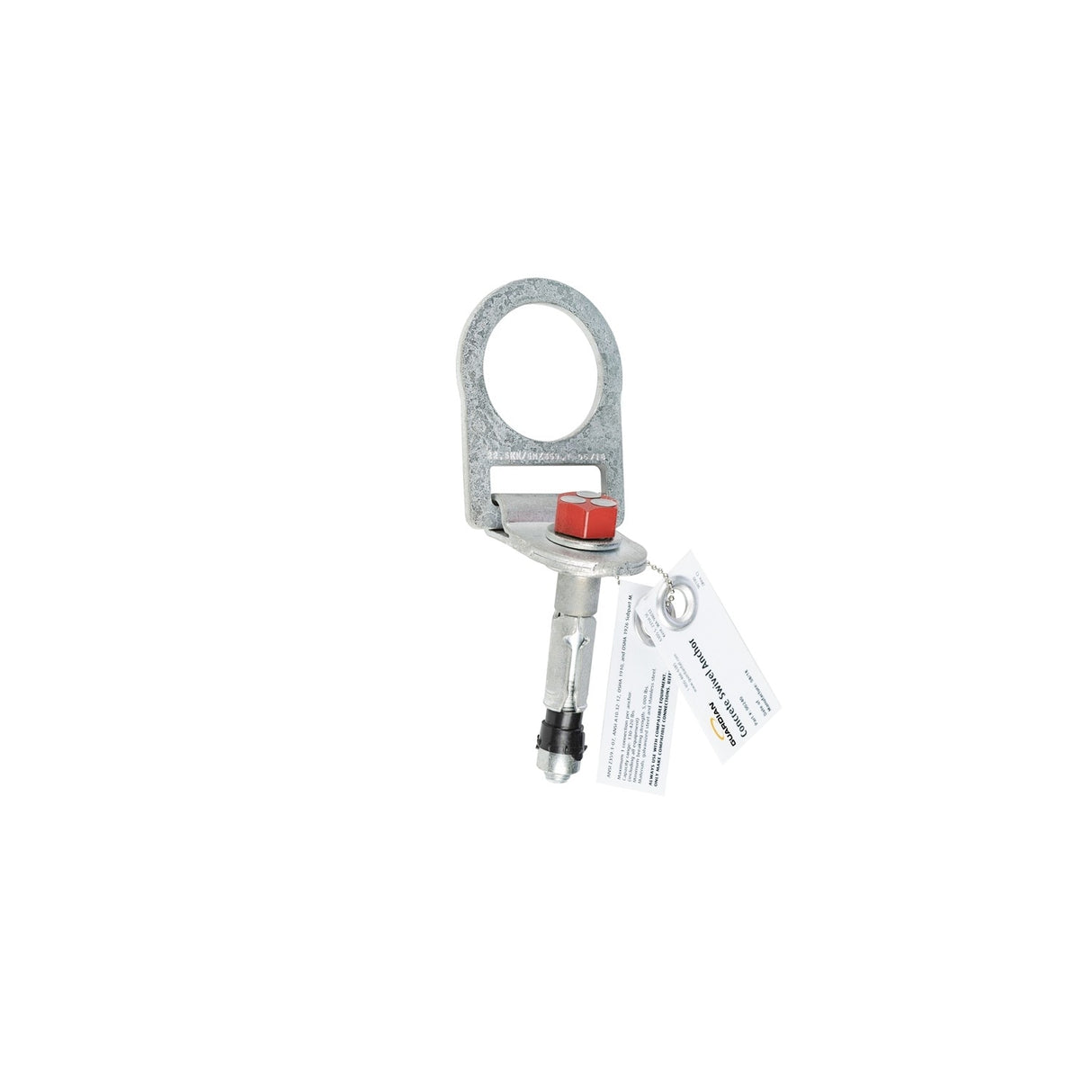

Guardian 00242 Description
The Guardian 5K Concrete Swivel Anchor Kit is a fall protection anchorage connector designed for concrete substrates. It provides 360-degree mobility with a full-size D-ring for easy tie-off and uses a visual torque indicator for quick installation without a torque wrench. The anchor can be removed after the job is complete and reused with a new anchor bolt.
Guardian 00242 Includes
- (1) Concrete Swivel Anchor Kit
Guardian 00242 Features
- Swivel action helps prevent twisted lifelines
- Designed for concrete substrates
- Provides 360-degree mobility
- Full-size D-ring allows easy connection while wearing gloves
- Visual torque indicator breaks away when proper torque is reached
- No torque wrench required for installation
- Removable after use and reusable with a new anchor bolt
- Galvanized steel construction with stainless steel components
- Compatible with horizontal lifelines
- Rated for 5,000 lbs tensile strength
- Meets OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017 requirements
Guardian 00242 Specifications
| Product Type | 5K Concrete Swivel Anchor Kit |
| Anchorage Connector Type | Concrete |
| Material | Galvanized steel and stainless steel |
| Color | Galvanized Steel |
| Weight Capacity | 130-420 lbs. |
| Tensile Strength | 5,000 lbs |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Country of Origin | United States |
| Product Height (in) | 6 |
| Unit Weight (lb) | 1.2 |
Toolup Part # :
17790
