Guardian 00135 Description

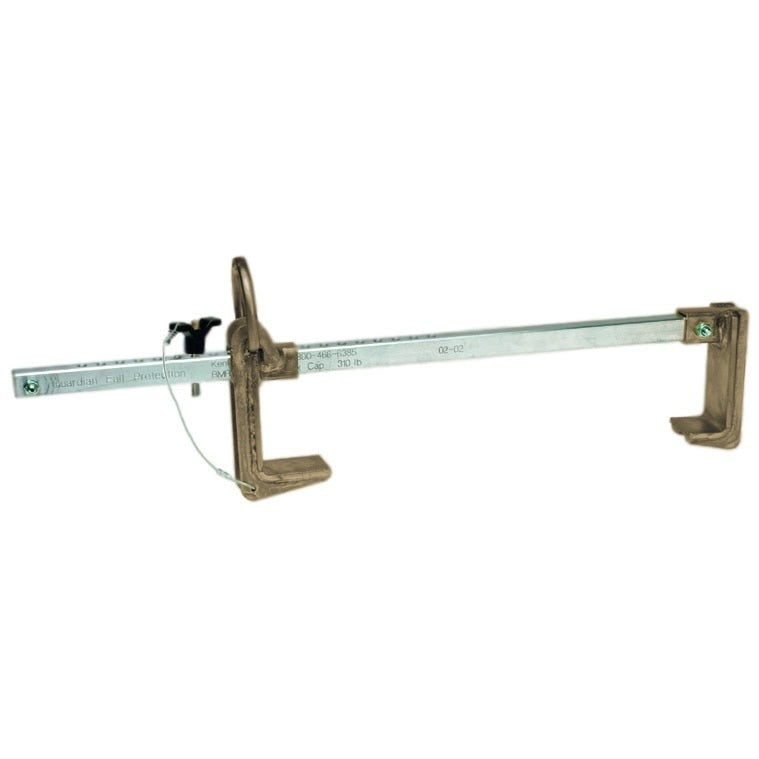

The Guardian Beamer Large Beam Clamp is a trailing fall arrest anchorage connector designed for use on the top or bottom flange of steel I or H beams. This large model fits 12 in. to 24 in. beams with flange thicknesses from 1/2 in. to 4 in. and features snag-free operation with durable components that resist welding slag and other contaminants.
Guardian 00135 Includes
- (1) Beamer Large Beam Clamp
Guardian 00135 Features
- Designed for use on the top or bottom flange of steel I or H beams
- Fits 12 in. to 24 in. beams with flange thicknesses from 1/2 in. to 4 in.
- Durable components resist welding slag and other contaminants
- Snag-free operation
- Rated for worker weights from 130 to 420 lbs.
- 5,000 lb tensile strength
- Complies with OSHA 1910.140, OSHA 1926.502, and ANSI Z359.18-2017
Guardian 00135 Specifications
| Product Type | Beam Clamp |
| Application | Fall arrest anchorage connector for steel I or H beams |
| Anchorage Connector Type | Steel |
| Beam Width Compatibility | 12 in. to 24 in. |
| Flange Thickness Compatibility | 1/2 in. to 4 in. |
| Weight Capacity | 130-420 lbs. |
| Tensile Strength | 5,000 lbs |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Product Length (in) | 32.5 |
| Product Width (in) | 6.6 |
| Product Height (in) | 14.2 |
| Product Weight (lb) | 8.4 |
Toolup Part # :
17787
