At a Glance
Beam Width Range
8 in-18 in
Material
Steel
Sold As
Individual
For Use On
Steel
For Use With
Magnetic Drill
Mount Type
Beam Clamp
Safety Rating
ANSI Z359.18, OSHA 1910.140, OSHA 1926.502
Description
Description
Guardian 00127 Description

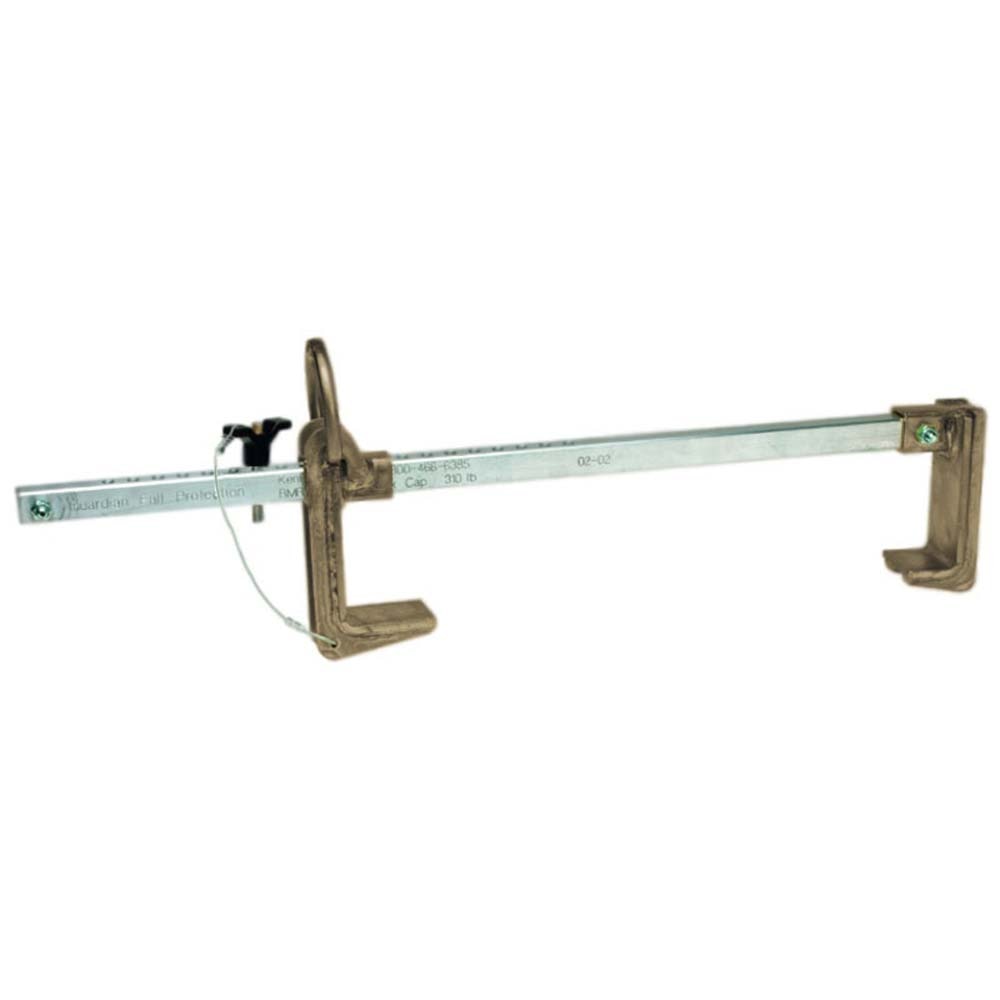

The Guardian Beamer Large Beam Clamp is a trailing fall arrest anchorage connector designed for use on the top or bottom flange of steel I or H beams. It fits 8 in. to 18 in. beams and features durable stainless steel construction with snag-free operation that resists welding slag and other jobsite contaminants.
Guardian 00127 Includes
- (1) Beamer Large Beam Clamp
Guardian 00127 Features
- Designed for use on the top or bottom flange of steel I or H beams
- Fits 8 in. to 18 in. beams
- Durable components resist welding slag and other contaminants
- Snag-free operation
- Trailing anchorage connector for fall arrest applications
Guardian 00127 Specifications
| Product Type | Beam Clamp |
| Application | Fall arrest anchorage connector |
| Compatible Beam Type | Steel I or H beams |
| Beam Width Compatibility | 8 in. to 18 in. |
| Material | Stainless Steel |
| Product Length (in) | 32.5 |
| Product Width (in) | 6.8 |
| Product Height (in) | 15 |
| Product Weight (lb) | 8.1 |
| Weight Capacity | 130-420 lbs. |
| Tensile Strength | 5,000 lbs |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Country of Origin | US |
Toolup Part # :
17689
