At a Glance
Weight Capacity
420 lb
Beam Width Range
6 in-16 in
Material
Aluminum
Sold As
Individual
For Use With
Magnetic Drill
Mount Type
Beam Clamp
Safety Rating
ANSI Z359.18, OSHA 1926.500, OSHA Compliant
Description
Description
Guardian 00103 Description

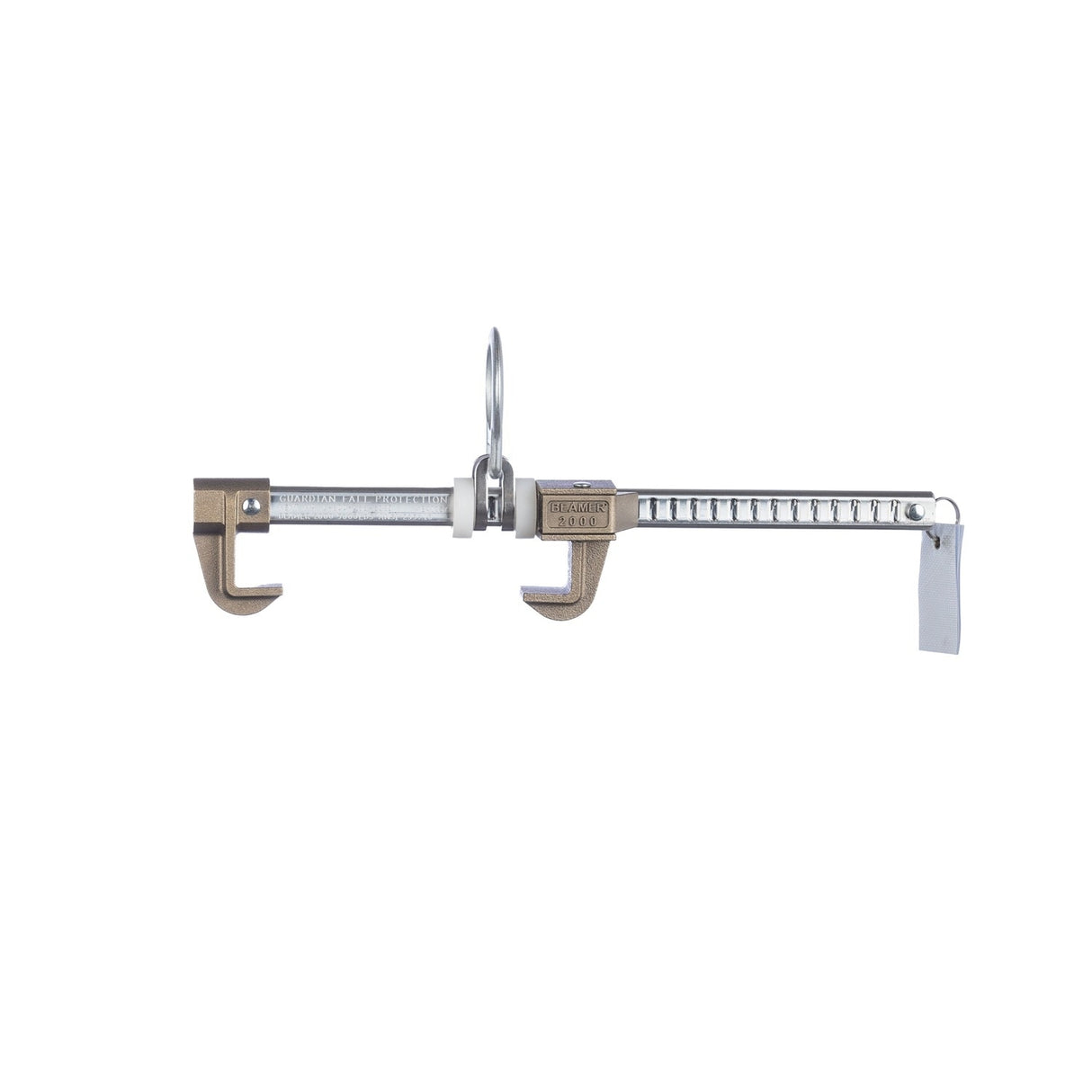

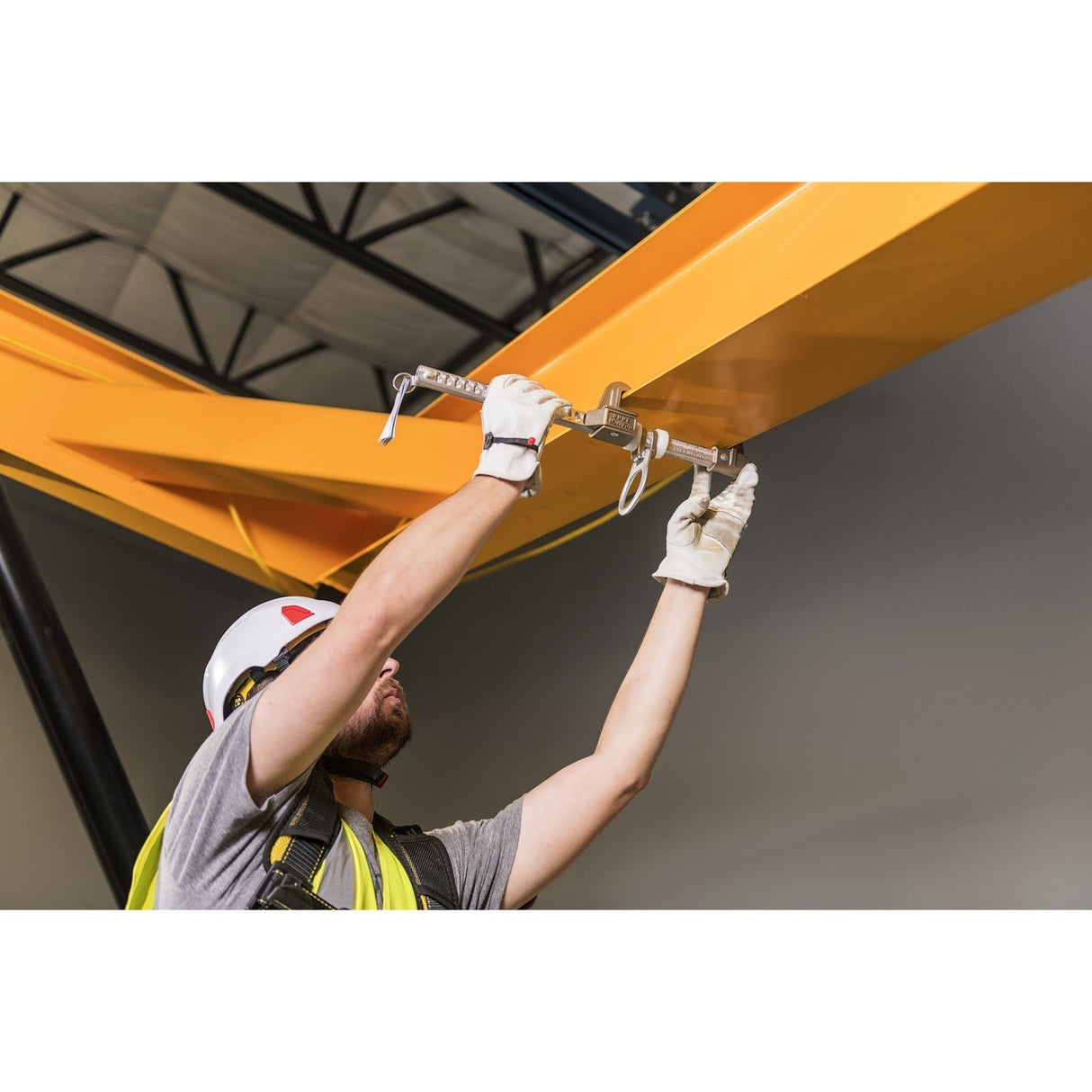

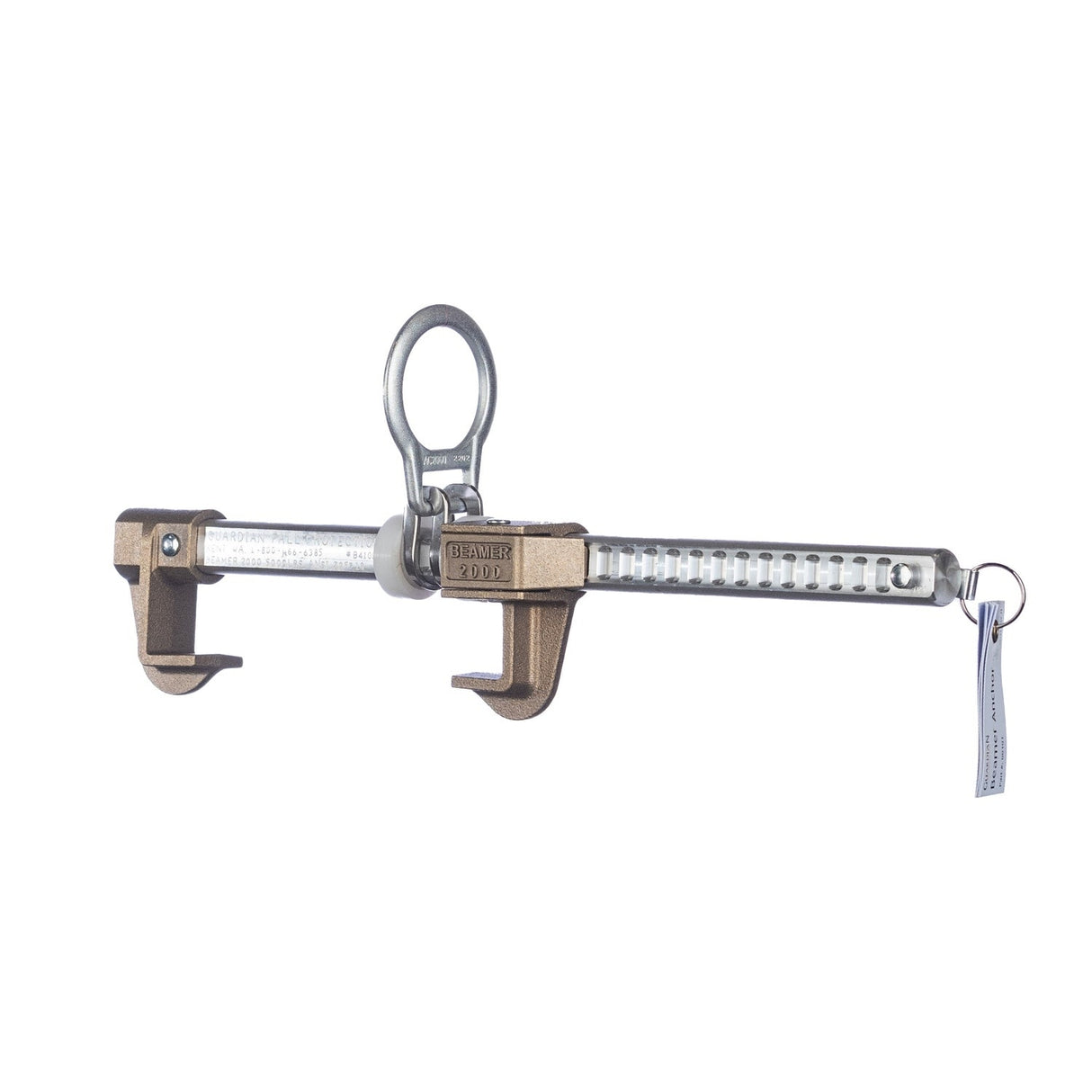

The Guardian Beamer 2000 is a trailing beam anchor for I and H structural beams that supports foot-level or overhead tie-offs, allowing workers to move along or under the beam without repositioning the anchor.
Guardian 00103 Includes
- (1) Beamer 2000 trailing beam anchor
Guardian 00103 Features
- Oversized locking lever provides positive grip and precise adjustment, even with gloved hands
- Bronze-manganese hooks slide smoothly along the beam and resist slag and other contaminants
- Fits beam widths from 6 in. to 16 in. with flanges up to 1-1/4 in. thick

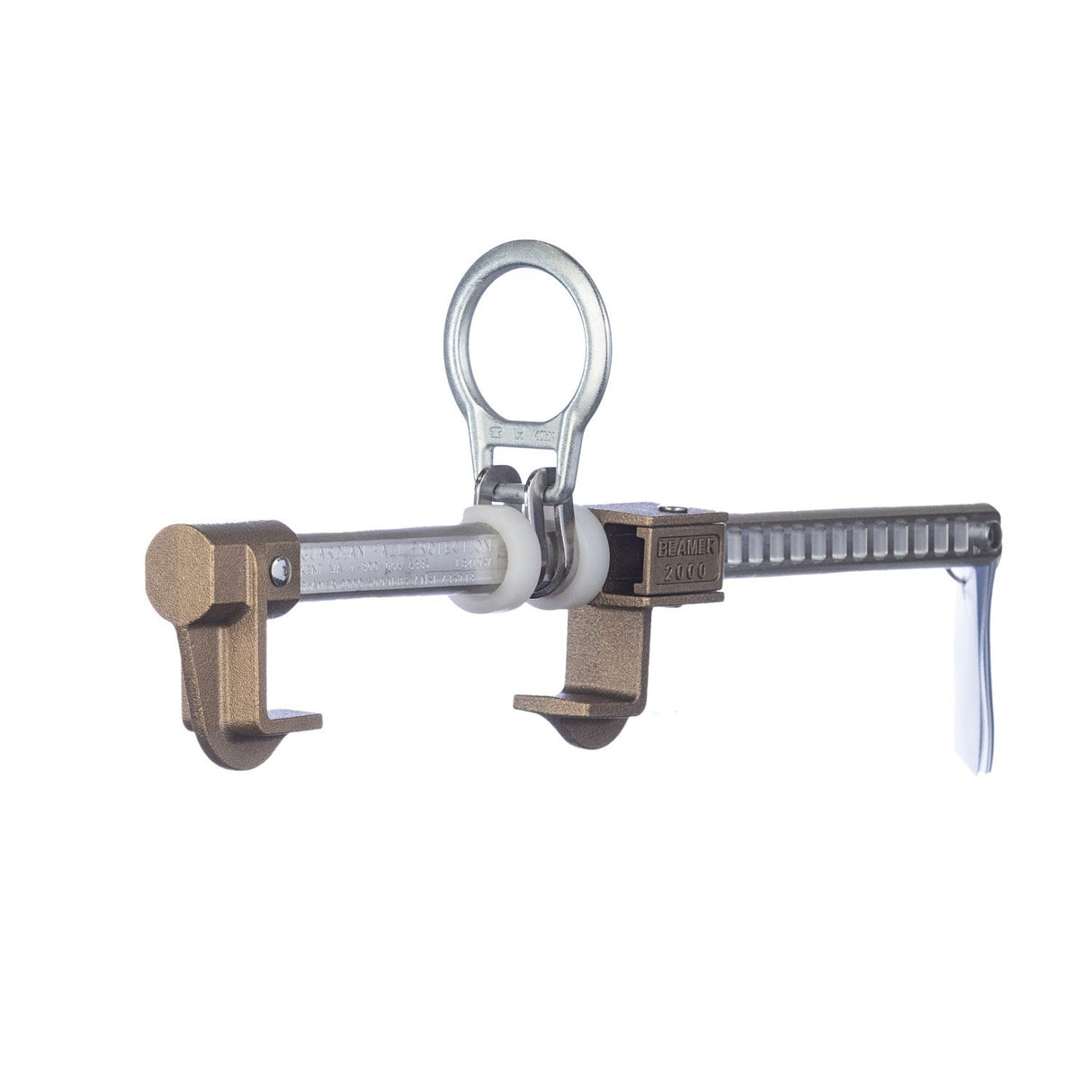

- Nylon bushings help the D-ring travel smoothly and act as an impact indicator after a fall
- Pivoting D-ring stays in an optimal working orientation as the user moves
Guardian 00103 Specifications
| Product Length (in) | 31 |
| Product Width (in) | 8.5 |
| Product Height (in) | 4 |
| Product Weight (lb) | 4.6 |
| Material | Aluminum |
| Construction | Stainless and galvanized steel, aluminum |
| Weight Capacity | 130-420 lbs. |
| Tensile Strength | 5,000 lbs |
| Beam Width Compatibility | 6 in. to 16 in. |
| Maximum Flange Thickness | 1-1/4 in. |
| Standards Compliance | OSHA 1910.140, OSHA 1926.502, ANSI Z359.18-2017 |
| Country of Origin | Taiwan |
Toolup Part # :
17586
