At a Glance
Punch Size
5 in
For Use On
Steel
Description
Description
Greenlee 743BB Features

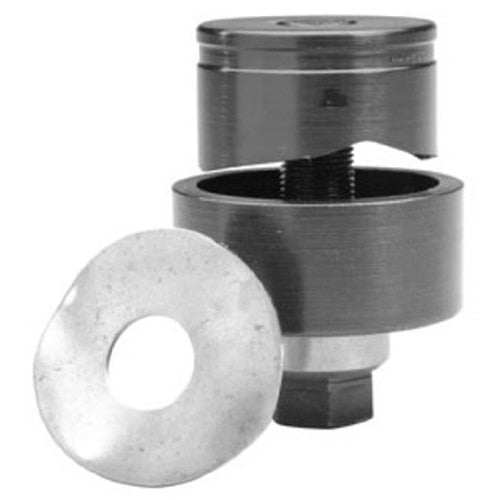

- Round Standard Metal Punch Units are complete units consisting of punch, die and draw stud.
- Properly assembled through pilot holes, they will make clean, fast and accurate holes.
Greenlee 743BB Specifications
| Punch: | 5135AV |
| Die: | 5136AV |
| Draw Stud: | 3026AV |
| Ball Bearing Nut: | 3036AVBB |
| Replacement Bushing: | 3037AV |
| Capacity: | Mild steel up through 10 gauge (3.5 mm) |
| Application: | Punch mild steel, aluminum, fiberglass and plastic. |
| Operation: | Operate with battery-powered, hydraulic, ratchet or manual drivers. When used with battery-powered, hydraulic or ratchet drivers buy the punch and die only; the draw stud is part of the driver kit. |
| Conduit Sizes: | Hole size is outside diameter of US conduit sizes. |
| Example: | 1/2" conduit size punch actually makes a 7/8" hole. |
| Pg Sizes: | European standard pipe sizes. |
| ISO Sizes: | International Standards Organization pipe sizes. |
Toolup Part # :
18833
