Special Order Details Available for Backorder
Part Number: KD3500 UPC: 032076813291 Weight: 3.5875

Description

INCLUDES:

• (1) Knockout Die



FEATURES:

• When used with GB 4-point punches the slug falls free from the die without the need for tapping or prying

• For 10-gauge mild steel and 12-gauge stainless steel

• Punches hole designed for 3.5 Inch pipe or conduit

• Actual hole diameter 4.043 inches



SPECIFICATIONS:

• For 10-gauge mild steel and 12-gauge stainless steel

• Punches hole designed for 3.5 Inch pipe or conduit

• Actual hole diameter 4.043 inches

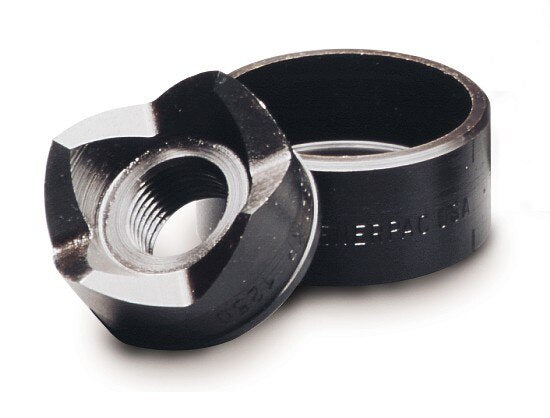

Gardner Bender dies are interchangeable, in any combination, with most brands of knockouts. Constructed from black oxide coated, hardened and tempered chrome-moly steel. Use this 3.5 Inch Die in combination with GB 4-point slug-outs to punch clean, round holes through 10-gauge mild steel, 12-gauge stainless steel or other soft metals up to .135 inches in thickness. Additional sizes available to specifically permit fast and easy installation of electrical conduit and pipe of nominal sizes 1/2" through 4", in all commonly available increments.
