In Stock
Part Number: 87-5 UPC: 095969245241 Weight: 1.08

Description

INCLUDES:

• TL75 Test Leads

• AC175 Alligator Clips

• Holster

• 9V Battery (Installed)

• 80BK Temperature Probe



FEATURES:

• Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment

• Built-in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument

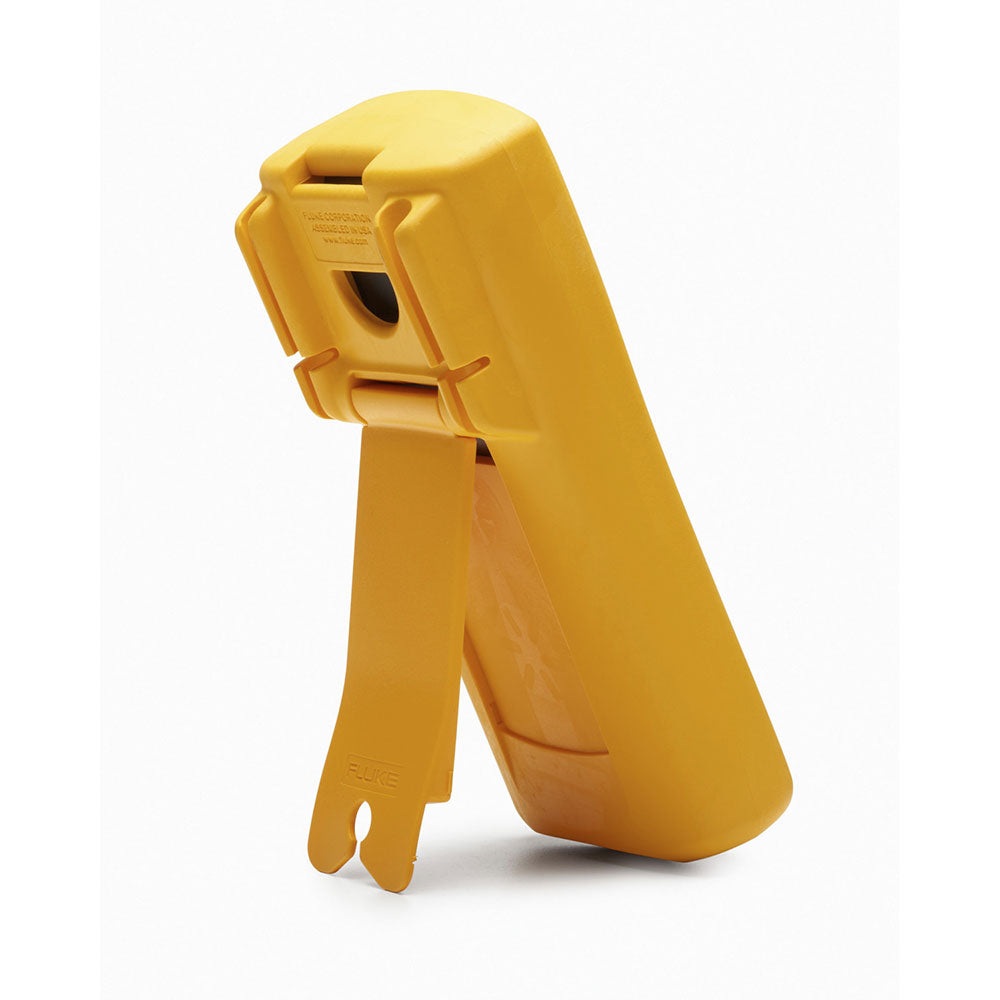

• Optional magnetic hanger for easy set-up and viewing while freeing your hands for other tasks

• Large digit display with bright, two-level backlight makes the 87V significantly easier to read than older models

• True RMS AC voltage and current for accurate measurements on non linear signals

• Selectable filter for accurate voltage and frequency measurements on motor drives

• 0.05% DC accuracy

• 6000 counts, 3-3/4 digits

• 4-1/2 digit mode for precise measurements (20,000 counts)

• Measure up to 1000 VAC and DC

• Measure up to 10 A, 20 A for up to 30 seconds

• Built in thermometer lets you carry one less tool (TC probe included)

• Frequency to 200 kHz and % duty cycle

• Resistance, continuity and diode test

• 10,000 µF capacitance range for components and motor caps

• Min/Max-Average recording with Min/Max Alert to capture variations automatically

• Peak capture to record transients as fast as 250 µs

• Relative mode to remove test lead interference from low ohms measurements



SPECIFICATIONS:

• Auto and manual ranging for maximum flexibility

• Touch Hold to capture stable readings avoiding noisy signals

• Large display digits and two-level bright white backlight for increased visibility

• Analog bargraph for fast changing or unstable signals

• Input Alert provides audible warning against wrong use of input jacks

• Improved selectable sleep mode for long battery life

• Access door for fast battery changes without breaking the calibration seal

• "Classic" design with new removable holster with built in test lead and probe storage

• Lifetime warranty





Deliver accurate frequency measurements on adjustable speed drives, captures intermittents as fast 250 µS.
