Part Number: 1507 UPC: 095969288675 Weight: 1.2

Description

Fluke 1507 Specifications:

•  AC/DC Voltage Measurement-

•  Range: 600.0V

•  Resolution: 0.1 V

•  Accuracy: 50 Hz-400Hz +/-(2%+3)

•  Input Impedance: 3MOhms (nominal), <100pF

•  Overload Protection: 600V rms or dc

•  Earth Bond Resistance Measurement-

•  Range/Resolution: 20.00 Ohms-0.01 Ohms;200.0 Ohms-0.1 Ohms;2000 Ohms-1.0 Ohms;20.00 kOhms-0.01 kOhms

•  Accuracy: +/-(1.5%+3)

•  Overload Protection: 2V rms or dc

•  Open Circuit Test Voltage: >4.0V, <8V

•  Short Circuit Current: >200.0 mA

•  Insulation Specifications-

•  Measurement Range: 0.01 MOhms to 10 GOhms

•  Test Voltage: 50V, 100V, 250V, 500V, 1000V

•  Test Voltage Accuracy: +20%, -0%

•  Short Circuit Current: 1 mA nominal

•  Auto Discharge: Discharge time <0.5 second for C+1 microF or less

•  Live Circuit Indicator: Inhibit test if terminal voltage > 30V prior to initialization of test

•  Max. Capacitive Load: Operable with up to 1 microF load

•  Measure Accuracy: 50V ±(3%+5); 100V ±(3%+5); 250V ±(1.5%+5); 500V ±(1.5%+5); 1000V ±(1.5%+5) to 2000MOhms,±(10%+3) above 2000 MOhms

•  Size: 1.97" H x 3.94" W x 8.00" L

•  Battery Requirement: (4) AA Batteries

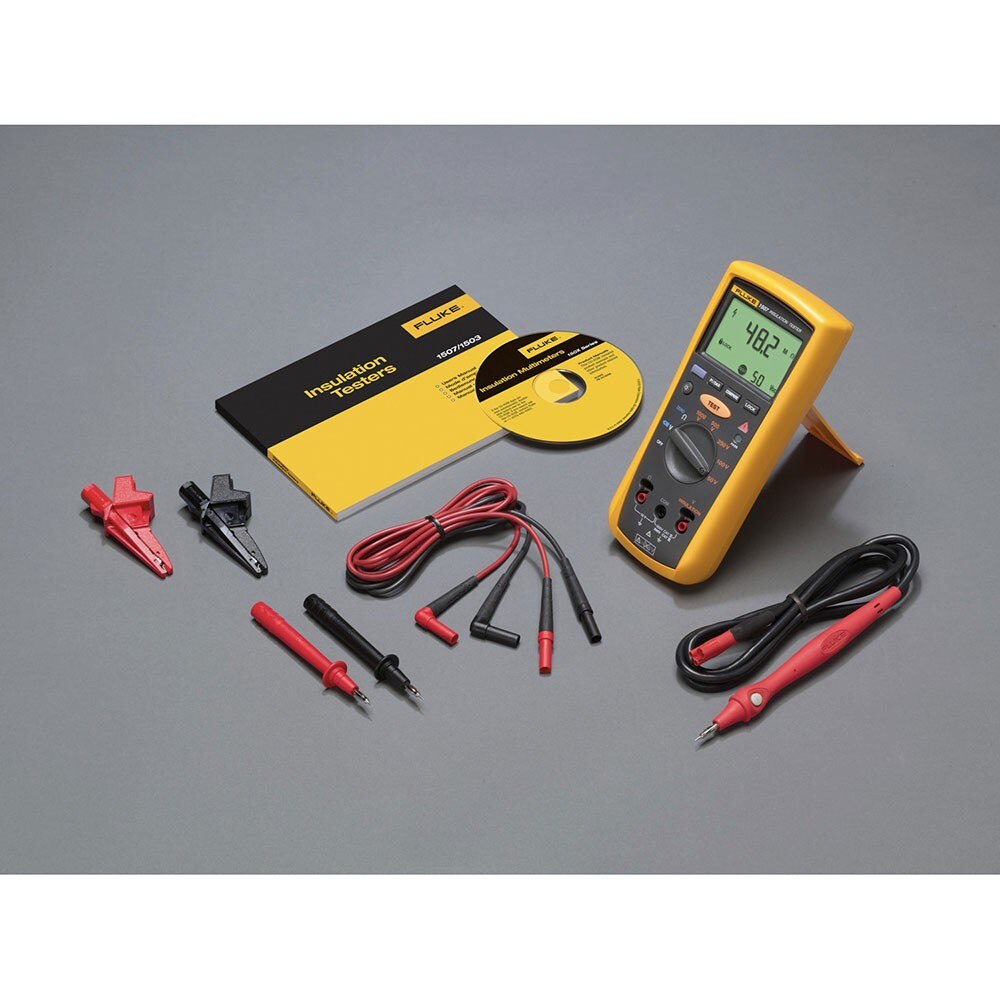

Fluke 1507 Includes:

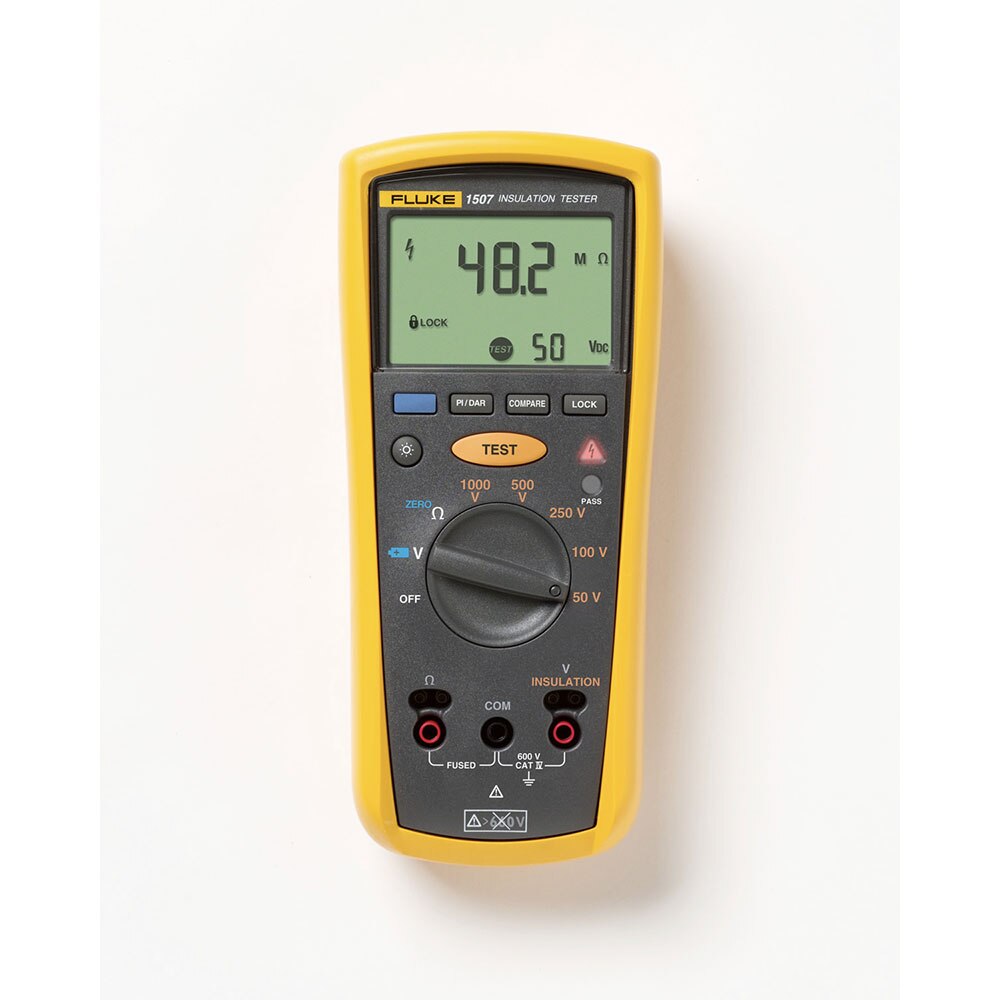

•  Insulation Tester

•  Remote probe

•  Test leads

•  Test probes

•  Alligator Clips

•  Holster

•  User documentation



Fluke 1507 Features:

•  Insulation test range: 0.01 MΩ to 10 GΩ

•  Insulation test voltages: 50 V, 100 V, 250 V, 500 V, 1000 V

•  Save both time and money with Automatic calculation of Polarization Index and Dielectric Absorption Ratio

•  Make repetitive tests simple and easy with the Compare (Pass/Fail) function

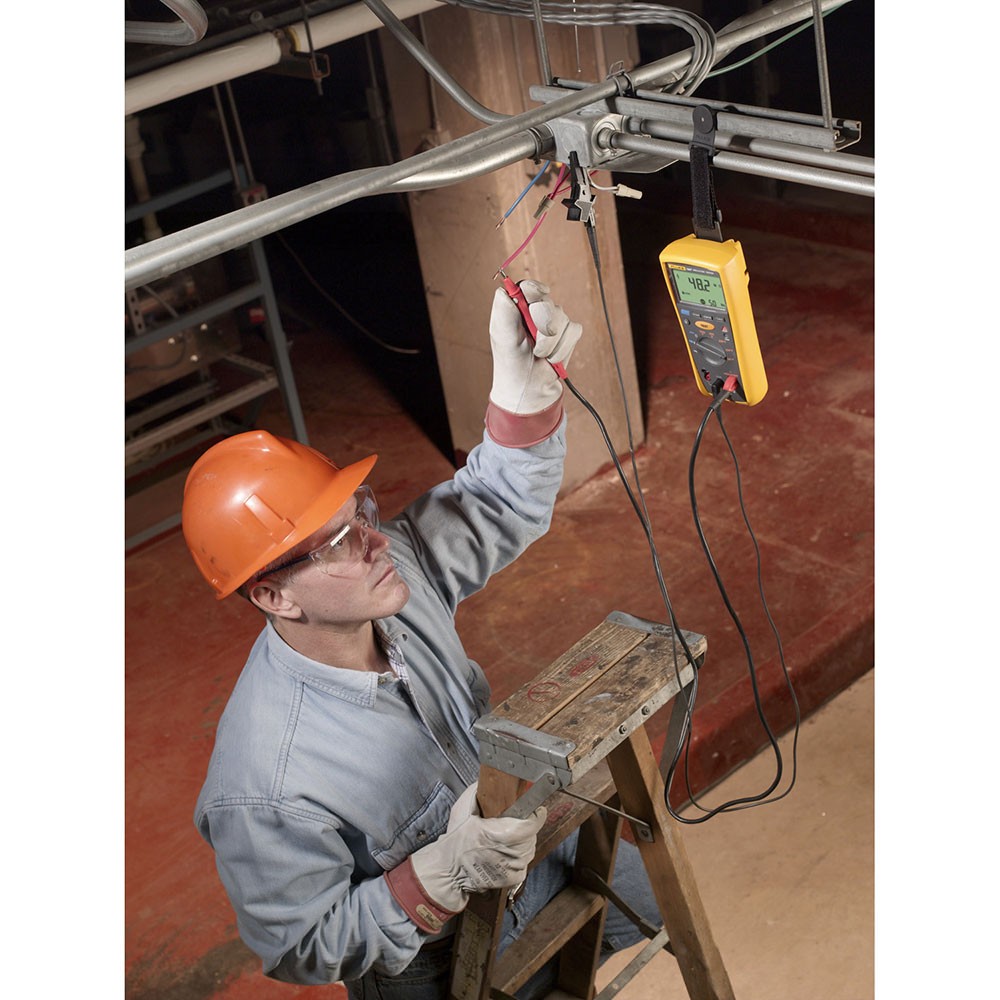

•  Repetitive or hard-to-reach testing is easy with the remote test probe

•  Live circuit detection prevents insulation test if voltage > 30 V is detected for added user protection

•  Auto-discharge of capacitive voltage for added user protection

•  AC/DC voltage: 0.1 V to 600 V

•  200 mA Continuity

•  Resistance: 0.01 Ω to 20.00 kΩ

•  Save battery power with auto power off

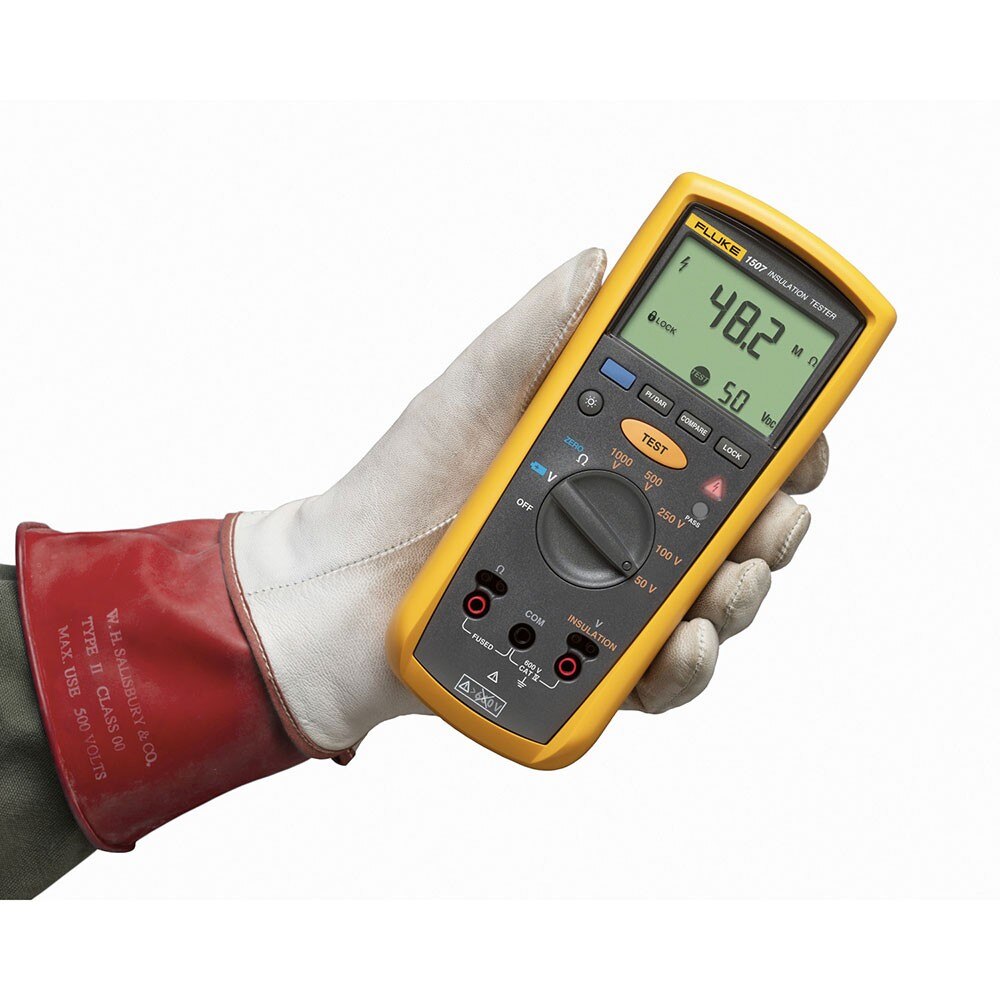

•  Read measurements easily with large, backlit display

•  CAT IV 600 V overvoltage category rating for added user protection

•  Accepts optional Fluke TPAK magnetic hanging system (not included) to free your hands for other work

•  Four AA alkaline batteries for at least 1000 insulation tests

•  One year manufacturer warranty
