In Stock
Part Number: DWS780 UPC: 885911231602 Weight: 66

Description

INCLUDES:

• Carbide Blade

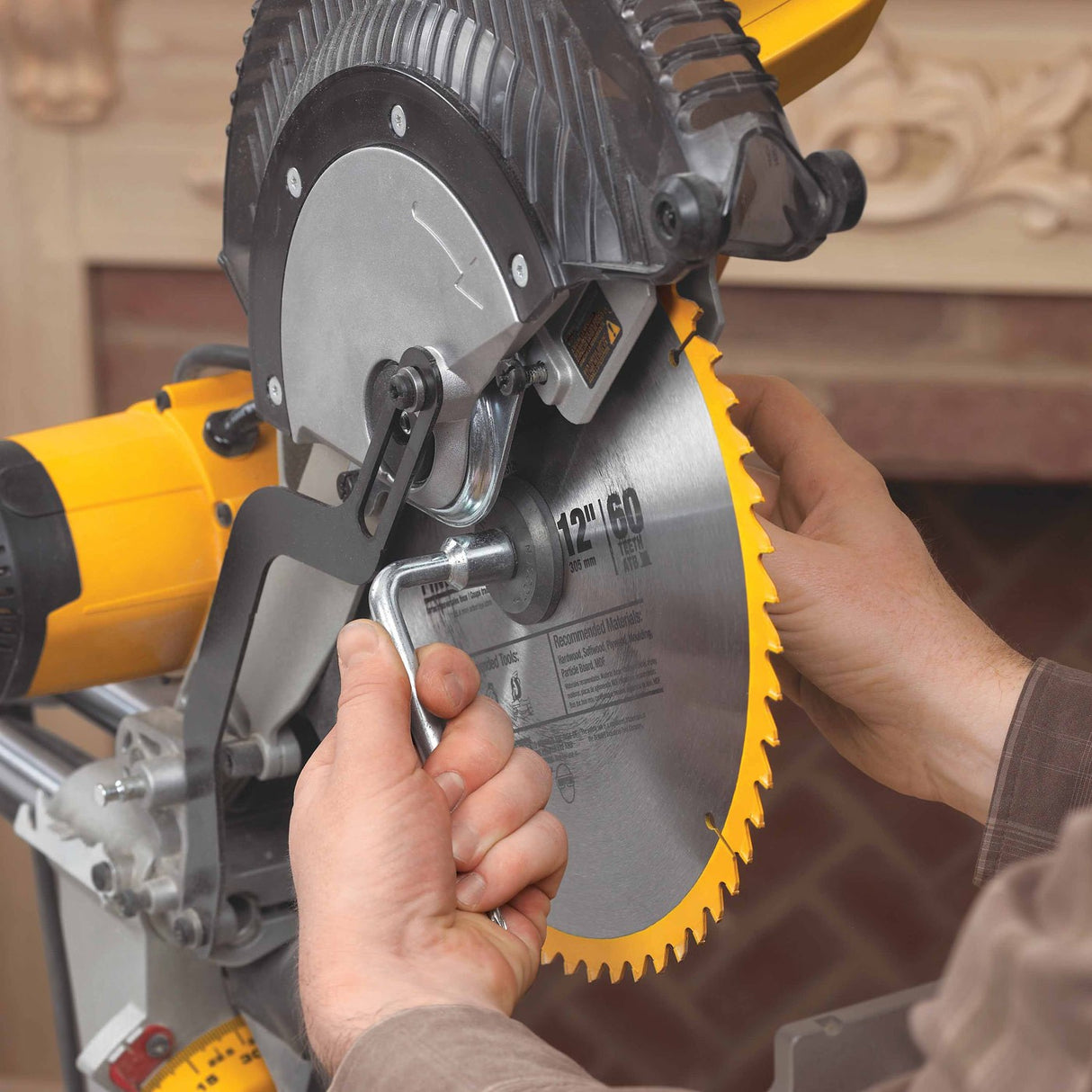

• Blade Wrench

• Dust Bag

• Vertical Material Clamp



FEATURES:

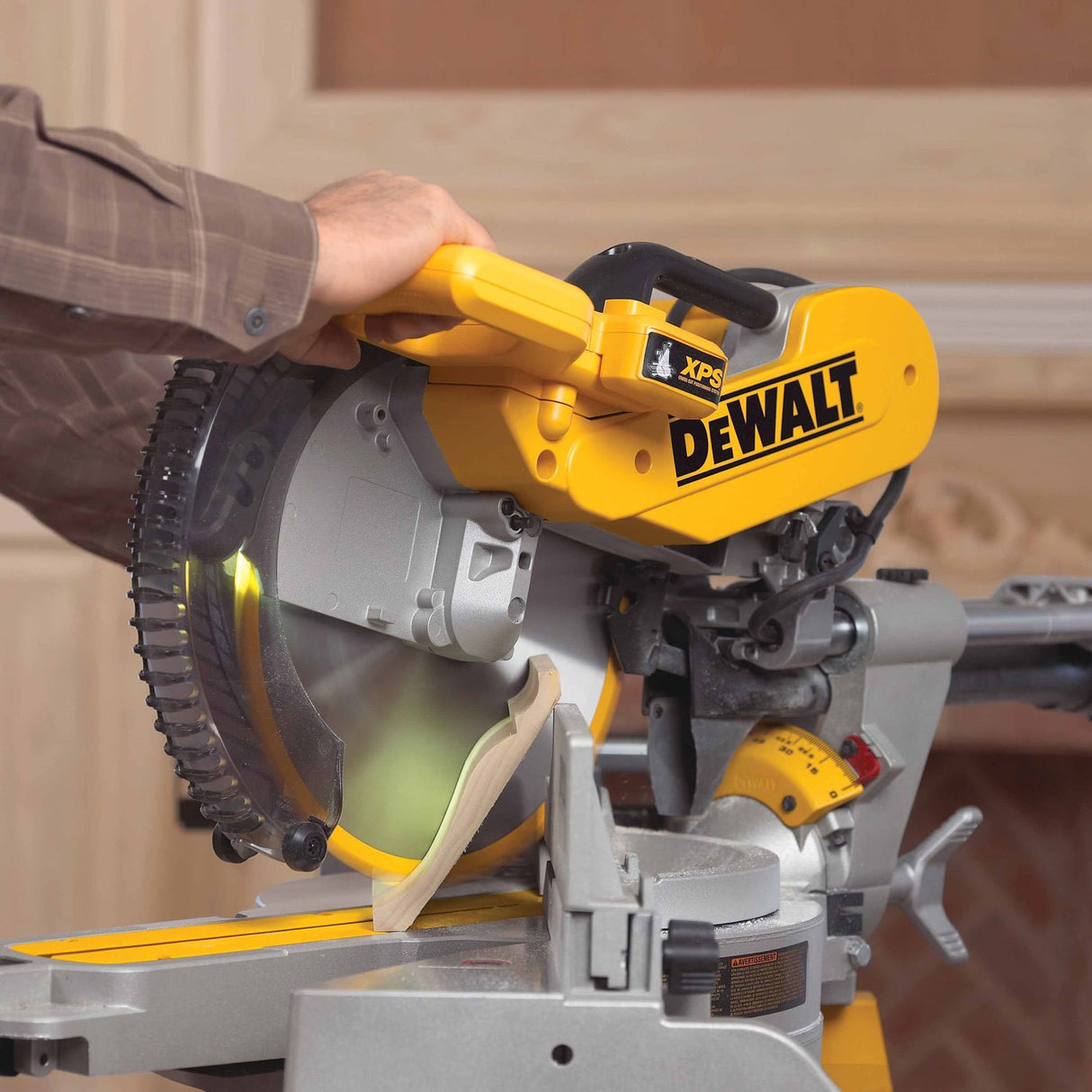

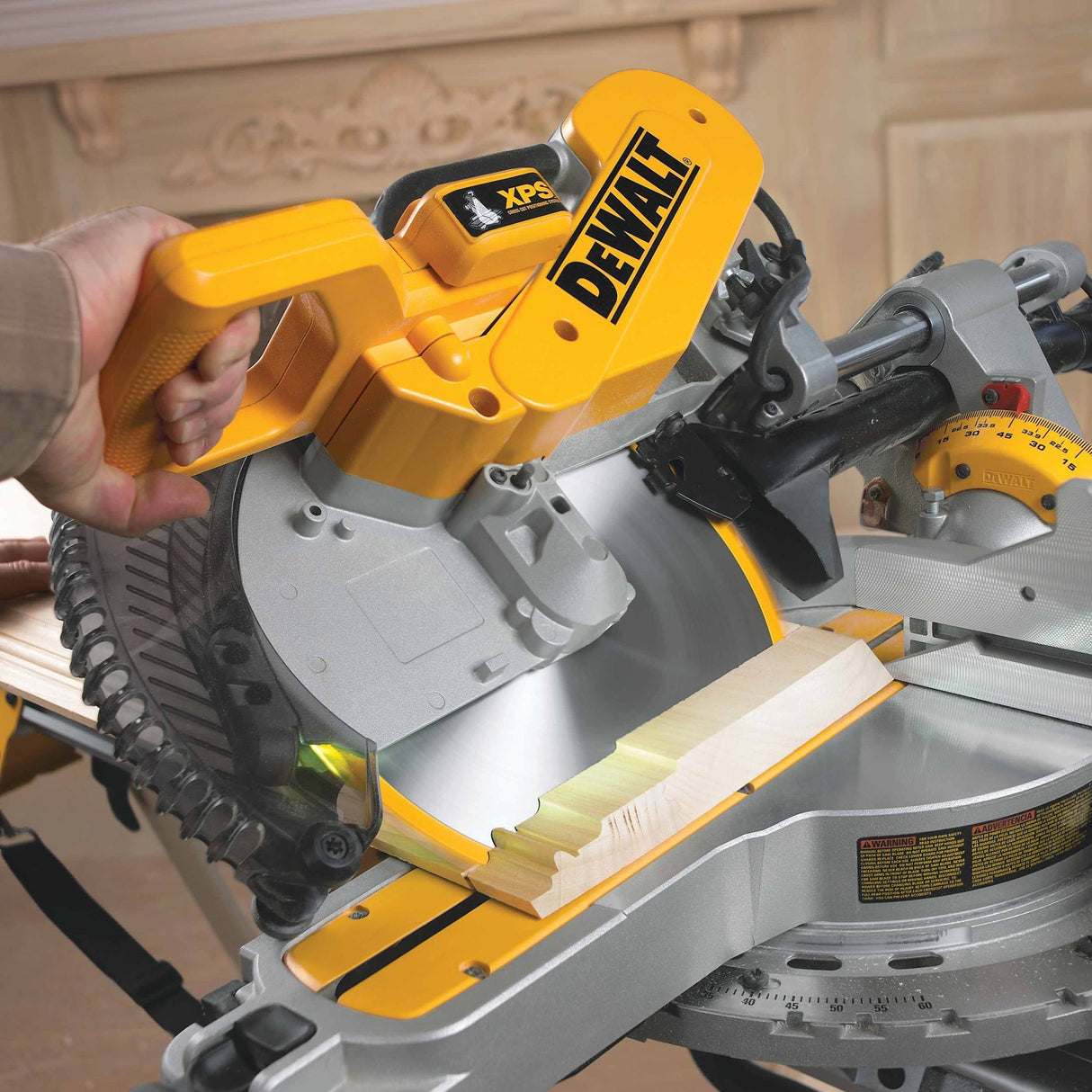

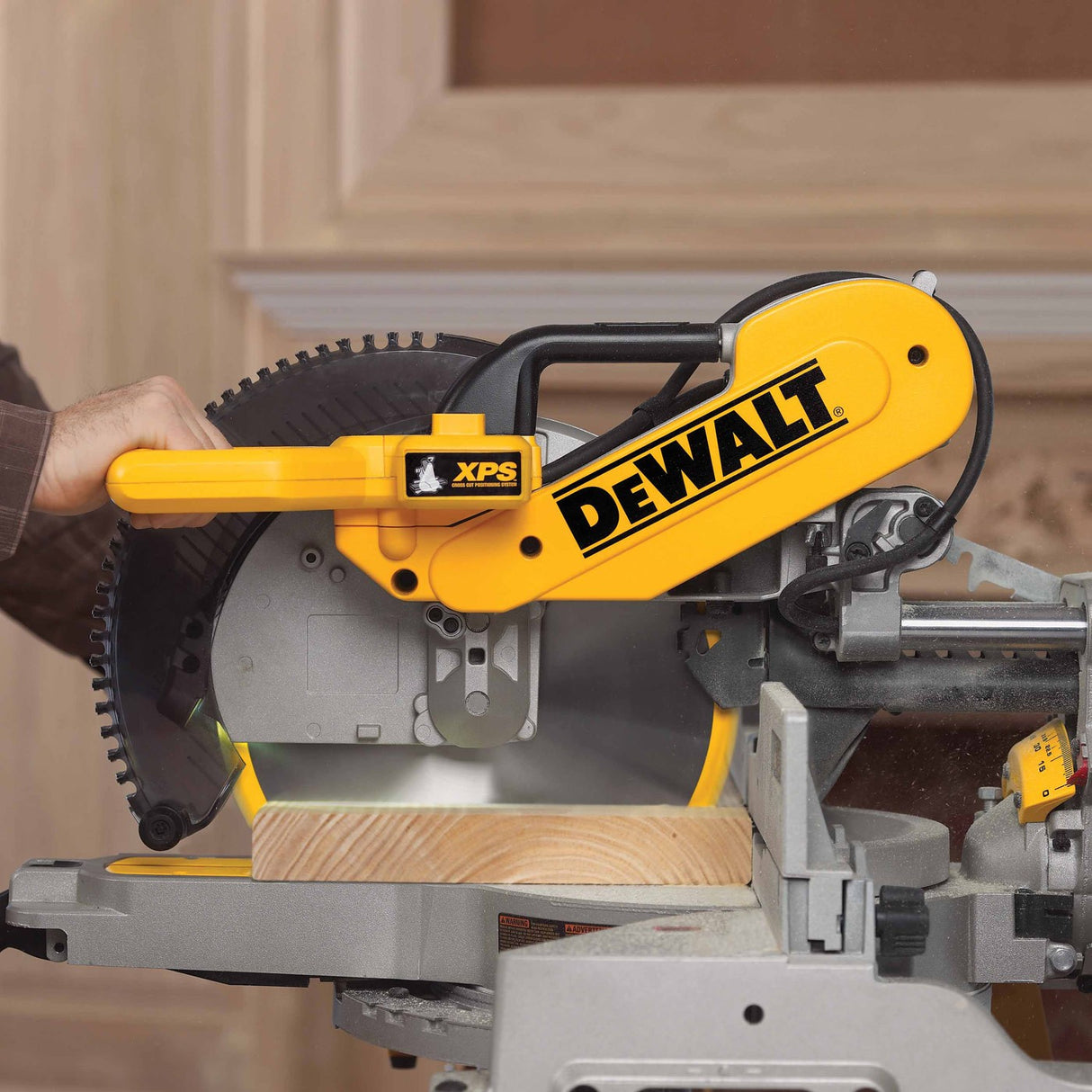

• Integrated XPS cross cut positioning system provides adjustment free cut line indication for better accuracy and visibility

• Powerful 15 Amp, 3,800 rpm motor delivers extended power and durability

• Super efficient dust collection system captures over 75% of dust generated

• Tall sliding fences support crown molding up to 7-1/2" nested and base molding up to 6-3/4" vertically against the fence while easily sliding out of the way for bevel cuts

• Exclusive Back Fence Design cuts up to 2x16 dimensional lumber at 90° and 2x12 at 45°

• Adjustable stainless steel miter detent plate with 10 positive stops improves productivity and ensures cutting accuracy

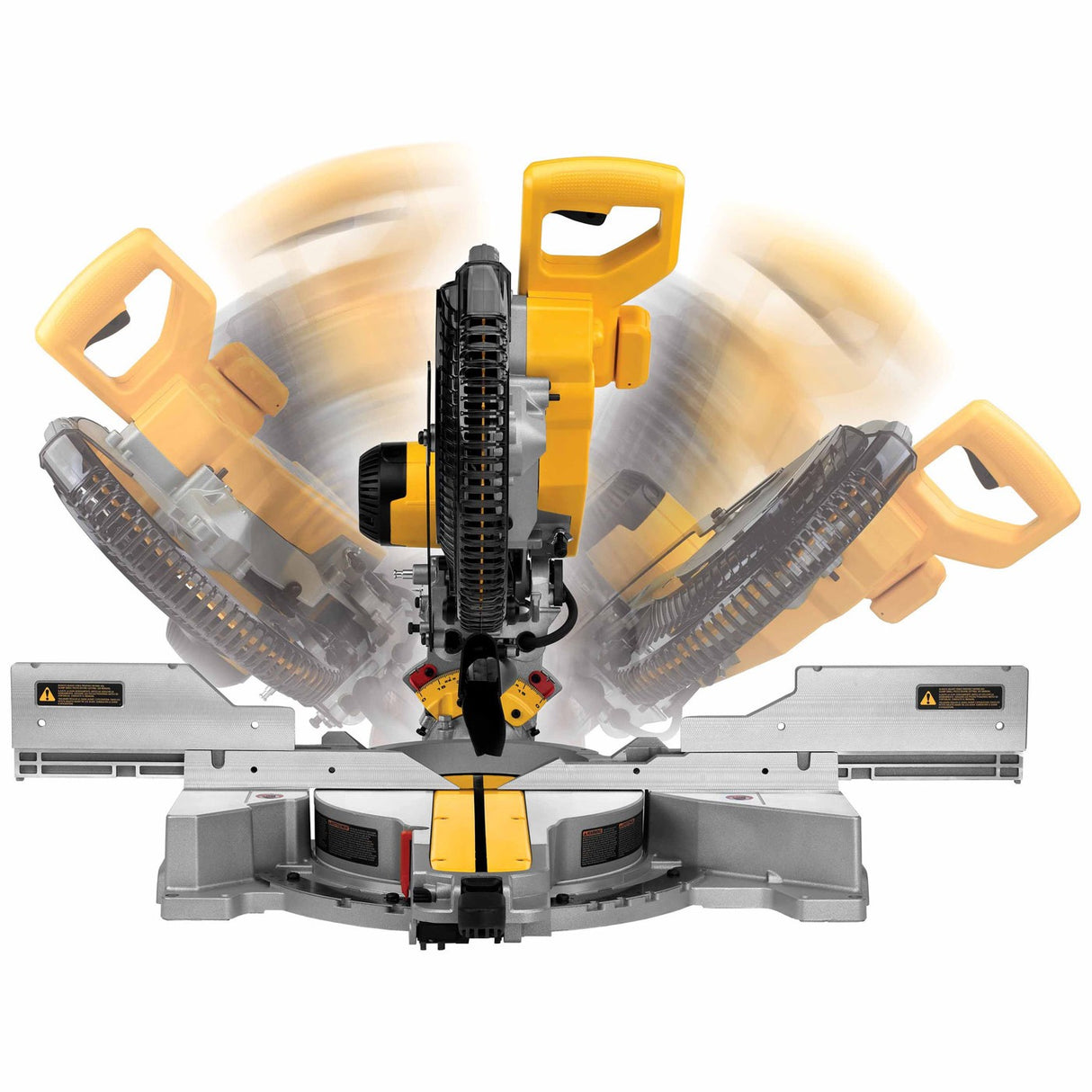

• Miters 60° to the right and 50° to the left providing increased capacity

• Oversized bevel scale makes bevel angle adjustments accurate and easy

• Compact, lightweight design (56 lbs.) allows for easy transport and storage

• Cam lock miter handle with detent override deliver quick and accurate miter angles

• Dual horizontal steel rails with innovative clamping mechanism and linear ball bearings deliver an accurate, durable and compact saw

• Innovative gearbox and belt-drive design increases vertical cutting capacity

• Precise miter system and machined base fence support optimize durability and cutting accuracy



SPECIFICATIONS:

• Blade Diameter: 12"

• Amps: 15 Amps

• No Load Speed: 3800 rpm

• Vertical Capacity (Baseboard Against Fence): 6-3/4"

• Vertical Capacity (Crown Molding Vertically Nested): 7-1/2"

• Horizontal Capacity (Baseboard Lying Flat): 16"

• Horizontal Capacity (Crown Molding Lying Flat): 13-3/4"

• 45° Bevel Cut Capacity (dimensional lumber): 2x14 (2x16 with back fence)

• 90° Cross-Cut Capacity (dimensional lumber): 2x14 (2x16 with back fence)

• 90° Cross-Cut Capacity (Max Width): 16"

• 45° Miter Cut Capacity (Max Height): 2x12

• 45° Miter Cut Capacity (Max Width): 2x12

• Tool Weight: 56lbs

• Shipping Weight: 66lbs
