Special Order Details Available for Backorder

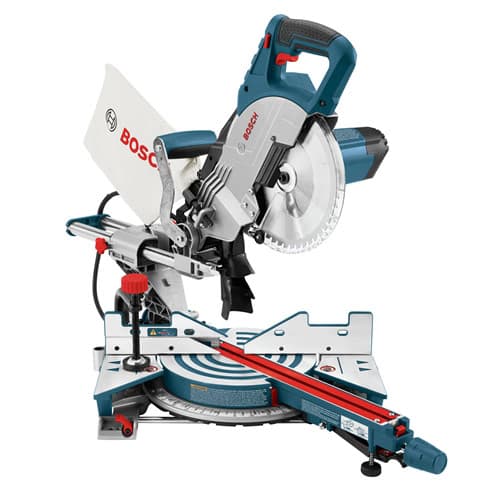

Part Number: CM8S UPC: 000346450248 Weight: 37

Description

INCLUDES:

• (1) 8" Coumpound Miter Saw

• (1) Dust Bag

• (1) Blade Change Wrench

• (1) 40T Carbide Tipped Blade



FEATURES:

• Ultimate portability – Bosch exclusive design delivers a well-balanced saw with a top carry handle, and a weight of only 37 lbs. easily provides one-handed portability on and off the job

• Easy access bevel controls - bevel lock lever and bevel turret stops are located on side of tool for quick and easy adjustments

• Integrated expanding base extensions - expands up to 29” left to right for additional work-piece support

• Large easy-to-read miter and bevel scales - uniform marks from 52° left to 60° right with 10 adjustable miter detents set at most common cuts

• Adjustable front stabilizing foot - maintains saw stability when performing slide cuts allowing maximum capacity: cross cut 12-1/4” at 0°, 8” at 45°, 2-3/4” upright, 3-1/2 crown

• Miter detent override - intuitive easy to access thumb-actuated override

• Ergonomic ambidextrous trigger handle - form fitting handle provides comfort for all day use

• Clear lower guard - for unobstructed view throughout the cut



SPECIFICATIONS:

• Amperage: 12

• Base Molding Against Fence: 2-3/4"

• Bevel Angle Range: -2° to 47°

• Bevel Stops: 0°, 22.5°, 33.9°, 45°

• Blade Diameter: 8-1/2"

• Cord Length: 6

• Crown Molding Angled Against Fence: 3-1/2"

• Cutting Capacity 45 Degree Miter: 2" x 6"

• Cutting Capacity 90 Degree Crosscut: 2" x 8"

• Height: 18

• Length: 32

• Miter Angle Range: 52° Left, 60° Right

• Miter Detents: 0°, 15°, 22.5°, 31.6°, 45°, (Left/Right) 60°, (Right)

• Miter Positive Stops: 0°, 15°, 22.5,° 31.6°, 45° (Left/Right)

• No Load RPM: 5600

• Voltage: 120V
