In Stock
Part Number: 1617EVS UPC: 000346304732 Weight: 10.5

Description

Bosch 1617EVS Specifications:

•  Amperage: 12

•  Max. Motor HP: 2.25

•  Collet Capacity: 1/4", 3/8", 1/2", 8mm

•  No Load RPM: 8,000 - 25,000

•  Base Diameter: 6"

•  Base Opening: 3-3/4"

•  Rating: 120V

•  Cord Length: 10'

•  Subbase Opening: 2"

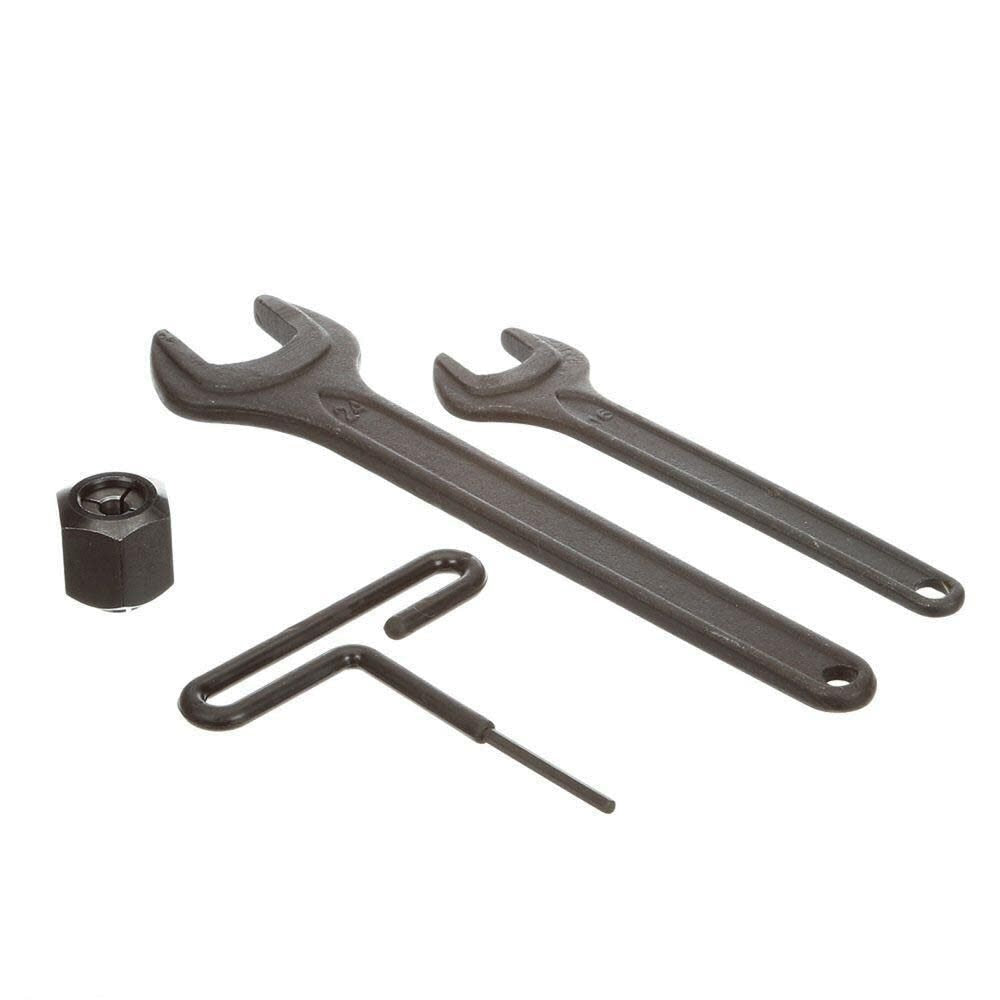

Bosch 1617EVS Includes:

•  (1) 1/4" S. R. Collet Chuck

•  (1) 1/2" S. R. Collet chuck

•  (1) 16mm Shaft Wrench

•  (1) Collet Nut Wrench

•  (1) Tool-Free Templet Guide Adapter

•  (1) Chip Shield

•  (1) 10' Flexible Rubber Cord

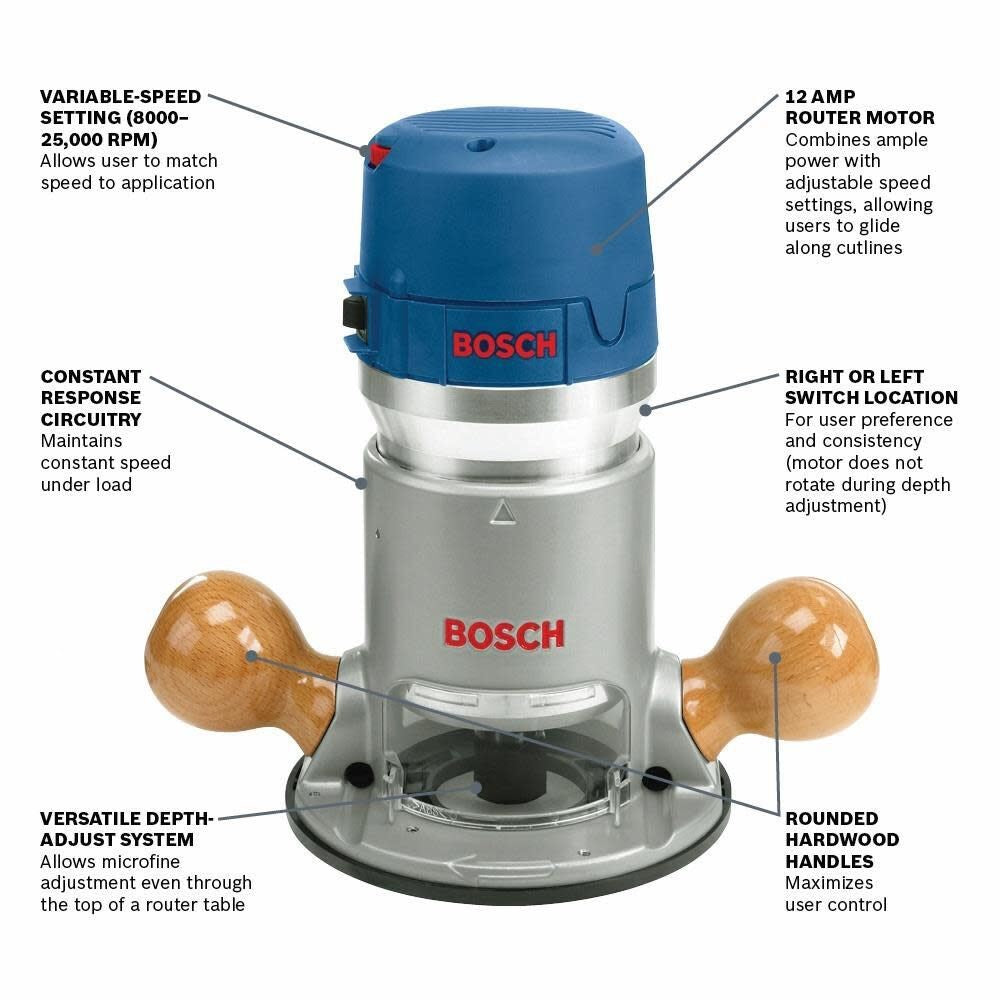

Bosch 1617EVS Features:

•  Variable speed dial For matching speed to workpiece and task

•  Coarse and microfine bit depth adjustment system with resettable depth indicator for fast, precise depth adjustment

•  Tool-free templet guide adapter for fast and easy templet guide changes

•  Large 3-3/4" base opening plus 2" subbase opening Accepts large bits

•  Exclusive Precision Centering Design centers bit precisely Makes it easy to keep bit on intended cutline when using jigs, templets, dovetail fixtures and similar guidance devices

•  Right or left switch location For user preference and consistency (motor does not rotate during depth adjustment)

•  Soft start Reduces start-up torque

•  Constant Response Circuitry maintains constant speed under load, provides overload protection

•  Double insulated

•  Base has threaded holes for mounting to router table positioned in Bosch 4-hole pattern and common 3-hole pattern.

•  Used on Model No.: RA1171, RA1180, RA1181, RA1182, RA1200 Router Tables (sold separately)
